|Place of Origin:||China|
|Model Number:||BR275-40 2P|
|Minimum Order Quantity:||100 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Lightning Surge Arrester||Type:||Ac Surge Protector|
|Pole Number:||2P||Uc:||150V / 275V / 320V / 385V / 440V|
|Tu:||-40℃-80℃||Application:||Surge Protective Device Is Suitable For Single-phaseTN System|
lightning surge arrester,
type 2 surge protector

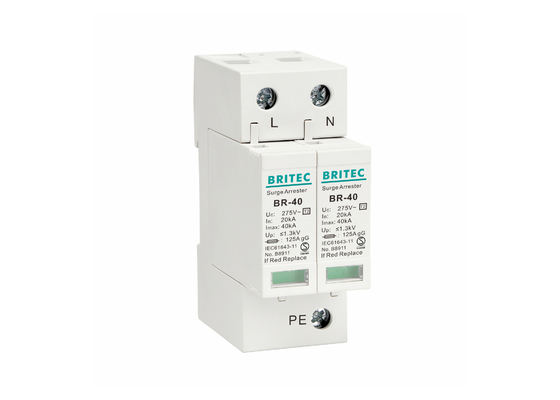

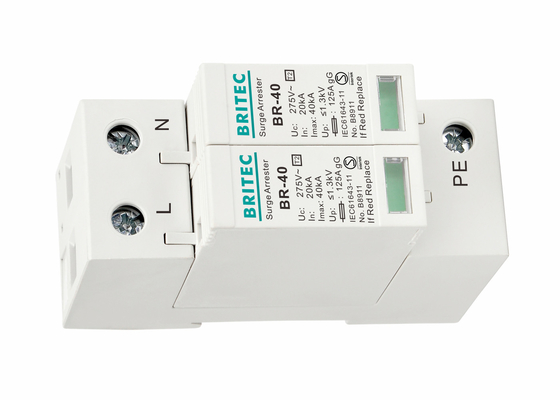

275V Single Phase Type 2 Surge Protection Device TUV BR275-40 2P
• Protecting low-voltage consumers' installations against indirect lightning discharges
• High performance varistor with thermal disconnection tripping device
• Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
• Protection class: Type 2, Class II
• Pole number: 2P
• Surge areeare used to guard sensitive equipments from voltage spike
Single Phase Type 2 Surge Protection Device Technology characteristic:
|Item name||Surge Arrester|
|SPD dassification according to EN61643-11||Type 2|
|SPD dassification according to IEC61643-11||Class II|
|Max continuous 0perating a.c. voltage Uc||275V|
|Max. discharge current (8/20µs) Imax||40kA|
|Norminal discharge current (8/20µs) In||20kA|
|Voltage protection level Up||≤1.3kV|
|Max. backup fuse||125A gG|
|Response time tA||≤25ns|
|For mounting on||35mm Din rail|
|Degree of protection||IP20|
|Operating temperature range Tu||-40℃—80℃|
|Cross-section area (Min.)||4mm²|
|Cross-section area (Max.)||35mm²|
|Enclosure material||Thermal plastic UL94-V0|
One Phase Type 2 Surge Protection Device Application:
BR275-40 series power surge protector is designed and manufactured according to IEC61643-11 and GB18802.1 standards. The product has high lightning current discharge capacity, up to 40kA (8/20μS), which can prevent indirect lightning strikes and other surge current. This product can be mounted on a standard 35mm DIN rail mounting, it has high safety factor and long service life, it can be applied to single-phase power supply in the class II lightning protection of equipment and power system with high lightning risk.
Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. If the goods are not in stock, need to negotiate.
Q3: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples, but it is not free.
Q4: What is your terms of payment?
A: 100% T/T before shipping. If large quantity, could negotiate.
