| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR275-40 1P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Type: | Ac Surge Protector |
|---|---|---|---|
| Material: | Plastic | Place Of Origin: | Zhejiang, China (Mainland) |
| Pole Number: | 1P | Brand Name: | Britec |
| Protection: | IP20 | Certificate: | TUV/CE/ROHS/ISO9001 |
| Tu: | -40℃-80℃ | Application: | Surge Protective Device Is Suitable For Single-phaseTN System |
| In: | 20kA | Order Code: | B8911 |

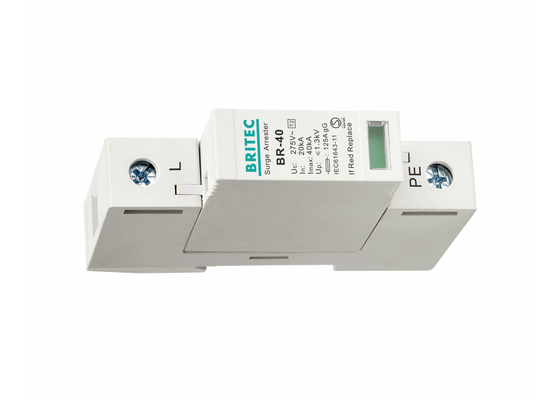

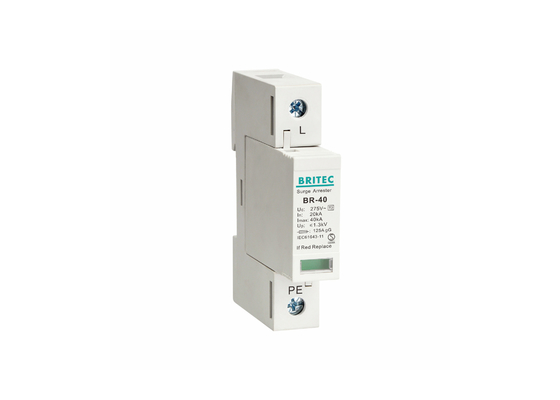

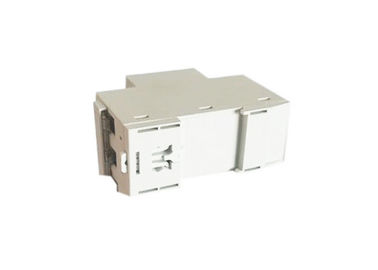

275V 1 Phase Type 2 Surge Protection Device TUV Approved BR275-40 1P
Application:
The modular devices of the BR275-40 product line are coordinated lightning current arresters with a
patent design.
Energy coordination with Type 2 surge arresters of the BR275-40 family is ensured without additional
cable lengths or decoupling coils. This is one of the most important features of the our product line.
The Type 2 arresters combine high performance and user-friendliness in a single device. Their
electrical parameters were rated for the most stringent requirements within lightning and surge
protection systems.
BR275-40 Mis ideally suited for use in the main distribution board of the low-voltage consumer’s
installation of a building. Equipped with the latest multi spark gap technology, the protection and
availability of electrical installations is a top priority of BR275-40 SPDs.
Due to the unique follow current limitation and extinction, fuses are not tripped by follow currents even
in case of low-value fuses in the installation.
The modular BR275-40 arresters are safe and user-friendly.
Nevertheless, the protection modules can be easily replaced by unscrew the module from the busbar.
Operating state of the device can be seen on the led light. When the product is normal, the green light
is on, and when the product is fault there will be no green light. The remote signal can be used as a
make contact.
- Class II / Type 2 lightning protective device.
- Consisting of a base part and 4 MOV plug-in protection modules.
- For using in the lightning protection zones concept at boundary 1-2.
- The core parts are metal oxide vristor components with high discharge capacity.
- Low residual voltage and quick response.
- Reliable control thanks to Thermo Dynamic Control disconnector.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.
- Protection mode: L/N-PE.
Technology characteristic
| Specification | BR275-40 1P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to EN61643-11 | Class 1 |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 20kA |
| Norminal discharge current (8/20µs) In | 20kA |
| Voltage protection level Up | ≤1.3kV |
| Follow current extinguishing capability a.c. lifi | 2.5kA rms |
| Max. backup fuse | 125A gL |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CB/CE/ROHS/ISO9001 |
| Logo | Customized logo available |
| Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
