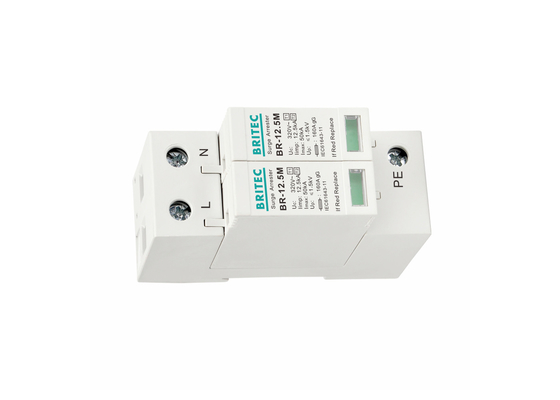

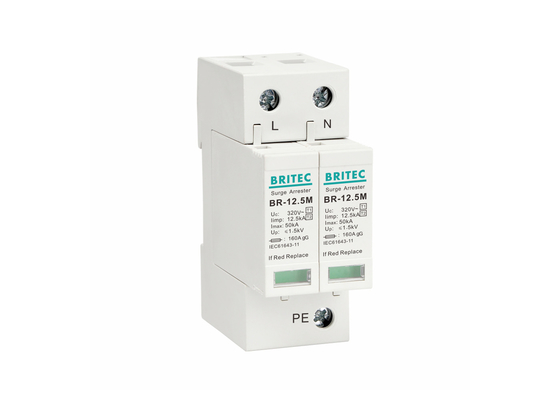

Single Phase Type 1 Surge Protection Device 2P Pole High Performance

Single Phase Type 1 Surge Protection Device 2P Pole High Performance

    • Single Phase Type 1 Surge Protection Device 2P Pole High Performance
    • Single Phase Type 1 Surge Protection Device 2P Pole High Performance
  • Single Phase Type 1 Surge Protection Device 2P Pole High Performance

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: TUV
    Model Number: BR-12.5M 320 2P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Surge Arrester Type: Ac Surge Protector
    Material: Plastic Pole Number: 2P
    Brand Name: Britec Certificate: TUV/CE/ROHS/ISO9001
    Tu: -40℃-80℃ UC: 320V
    In: 20kA Up: 1.5kV

    320V Single Phase Type 1 Surge Protection Device TUV Certificated BR-12.5M 2P



    Features:

    • • Width 18mm/pole.
      • Iimp: 12.5kA.
      • Indication window for clear display of SPD status, each pole with one indication window.
      • Remote indication to alert that a module needs replacement.
      • Protection mode: L, N, PE.
      • BR-12.5M series are composite 1 + 2 / I + II surge protectors designed in accordance with
    •   EN / IEC 61643 standard to relieve lightning current and limit surge over voltage.



    Technology characteristic:



    Specification BR-12.5M 320 2P
    Item name Surge Arrester
    SPD dassification according to EN61643-11 Type 1 + Type 2
    SPD dassification according to EN61643-11 Class I + Class II
    Max continuous 0perating a.c. voltage        Uc 320V
    Lightning impulse current (10/350µs)        limp 12.5kA
    Norminal discharge current (8/20µs)             In 20kA
    Max discharge current (8/20µs)                Imax 50kA
    Voltage protection level                               Up 1.5kV
    Max. backup fuse 315A gL
    Response time                                              tA ≤25ns
    For mounting on 35mm Din rail
    Degree of protection IP20
    Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
    Certificate CB/CE/ROHS/ISO9001
    Logo Customized logo available
    Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)



    Dimension:



    Single Phase Type 1 Surge Protection Device 2P Pole High Performance



    Application:



    • Used to AC power line of house, bank, telecom tower and so on.
    • Suitable for the first level protection of the power supply line in the indoor distribution cabinet of the
      power supply line and the outdoor power supply line exposed to the direct lightning hazard area (LPZ0)
      with the external lightning protection system.
    • Application-optimised prewired combined lightning current and surge arrester for TN systems.
    • For compact and simply equipped electrical installations with reduced technical requirements.

    Advantage:

    • Special design for saving installation space.
    • High discharge current.
    • Pluggable module, convenient for maintenance.
    • DIN rail and panel mount options offer installation flexibility.
    • With high discharge capacity.
    • Low residual voltage and quick response.

    Our Services:

    • 15 years global leading profession manufacture of electrical products surge arrester.
    • All products will be well packed before shipping.
    • Standard packaging, and you can also tell us your own requirements on packaging.
    • Faster delivery.
    • Individually Tested Prior to Shipment.

    Installation:

    • Installed in low-voltage distributions at the boundary of LPZ 0–LPZ 1 zones and higher to prevent
      overvoltage effects induced during a lightning strike and to prevent switching overvoltage.
