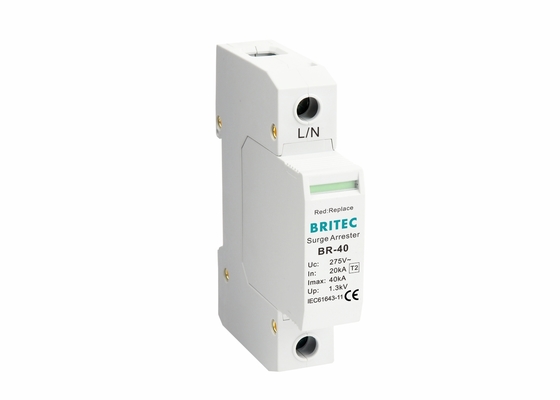

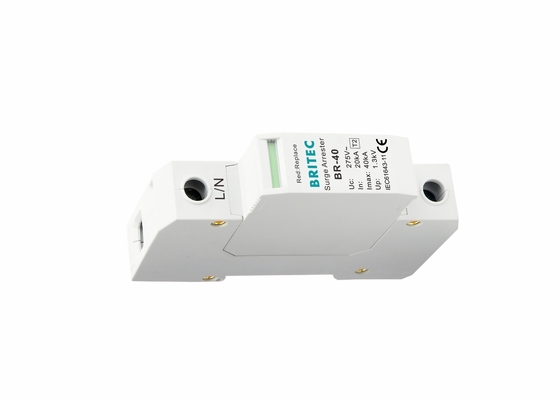

40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    • 40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling
    • 40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling
    • 40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling
  • 40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: BR275-40 1P RS

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Price: USD 15-40 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Network Surge Arrester Type: Ac Surge Protector
    Material: Plastic Pole Number: 1P
    Imax: 40kA Certificate: CB/CE/ROHS/ISO9001
    Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For LEPM Zone



    40kA 275V Single Phase 1P Type 2 Class II Surge Protective Device With Remote Signalling BR275-40 1P RS



    Product Description


    - Class II / Type 2 lightning protective device.
    - Consisting of a base part and 4 MOV plug-in protection modules.
    - For using in the lightning protection zones concept at boundary 1-2.
    - The core parts are metal oxide vristor components with high discharge capacity.
    - Low residual voltage and quick response.
    - Reliable control thanks to Thermo Dynamic Control disconnector.
    - With remote signaling contact for control device.
    - Fault indication via red mark in the inspection window.
    - Protection mode: L/N-PE.



    Features



    • • Protecting low-voltage consumers' installations against indirect lightning discharges.
    • • High performance varistor with thermal disconnection tripping device.
    • • Plug-in module/base design facilitate replacement of a failed module without the need to remove
    •   system wiring etc.
    • • Protection class: Type 2,Class II.
    • • Pole number:1P,2P,3P,4P,1+1,3+1.
    • • Surge protectors are used to guard sensitive equipments from voltage spike.

    Product Details

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Product characteristics



    Specification BR275-40 1P RS BR275-40 2P RS
    Item name  Surge Arrester Surge Arrester
    SPD dassification according to EN61643-11 Type 2 Type 2
    SPD dassification according to EN61643-11 Class II Class II
    Max continuous 0perating a.c. voltage      Uc 275V 275V
    Norminal discharge current (8/20µs)          In 20kA 20kA
    Max. discharge current (8/20μs)            Imax 40kA 40kA
    Voltage protection level                            Up ≤1.3kV ≤1.3kV

    Width of one pole

    18mm

    18mm

    Remote contacts

    Available

    Available

    For mounting on 35mm Din rail

    35mm Din rail

    Degree of protection IP20 IP20
    Payment term 30% deposit in advance,70% before shipment
    Certificate CE/ROHS/ISO9001 approved standard
    Logo       Customized logo available

    Design ability

    We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)



    Workshop

     Britec owns advanced test equipments and product line, perfect management, professional technical
    personnel and well-trained workers. Britec team keep developing newest product for our customer, that
    is why technical level of our products can be reached to the leading level, we also can help customer
    OEM/ODM.

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Company Information

     Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)
    manufacture with many years experiences.We are providing quality products, competitive price, prompt
    delivery and excellent service, and looking forward to even greater cooperation with overseas trade
    based on mutual benefits.

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Exhibition

     Britec have strong sales team, our surge protection device are sold to many countries around the
    world. Europe and Asia are our main market. We would like to cooperate with global customers and
     help you success in your market.

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Certifications

     Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The
    company implements ISO9001 quality mangement system.

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    Product Uses

     Britec have developed a wide range of products mainly covering requirements in the area of low
    voltage lightning protection, such as SPD for power system,PV system and data , etc. All these
    products have been widely applied in electronic system, computer network and security system,
    protection for power industry, petroleum chemical industry and national defense industry.

    40 KA 275 V Type 2 Surge Protection Device Class II With Remote Signalling

    FAQ

    01

    How about your experience?

    We have our own  factory and in-house test laboratory, our R&D department have more than

    15 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.

    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.

    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    5-8 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

     3-5 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of

    the production. IQC inspects the components, the patrol inspection is done during production and all

    the goods to be tested 100% before leaving the factory..
