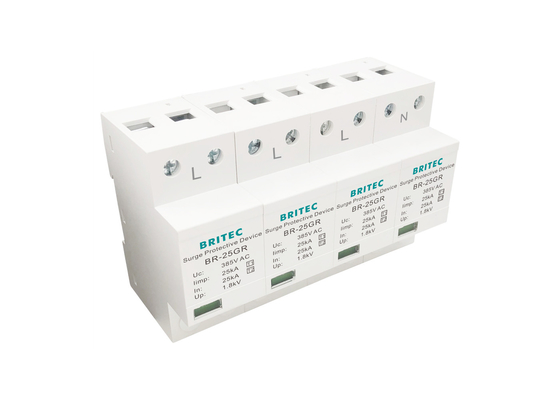

25kA T1 Surge Protector Iimp 4P BRITEC Lightning Protection Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-25GR 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Size:	1449070mm	Brand:	BRITEC
Material:	Thermoplastic UL94-V0	Item Name:	Lightning Surge Arrester
Type:	Ac Surge Protector	Class:	SPD Classification According To EN61643-11 Type 1
Iimp:	25kA	Pole Number:	4P
Protection:	IP20	Certificate:	TUV/CE/ROHS/ISO9001
High Light:	T1 Surge Protector Iimp , BRITEC Lightning Protection Surge Arrester , T1 Surge Protector Iimp 4P

T1 Surge Protector Features:

• Can be used in TN-S system

• Remote and visual indication of protection device life status.

• The surge arrester meets IEC61643-1 Requirements for Class I surge protectors

• The unit is designed to be used between Zone 0 and Zone 1 (according to IEC62305-4 definition of Lightning Protection Area).

• BR-25GR 4P is designed to discharge high current surges without any destruction of the installation.

T1 Surge Protector Technology Characteristic:

Specification	BR-25GR 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	25kA
Norminal discharge current (8/20µs) In	25kA
Maximum discharge current (8/20µs) Imax	100kA
Voltage protection level Up	≤1.8kV
Short-circuit current rating lsccr	25kA rms
Max. backup fuse	315A gG
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

25kA T1 Surge Protector Iimp 4P BRITEC Lightning Protection Surge Arrester 0

T1 Surge Protector Installation:

• Power must be cut off before installation. Live operation is prohibited.

• Suitable as the first step of protection in incoming power supply panels and areas with greater exposure to the atmosphere, where installations are usually provided with an external lightning protection system.

• It is recommended that a fuse or circuit breaker be connected in series at the front end of the surge protection module.

• SPD is installed in parallel at the power supply inlet end of the building distribution box or the equipment room. The product is installed in the guide rail type. If conditions permit, the Kevin connection mode can be adopted.

• During installation, connect the device according to the installation diagram, where L is the phase line, N is the neutral line, and PE is the ground line. Do not misconnect the device. After the installation is complete, turn on the circuit breaker and check whether the working status is normal.

• When the SPD module is in use, check the status of the fault display window regularly. If the fault display window is red or the remote terminal outputs an alarm signal, it indicates that the SPD module is faulty and should be repaired or replaced in time.

• Suitable for indoor operation, if installed in the outdoor, must be equipped with waterproof box.

• All connections must be strong and reliable

T1 Surge Protector Application:

• The product is mainly used for primary protection of power system.

• Application-optimised and prewired combined lightning current and surge arrester for TN-S systems.

• Installed in the main power distribution box.

• Used to Industry and automation, commercial and residential installations, telecom & IT & data centers, water treatment, smart grid & LV metering, photovoltaic and wind etc.

T1 Surge Protector Advantage:

• Compact design.

• With high discharge capacity.

• Low residual voltage and quick response.
