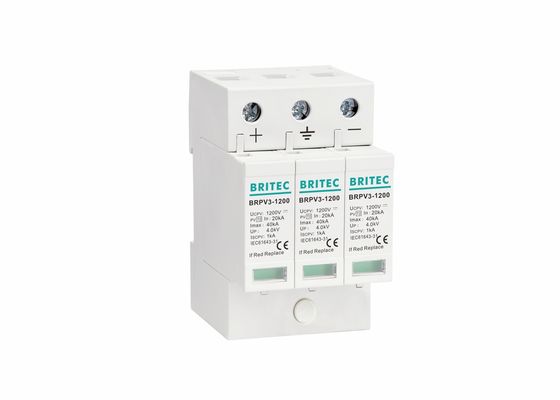

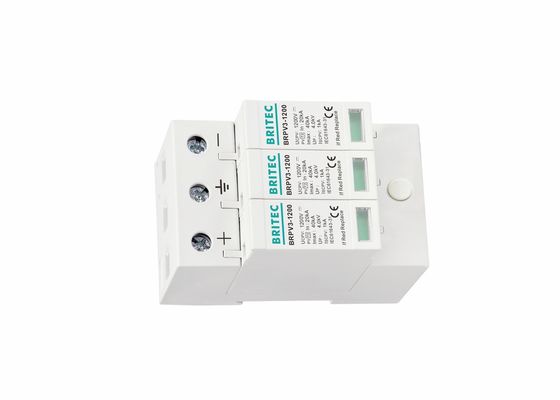

Quick Response 1200V 40ka TVSS Solar Lightning Arrester

Quick Response 1200V 40ka TVSS Solar Lightning Arrester

  • Quick Response 1200V  40ka TVSS Solar Lightning Arrester
  • Quick Response 1200V  40ka TVSS Solar Lightning Arrester
Quick Response 1200V  40ka TVSS Solar Lightning Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRPV3-1200
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: DC Power Surge Protector
Model Number: BRPV3-1200 Ucpv: 1200V Dc
Material: Thermal Plastic In: 20kA
Max. Discharge Current: 40kA Voltage Protection Level: ≤3.8kV
Warranty: 2-5 Years Protection: IP20
High Light:

TVSS solar lightning arrester

,

Quick response solar lightning arrester

,

Quick response solar surge protector

1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Type 2 Solar Power SPD



1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Feature:

- DC surge Protective device specially used for photovoltaic system 1200Vdc.
- Small volume, Pluggable
- The core parts are metal oxide varistor components with high discharge capacity.
- Quick response
- With Reliable control
- Double thermal disconnector devices, providing reliable protection.
- With or without remote signaling contact for control device.
- High flame retardant, anti-corrosion
- Fault indication via red mark in the inspection window.


1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Parameters:


3 Mod BRPV3-1200
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                       Ucpv 1200V
Nominal discharge current (8/20us)                                In 20kA
Max. discharge current (8/20us)                                 Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                     Up ≤3.8kV
Response time                                                                tA ≤25ns
Operating temperature range                                         Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                  Thermal plastic UL94-V0
Degree of protection IP20



Dimension:



Quick Response 1200V  40ka TVSS Solar Lightning Arrester 0



1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Product Introduction:

BRPV3-1200 is designed for use in PV string combiner boxes for generator voltages up to 1200 V and complies with latest EN standards for global application.

1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Product Details:

Built-in temperature control circuit technology, high safety performance, no after flow.
Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
Optional remote monitoring interface can be used for remote monitoring.
High working voltages, high pass flow, high safety performance and high stability.
Exclusive devices for photovoltaic systems according to EN 50539-11. Maximum voltage rating 1200 Vdc.



About us:



Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.



Quick Response 1200V  40ka TVSS Solar Lightning Arrester 1



Certificate:



Quick Response 1200V  40ka TVSS Solar Lightning Arrester 2



Packing&Shipping:


• Packaging Details: standard cartons.
• Port: Ningbo/Shanghai.

• Delivery Time: 7-10 days after payment for sample order, 15-30 days after payment for big order.



Quick Response 1200V  40ka TVSS Solar Lightning Arrester 3



FAQ:


Q1. What advantages do you have?

  A: We have good quality products, excellent technical support and service.



Q2. How long is the quality gurantee?

  A: Product quality warranty is two years.



Q3. What is the delivery time?

  A: Normally, it is about 15-30 days after payment. It is needs to be negotiated to special requirement orders.



Q4. How about the quality of your product?

  A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing.



Q5. How do you keeping our long-term business and good relationship?

  A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
