IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting

IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting

  • IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting
  • IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting
IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 1P+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Uc[N-PE: 1
TA: ≤25ns TA[N-PE: 1
Imax: 40kA Tu: -40℃...+80℃
High Light:

lightning surge arrester

,

2 pole surge protector

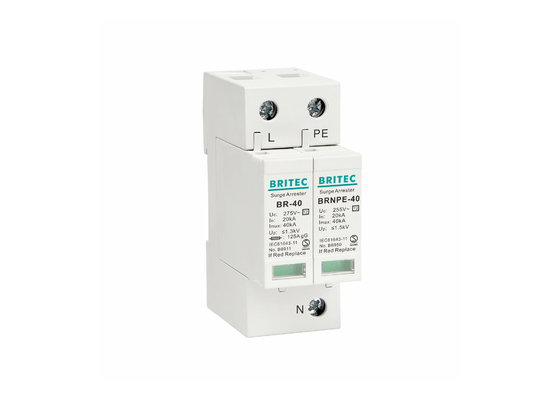

IEC 61643-11 SPD AC 40kA Type 2 Surge Arrester 1P+NPE Lightning Protection DIN Rail Mounting



Feature:



  • • Class II, Type 2, 40kA
    • 40kA maximum surge current
    • The surge arrestors BR-40 1+1NPE meet the type 2 requirement class according to IEC 61643-11
    • The housing is fixed on 35mm electrical guide
    • Window color display working status, normal green, red, indicating failure of the product
    • Optional with remote communication terminals for remote alarm control



Product Details:



  BR150 40 1P+NPE BR275 40 1P+NPE BR320 40 1P+NPE BR385 40 1P+NPE BR440 40 1P+NPE

SPD classification according to EN61643-11

Type 2 Type 2 Type 2 Type 2 Type 2

SPD classification according to IEC61643-11

Class II Class II Class II Class II Class II

Max. continuous operating a.c. voltage               Uc

150V 275V 320V 385V 440V

Max. continuous operating a.c. voltage[N -PE]    Uc

255V 255V 255V 255V 255V

Nominal discharge current (8/20us)                      In

20kA 20kA 20kA 20kA 20kA

Max. discharge current(8/20μs)                        Imax

40kA 40kA 40kA 40kA 40kA

Voltage protection level                                       Up

≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV

Voltage protection level 5kA                                Up

≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV

Voltage protection level [N-PE]                            Up

≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV

Follow current extinguishing capability[ N-PE]a.c.Ifi

100Arms 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 125A gL 125A gL 125A gL 125A gL 125A gL
Response time                                                      tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Response time [N-PE]                                          tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Operating temperature range                               Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃

Operating state / fault indication

   green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8251 B8253 B8255 B8257 B8370
Order Code (With remote signaling) B8252 B8254 B8256 B8258 B8371



Technology characteristic:



IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting 0



Application:



  • • For protection of consumer equipment againts transient voltage caused by indirect lightning strike and switching
      operations.
    • Use in domestic, commercial and light industrial installations.
    • Usually installed in household power distribution boards, telecom machinery center, computer equipment center,
      elevator control center, hospital's surgery and ICU, information equipment, electronic equipment and in front of
      control equipment or nearest socket box of control equipment.



Advantage:



  • • High current capacity, quick response
    • Low residual voltage, free of leakage current
    • Easy installation with Din rail mounting
    • Status indicators visually verify protection level
    • Simple, professional installation of the arrester modules.



Our Services:



  • • 17 years global leading profession manufacture of electrical products surge arrester
    • All products will be well packed before shipping
    • Standard packaging, and you can also tell us your own requirements on packaging
    • Faster delivery
    • Individually Tested Prior to Shipment



Company introduction:



IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting 1



Shipping:



IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting 2



Certificate:



IEC 61643-11 SPD AC 40kA 1P + NPE Lightning Protection DIN Rail Mounting 3



Installation:



  • Usually installed in the distribution box office, the power phase line (L), neutral (N), respectively, corresponding
       surge protectors access terminals to ensure secure and reliable, and the surge protector ground terminal and
       ground as well electrical connection.
    • Surge protectors should regularly check the work, such as the protection window turns red indicating the
      deterioration of its front open space, when the fuse is tripped, timely maintenance or replacement module.
    • After the installation is complete, check that the protection unit is plug in place, close the automatic circuit
      breaker (fuse) switch, check the working status is normal.
