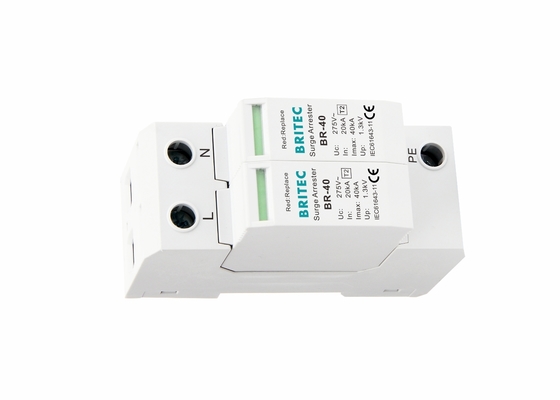

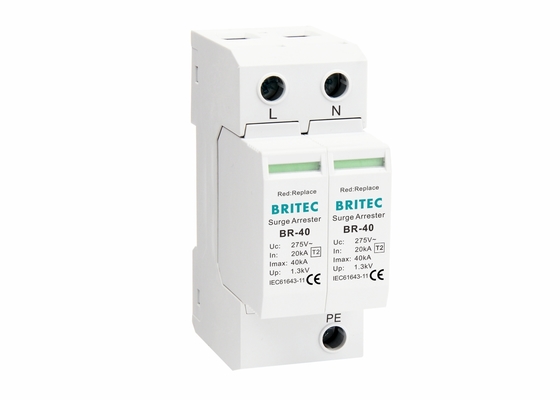

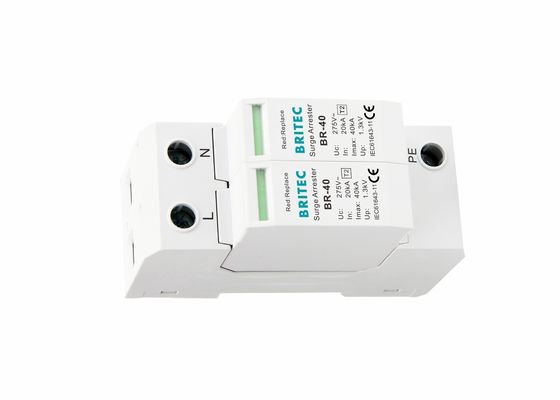

Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device

Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device

  • Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device
  • Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device
Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: TY-40 320 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Arrester Standards: IEC 61643-11 / EN61643-11
Kinds: Type 2 Pole: 2P
Un: 230V/400V Uc: 320V
In: 20kA Imax: 40kA
Up: 1.5kV Tu: -40℃-80℃
High Light:

SPD power surge arrester

,

SPD type 2 Surge Protection Device

,

40kA Double Pole power Surge Arrester

Double Pole SPD 20 kA to 40 kA Surge Arrester 2P Electrical Voltage Protector Plastic


Double Pole SPD 20 kA to 40 kA Surge Arrester Product description:

This high quality AC SPD is a surge protection device suitable for power supply system of AC 50/60 Hz.
Excellent functionality
It is designed according to IEC61643-1, GB18802.1 standards.
High strength
There is a failure release mounted on the module of surge protection device.
Devices have indicators to advise end of life of the device
When the SPD fails in breakdown, for over heat and over current, the failure release will help electrical equipment to separate from the power supply system and give the indication signal, green or red.



Double Pole SPD 20 kA to 40 kA Surge Arrester Technology characteristic:



Specification TY320-40 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to EN61643-11 Class II
Max continuous 0perating a.c. voltage        Uc 320V
Max. discharge current (8/20µs)              Imax 40kA
Norminal discharge current (8/20µs)            In 20kA
Voltage protection level                               Up ≤1.5kV
Max. backup fuse 125A gG
Response time                                              tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                       Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermal plastic



Dimension:



Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device 0



Double Pole SPD 20 kA to 40 kA Surge Arrester Installation:

Installation as defined in the standard is simple enough, the device is connected with cables to and from the unit no longer than a meter in total, and a short path to earth will ensure the effective discharge of the surge to earth.

Note:

If a Type 2 SPD is installed and cable lengths are less than 10m, then there is no longer a requirement to fit Type 3 surge protected extension leads. If greater than 10m then type 3 surge protection should be fitted.
For the most part a simple two pole device for single phase TT or TNS will be enough. In TNCS systems a single pole unit may be sufficient as only the live conductor comes to the property that can bring a threat from outside influences affecting that supply.



Company profile:



Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.



Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device 1



Shipping:



Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device 2



Certifications:



Double Pole SPD 40kA Surge Arrester 2P Type 2 Surge Protection Device 3



FAQ:



Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.

Q. How Could I Get A Sample?
A: Generally, we offer samples in 7-10 days while customer pay the sample fee and shipping cost.

Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.

Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.

Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.

Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.

Q: What's The Time Of Warranty.
A: We offer 2 years warranty.

Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
