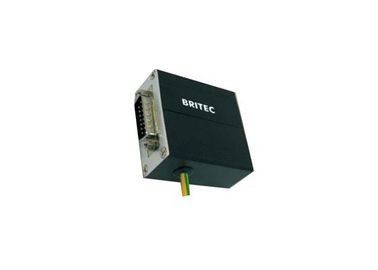

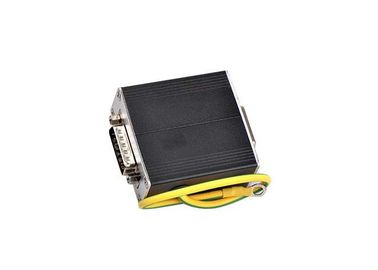

D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector

D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector

  • D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector
  • D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector
D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-DB15
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 Un: 12V
In (SG-PG): 10kA Material: Aluminium Alloy
TA (SG-PG): ≤100ns Connection: D-Sub 15 Plug / Socket
Bandwidth: 10Mbps Insertion Loss: ≤0.3dB
Uc (DC): 15V Tu: -40℃...+80℃
Item: Data Surge Protector Model No.: BR-DB15
High Light:

spd surge protector

,

commercial surge protection devices



D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector



Feature:



  • • Operating voltage (Un): 12V
    • Connection input / output: D-Sub 15 plug / socket
    • Electronic Link
    • 15 pin full protected for surge arrester
    • D-Sub surge protector are designed to protect sensitive equipment linked to datalines equipped
      with D-sub connectors



Product Details:



  BR-DB15
Test standards IEC 61643-21

Nominal voltage                                                                           Un

12V
Max.continuous operating d.c.voltage                                          Uc 15V
C2 Nominal discharge current (8/20us) line-SG                            In 5kA
C2 Nominal discharge current(8/20μs) SG-PG                             In 10kA
Voltage protection level [line-SG]                                                Up   ≤40V
Voltage protection level [SG-PG]                                                 Up ≤500V
Response time [line-SG]                                                               tA ≤1ns
Response time [SG-PG]                                                               tA ≤100ns
Operating temperature range                                                      Tu -40℃…+80℃
Connection input/output D-Sub 15 plug/socket
Pinning line:2/9,4/11, SG:8, PG:1
Bandwidth 10Mbps
Insertion loss ≤0.3dB
Enclosure material                  aluminium alloy
Degree of protection IP20
Order Code D9071



Technology characteristic:



D Sub 15 Pins Surge Protection Device , Wide Range Data Surge Protector 0



Application:



  • • For computer system D-sub 9 pin
    • Apply for high speed transmission devices
    • Protect the motherboard of computer
    • The series of BR-DB15 provide surge protection for signal devices from damage, such as surge
      voltage, operating over voltage, electrostatic discharging and so on.



Advantage:



  • • Brand-name Parts
    • Fast and easy installation
    • Equipped with D-sub connectors for fast and easy maintenance
    • Green Product
    • International Approvals
    • Distributorships Offered
    • Guarantee/Warranty
    • In order to comply with the line configuration, all the wires are transmitted and protected.
    • High discharge capacity, low voltage protection, quick response
    • Do not impact the normal work of data management devices and system



Our Services:



  • • Professional manufacturer, 17 years global leading profession manufacture of electrical products
      surge arrester.
    • Prompt response: Any inquiries will be replied within 24 hours.
    • OEM/ODM available.
    • Standard packaging, and you can also tell us your own requirements on packaging.
    • All products in accordance with the IEC the international standard.
    • Faster delivery.
    • Individually Tested Prior to Shipment.



What is IEC 61643-21 standards?



  • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices
      connected to telecommunications and signalling networks; Performance requirements and testing
      methods.
    • The test categories for surge protective devices connected to telecommunications and signalling
      networks are defined in these standards.
