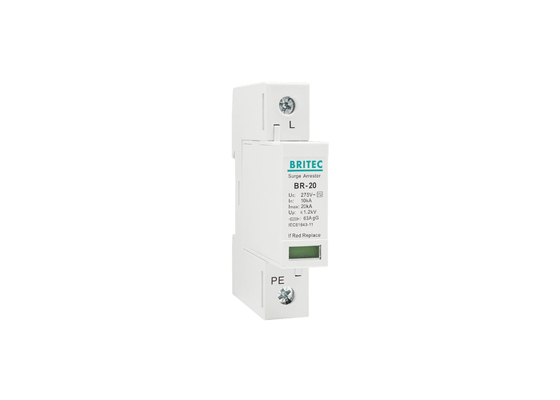

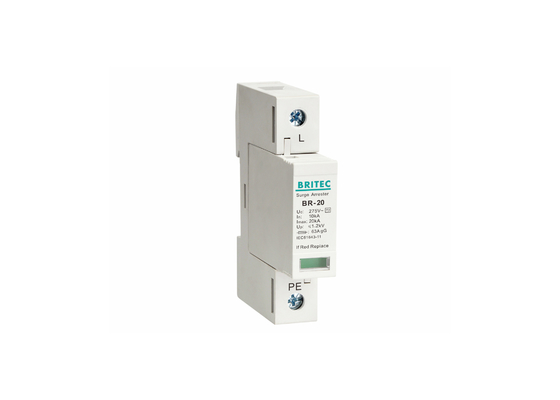

Type 2 Class II 20kA 1P AC Surge Protection Device Feature:
• Low price china spd, Type 2 or Class II test level, selectable in nominal discharge current 10kA with max. discharge current of 20kA accordingly.
• 1 Pole/2 Pole/3 Pole/4 Pole/1P+NPE/3P+NPE SPD for options.
• Surge Protection Device for transient electrical over-voltages.
• DIN rail mounting, easy installation, compact size, and good performance.
• Class 2 SPD for typical waveforms of 8/20 μs.
• End of Life indicator light.
• The SPD is designed in accordance with IEC Class II.
• Employs 'MOV' metal oxide varistor technology
Type 2 Class II 20kA 1P AC Surge Protection Device Product Details:
| |
BR-20 275 1P |
BR-20 320 1P |
BR-20 385 1P |
BR-20 440 1P |
| SPD classification according to EN61643-11 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification according to IEC61643-11 |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating a.c. voltage Uc |
275V |
320V |
385V |
440V |
| Nominal discharge current (8/20us) In |
10kA |
10kA |
10kA |
10kA |
| Max. discharge current(8/20μs) Imax |
20kA |
20kA |
20kA |
20kA |
| Voltage protection level Up |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
| Max. backup fuse |
63A gG |
63A gG |
63A gG |
63A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
| Cross-section area (Min.) |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermplastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
Dimension:
Type 2 Class II 20kA 1P AC Surge Protection Device Description:
- 1 phase 20kA Type 2 lightning arrester.
- The protection cartridges are plug-in and can be easily replaced for quick servicing.
- With indication window and remote control contacts.
- Test class II in accordance with IEC 61643-1
- Unique designing, patent technology.
- 35mm² DIN-rail in accordance with EN 50022/DIN46277-3.
- Low residual voltage.
Type 2 Class II 20kA 1P AC Surge Protection Device Application:
• They ensure protection against overvoltage conditions.
• For the protection of low voltage distribution systems against direct lightning strike into the overhead power supply line or external lightning protection system (IEC 62305).
• Surge protection devices (SPDs) are suitable for the IT, TT, TN-C, TN-S, TN-C-S power supply system of 50/60Hz, rated voltage 400V AC and below, protecting them from direct and indirect lightning impulse and other transient overvoltage.
• They are suitable for installation in secondary boards and in terminal equipment.
Installation:
• The line of surge arresters includes a full range of compact protectors for installation on DIN rail
• When the fault indication window turns from green to red please replace the cartridge as soon as possible
• After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.
What is a surge protection device?
The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.
