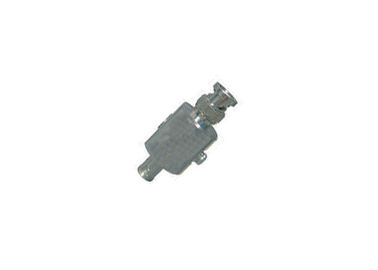

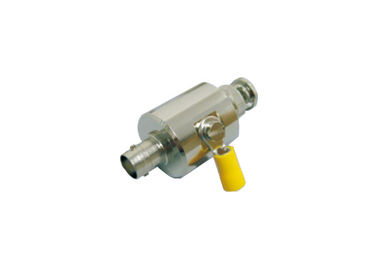

BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss

BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss

  • BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss
  • BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss
BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-BNC-H
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 In: 10kA
Uc (DC): 180V Material: Steel
IL: 20A Connection: BNC Socket
Bandwidth: 3Gbps Insertion Loss: ≤0.3dB
Uc (AC): 130V Impedience: 50Ω
High Light:

spd surge protector

,

commercial surge protection devices



SPDs for Coaxial Connection BNC Connector Coaxial Surge

                                    Protection Device



Feature:



  • • Connector: BNC
    • Designed according to IEC 61643-21 standard
    • Interface accord with BNC standard Specification
    • Short circuit current: up to 10kA (8/20μs)
    • Universal surge and combined arresters
    • It can realize high efficiency of discharging lightning surge current and anti lightning function
    • High Reliability Protection from Excessive Voltages
    • Characteristic impedance 50Ω
    • High Frequency and Low Insertion Loss
    • Easily Replaced Element
    • Various Grounding Types Available
    • The built-in high-speed overvoltage protection device has an efficient defensive function against
      the lightning high-voltage pulses induced on the antenna feeder to prevent the antenna.



Product Details:



  BR-BNC-H
Test standards IEC 61643-21
Max.continuous operating d.c.voltage                                          Uc 180V
Max.continuous operating a.c.voltage                                          Uc 130V
Nominal current IL                                                                         IL 20A
C2 Nominal discharge current (8/20us) line-shield/PG                  In 10kA
Voltage protection level [line-shield/PG]                                      Up   ≤800V
Response time [line-shield/PG]                                                     tA   ≤100ns
Operating temperature range                                                      Tu -40℃…+80℃
Connection input/output BNC socket
Bandwidth 3Gbps
Insertion loss ≤0.3dB
Impedience 50Ω
Enclosure material                         Steel
Degree of protection IP20
Order Code D9022



Technology characteristic:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 0



Application:



  • • Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
    • It can be used for the lightning surge protection of monitoring system's video line with BNC
      connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video
      Camera BNC connector.
    • The signal protection: low frequency signal protection, high-frequency signal protection etc.
    • It is suitable for lightning protection of wireless communication, such as Satellite
      Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.



Advantage:



  • • Multi grade protection
    • No power pollution
    • Large flow current
    • Contact materials with extremely long endurance
    • The temperature protection circuit, built-in thermal protection
    • Low insertion loss
    • Low residual voltage
    • Great transmission performance
    • Quick respond
    • High discharging capacity
    • Easy installation and connection



Our Services:



  • • 17 years global leading profession manufacture of electrical products surge arrester
    • All products will be well packed before shipping
    • Standard packaging, and you can also tell us your own requirements on packaging
    • Faster delivery
    • Individually Tested Prior to Shipment



What is IEC 61643-21 standards?



  • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected
  •    to telecommunications and signalling networks; Performance requirements and testing methods.
    • The test categories for surge protective devices connected to telecommunications and signalling
  •    networks are defined in these standards.



Production process:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 1



About us:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 2



Laboratory:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 3



Certification:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 4



Shipping:



BNC Connector Coaxial Surge Protection Device , Spd Protection Low Insertion Loss 5
