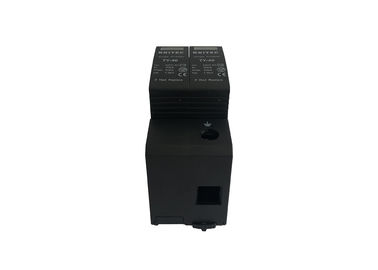

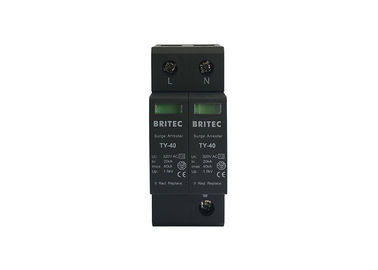

AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD

AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD

  • AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD
  • AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD
AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRTY-40B 320 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Type: Type 2
Material: Thermal Plastic Type Item: Lightning Arrester
Uc: 320V In: 20kA
Usage: Low Voltage Delivery Time: 15-30 Days
High Light:

lightning protection device

,

lightning surge protector

AC Lightning Arrester 2 Pole Surge Protection Device 40ka SPD for Power System



Feature:



High performance varistor with thermal disconnection tripping device.
Maximum current of endure the lightning stroke 40KA.
Time of response<25ns.
The color of visible window shows operating status, green means normal, red means abnormal.



Product detail:



  BRTY-40B 320 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max. continuous operating a.c. voltage         Uc 320V
Nominal discharge current (8/20us)               In 20kA
Max. discharge current (8/20us)                Imax 40kA
Voltage protection level                                 Up ≤1.5kV
Width of one pole 18mm
Remote contacts Optional
For mounting on 35mm Din rail
Degree of protection IP20
Payment term 30% deposit in advance,70% before shipment
Logo Customized logo available
Design ability We can supply sample, OEM&ODM is welcome (Design, Engineering, Photographing, Sample, Production)



Dimension:



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 0



Applications:



Suitably used in the TN-S power supply system of AC 50/60HZ.
Suitable for system power protection, such as power distribution cabinet, switch cabinet, AC distribution
  board etc.
Protect from direct and indirect lightning impulse and other transient over voltage.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical

personnel and well-trained workers. Britec team keep developing newest product for our customer, that

is why technical level of our products can be reached to the leading level, we also can help customer

OEM/ODM.



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 1



Company Information:


Britec Electric Wenzhou Co., Ltd. was established in 2003, is a professional surge protective devices

(SPD) manufacture with many years experiences. We are providing quality products, competitive price,

prompt delivery and excellent service, and looking forward to even greater cooperation with overseas

trade based on mutual benefits.



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 2



Certifications:


Britec offer full range of SPD products which has CE, RoHS, TUV, SEMKO, CB certification. The

company implements ISO9001 quality mangement system.



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 3



Product Uses:


Britec have developed a wide range of products mainly covering requirements in the area of low voltage

lightning protection, such as SPD for power system, PV system and data, etc. All these products have

been widely applied in electronic system, computer network and security system, protection for power

industry, petroleum chemical industry and national defense industry.



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 4



Testing station:



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 5



Payment & Shipping:



AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 6AC Lightning Arrester Power Surge Protection Device 2 Pole 40ka SPD 7



FAQ:



Q1. Are you a factory or trading company?

  A: We are manufacturer.



Q2. What's the guarantee for the products?

  A: 2 years' warranty period.



Q3. Where is your factory?

  A: We are located in Yueqing, Zhejiang province.



Q4. What's your mainmarket?

  A: Southeast Asia, Europe, South Africa and North America etc.



Q5. Your company support what trade terms and payment terms?

  A: We support T/T, L/C, PayPal etc.
