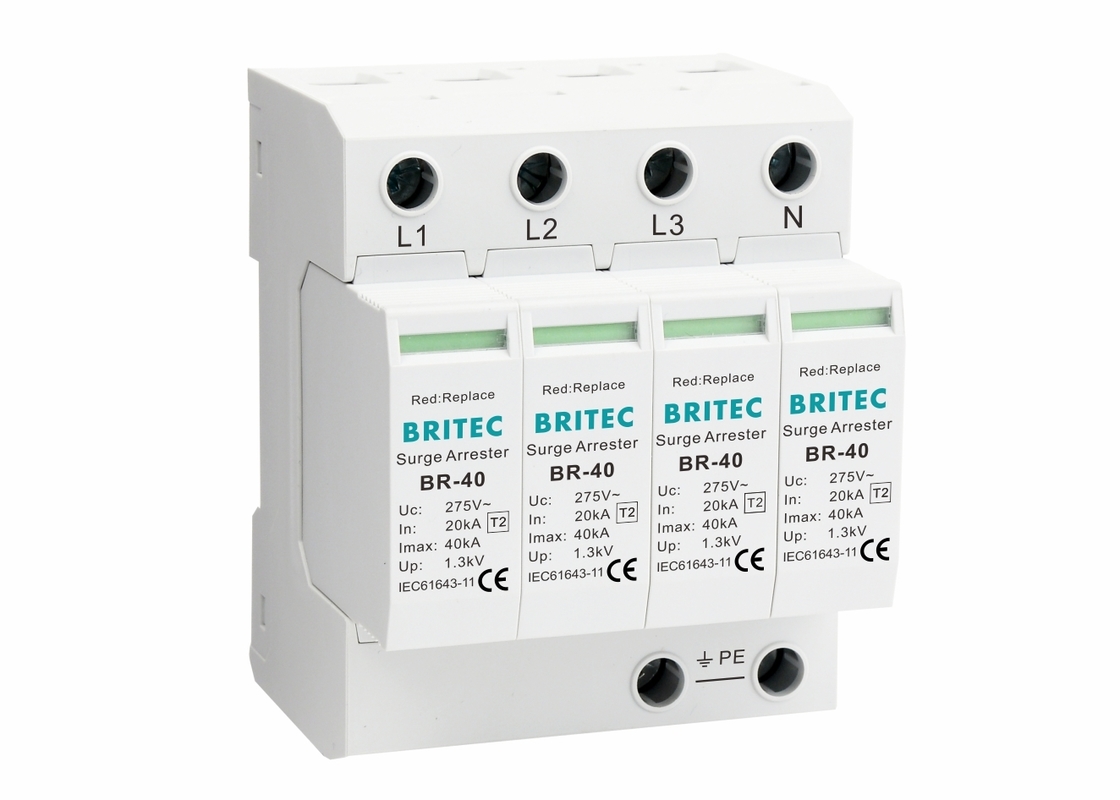

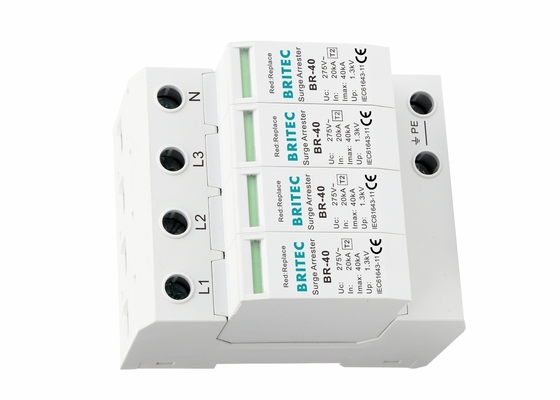

EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail

EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail

  • EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail
  • EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail
EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 500000 pieces per month
Contact Now
Detailed Product Description
Product Name: Surge Protective Device Power: AC
Standard: IEC / EN 61643-11 Pole No.: 4P
Rated Voltage: 150V / 275V / 320V / 385V / 440V In: 20kA
TA: ≤25ns Mounting On: 35mm Din Rail
Color: White Warranty: 5 Years
Highlight:

EN 61643-11 Type 2 Surge Protection Device

,

35mm Dinrail Type 2 Protector

,

TUV Type 2 Protector

40ka Surge Protective Device 8/20μs SPD Lightning Arrester Description:


- Surge protective devices consisting of a base part and MOV plug-in protection modules.
- It protects the indirect lightning and direct lightning impact or other transient overvoltage surge, which is mainly applicable to the residence, the third industry and the industrial and mining enterprises.
- High energy MOV inside.
- Safety insulation of fire retardant high flame retardant material
- Low residual voltage and quick response.
- Built-in overheating and temperature control circuit breaker
- Reliable control
- With 35mm standard DIN-rail mounting
- With remote signaling contact for control device.
- Connecting copper stranded conductor is 4~35mm²
- Fault indication via red mark in the inspection window.
- We also can supply more of product for low--voltage power system lightning protective device, surge protective device with Imax=60kA, 80kA, 100kA etc. And type B SPD with spark gap.
- Lightning protection manufacturer lightning arrester manufacturer spd supplier



40ka Surge Protective Device 8/20μs SPD Lightning Arrester Product Details:



  BR-40 150 4P BR-40 275 4P BR-40 320 4P BR-40 385 4P BR-40 440 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage           Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20μs)                 In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)                   Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                                   Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                            Up ≤0.6kV ≤1kV ≤1.2kV ≤1.3kV ≤1.5kV
Max. backup fuse 100A gG 100A gG 100A gG 100A gG 100A gG
Response time                                                 tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                          Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:

EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail 0

40ka Surge Protective Device 8/20μs SPD Lightning Arrester Application:

Surge protection device are suitable for lightning and surge protection in AC 50/60Hz.
The power supply surge protector is suitable for TN-S power supply systems, and factory low voltage power and control system.
Application of AC power line of house, bank, and telecom tower and so on.



Installation:



• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.
• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
• In areas where storms are frequent, it is strongly recommended to install additional protection systems.



Our Services:



• 21 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Certificate:



EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail 1



Company profile:



Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 21 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.



EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail 2



Laboratory equipment:



EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail 3



Shipping:



EN 61643-11 Standard 8/20μs Type 2 Surge Protection Device 35mm Din Rail 4



FAQ:



1. How can I get a quotation?

--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!



2. How to pay for order?

--T/T, Paypal, L/C, ect.



3. How can I trust you and your company?

--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 21 years ago, customers always make highly complimentary remarks



4. What’s the process of order?

--Send us Inquiry→get quotation→payment done→mass production.



5. When can I expect the customized product to be finished?

--Sample: 7-10 working days (Standard).

--Bulk order: 15-30 working days (Standard).



6. Delivery & Shipment

--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
