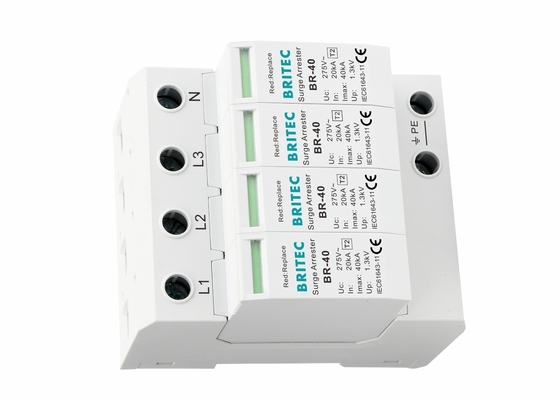

40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector

40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector

  • 40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector
  • 40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector
40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: TY-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item: Surge Arrester Power: AC
Standard: IEC / EN 61643-11 Pole No.: 4P
Rated Voltage: 150V / 275V / 320V / 385V / 440V Discharge Current (8/20us) In~Imax: 20kA~40kA
TA: ≤25ns Material: Thermal Plastic UL94-V0
Color: Black Application: Electronic Equipment
High Light:

MOV ac power surge protector

,

Type 2 AC power surge protector

,

SPD ac surge protector



40ka 4P SPD AC 320V Type 2 Surge Protective Device MOV AC Surge Protector Device



40ka 4P SPD AC 320V Type 2 Surge Protective Device Product description:

Class II AC surge protector designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 1-2 and higher.
Simple standard hat rail mounting
Quick thermal response and perfect circuit cutoff function due to special thermal disconnector design with arc extinguishing device.
Labelled connections
Pluggable design, 4 poles, easy replaced without any tools.
Time of response<25ns.
High surge current capability with 8/20 us waveform, Imax 40kA.
Excellent performance
Visual status indication and optional remote signal contact.
The color of visible window shows operating status, green means normal, red means abnormal.
Comply with IEC 61643-11.



40ka 4P SPD AC 320V Type 2 Surge Protective Device Product Details:



  TY150 40 4P TY275 40 4P TY320 40 4P TY385 40 4P TY440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage           Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)                 In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)                   Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                                   Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                            Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                                 tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                          Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20

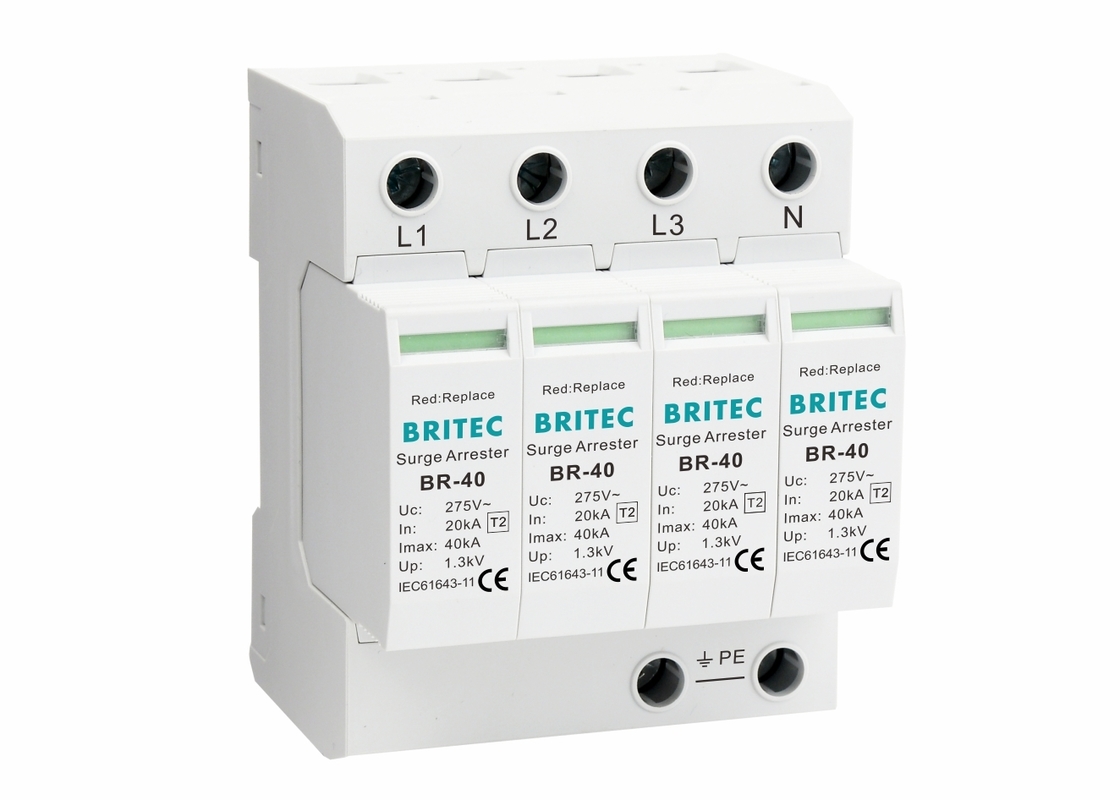

Product picture:

40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector 0

40ka 4P SPD AC 320V Type 2 Surge Protective Device Application:

TY-40 4P AC SPD is suitably used in the TN-S power supply system of AC 50/60HZ.
Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.
To protect from direct and indirect lightning impulse and other transient over voltage.



Our Services:



  • • 17 years global leading profession manufacture of electrical products surge arrester
    • All products will be well packed before shipping
    • Standard packaging, and you can also tell us your own requirements on packaging
    • Faster delivery
    • Individually Tested Prior to Shipment



Installation:



  • • The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.
    • For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
    • In areas where storms are frequent, it is strongly recommended to install additional protection systems.



Certificate:



40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector 1



Company profile:



Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.



40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector 2



Laboratory equipment:



40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector 3



Shipping:



40ka 4P SPD AC 320V Type 2 MOV AC Power Surge Protector 4



FAQ:



1. How can I get a quotation?

--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!



2. How to pay for order?

--T/T, Paypal, L/C, ect.



3. How can I trust you and your company?

--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 17 years ago, customers always make highly complimentary remarks



4. What’s the process of order?

--Send us Inquiry→get quotation→payment done→mass production.



5. When can I expect the customized product to be finished?

--Sample: 7-10 working days (Standard).

--Bulk order: 15-30 working days (Standard).



6. Delivery & Shipment

--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
