Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV/CB/CE/S |
Model Number: | BR-40 1P |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 25 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 500000 Piece/Pieces Month |
Item Name: | Surge Arrester | Type: | Ac Surge Protector |
---|---|---|---|
Material: | Plastic | Pole Number: | 1P |
Imax: | 40kA | Tu: | -40℃-80℃ |
Uc: | 150V / 275V / 320V / 385V / 440V | Class: | Type 2 |
Highlight: | 2 pole surge protector,type 2 surge protector |

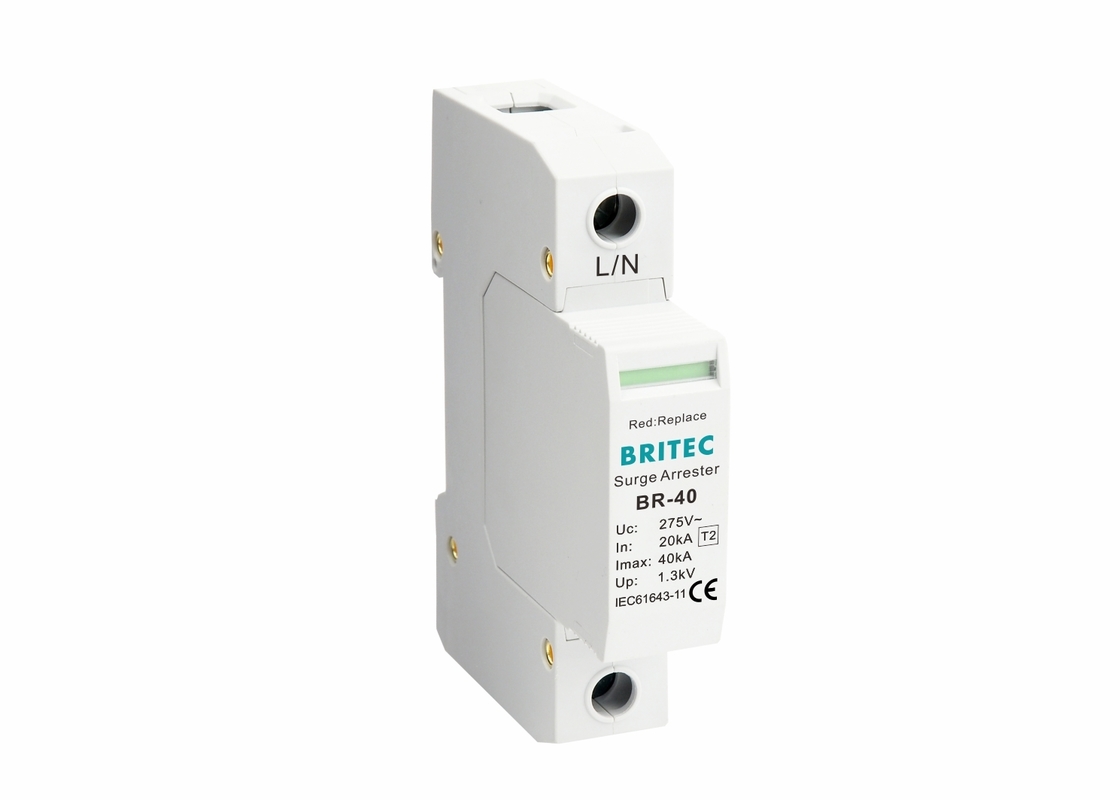

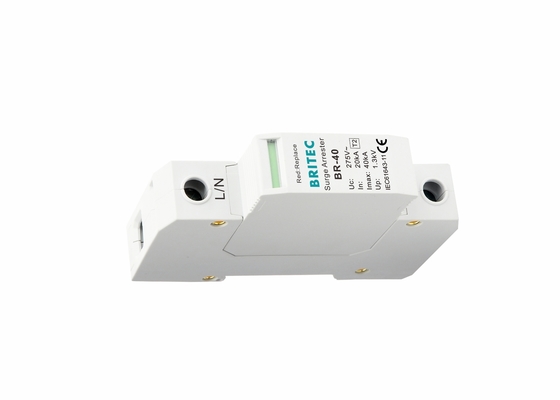

40 KA 275 V Type 2 Surge Protection Device Product Description:
- Class II / Type 2 lightning protective device.
- Consisting of a base part and 4 MOV plug-in protection modules.
- For using in the lightning protection zones concept at boundary 1-2.
- The core parts are metal oxide vristor components with high discharge capacity.
- Low residual voltage and quick response.
- Reliable control thanks to Thermo Dynamic Control disconnector.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.
40 KA 275 V Type 2 Surge Protection Device Features:
• Protecting low-voltage consumers' installations against indirect lightning discharges.
• High performance varistor with thermal disconnection tripping device.
• Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
• Protection class: Type 2, Class II.
• Pole number:1P,2P,3P,4P,1+1,3+1.
40 KA 275 V Type 2 Surge Protection Device Product characteristics:
Specification | BR-40 275 1P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 2 |
SPD dassification according to IEC61643-11 | Class II |
Max continuous 0perating a.c. voltage Uc | 275V |
Nominal discharge current (8/20µs) In | 20kA |
Max. discharge current (8/20μs) Imax | 40kA |
Voltage protection level Up | ≤1.3kV |
Width of one pole |
18mm |
Remote contacts |
Available |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm² |
Cross-section area (Max.) | 35mm² |
Enclosure material |
Thermoplastic UL94-V0 |
SPD single line diagram:
In electrical systems, SPD is installed in panel to protect against voltage surges caused by lightning or internal switching events.
SPD level refers to the different types of Surge Protective Devices (SPDs) and their corresponding protection levels within electrical systems. These devices are categorized into Type 1, Type 2, and Type 3, each designed for specific locations and surge types.
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All the product have five years guarantee. Any problem feel free to contact us.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 21 yeas. We have full experience of producing surge protection.
Q4: How to control the quality?
A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
