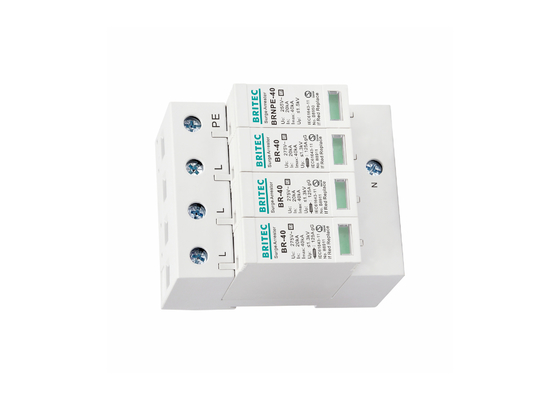

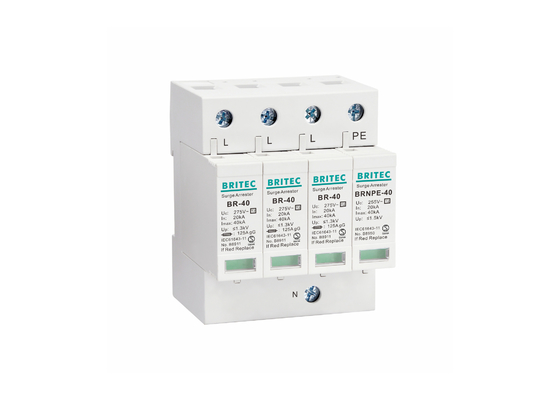

3P Plastic UL94 –V0 Type 2 Surge Protection Device

3P Plastic UL94 –V0 Type 2 Surge Protection Device

  • 3P Plastic UL94 –V0 Type 2 Surge Protection Device
  • 3P Plastic UL94 –V0 Type 2 Surge Protection Device
3P Plastic UL94 –V0 Type 2 Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 3P+N
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Pole No.: 3P+N
Uc: 150V / 275V / 320V / 385V / 440V In: 20kA
Imax: 40kA Uc[N-PE: 2
TA: ≤25ns TA[N-PE: 2
Tu: -40℃...+80℃ Mounting Support: 35mm Din Rail
High Light:

UL94-V0 Type 2 Surge Protection Device

,

UL94-V0 type 2 spd

,

3P Type 2 Surge Protection Device



40ka 3-Phase Electric Surge Protection Device DIN-Rail MOV UL 94 – V0



40ka 3-Phase Electric Surge Protection Device Product Description:

We have all possible range of SPDs like Class B, C, D / Type I, II, III.
Consistent plug ability(even for N/PE spark gap)
BR-40 series Surge Protection are designed to protect against lighting surge voltages. These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.
Own developed technology to manufacture MOV
Maximum current of endure the lightning stroke 40KA.
Thermal disconnect device for each individual connector
Surge Protection Device / Arrester are for protection against switching surges.
With or without floating remote indication contact
Time of response<25ns.
Din rail mountable (35 mm)
The color of the visible window shows operating status, green means normal, red means abnormal.



40ka 3-Phase Electric Surge Protection Device Product Details:



  BR150 40 3P+NPE BR275 40 3P+NPE BR320 40 3P+NPE BR385 40 3P+NPE BR440 40 3P+NPE
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage               Uc 150V 275V 320V 385V 440V
Max. continuous operating a.c. voltage[N -PE]    Uc 255V 255V 255V 255V 255V
Nominal discharge current (8/20us)                      In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)                        Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                                       Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                                Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Voltage protection level [N-PE]                            Up ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi 100Arms 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 125A gL 125A gL 125A gL 125A gL 125A gL
Response time                                                      tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Response time [N-PE]                                          tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Operating temperature range                               Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8451 B8453 B8455 B8457 B8249
Order Code (With remote signaling) B8452 B8454 B8456 B8458 B8250



Technology characteristic:



3P Plastic UL94 –V0 Type 2 Surge Protection Device 0



40ka 3-Phase Electric Surge Protection Device Features:

Pluggable with mechanical & remote indication.
Conform to IEC61643-11 standards
AC Type 2 SPD is the secondary protection system for all low voltage electric installations. This is installed in to each electrical switch boards and prevents the spread of surges in the electric systems, protecting the loads. Generally used for incomer feeders of main distribution panels.
Common mode or Common + Differential mode protection
Thermal disconnect device.
Class 2/Type 2 available.

40ka 3-Phase Electric Surge Protection Device Application:

1: BR-40 series AC SPD is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc power supply system of AC 50/60HZ.
2: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.
3: BR-40 AC SPD to protect from direct and indirect lightning impulse and other transient over voltage
4: Distribution box with outdoor input in the building and each floor



Installation:



  • • The line of surge arresters includes a full range of compact protectors for installation on DIN rail
    • When the fault indication window turns from green to red please replace the cartridge as soon as possible
    • After the installation is complete, check that the protection unit is plug in place, close the automatic circuit breaker (fuse) switch, check the working status is normal.



Our Services:



  • • 17 years global leading profession manufacture of electrical products surge arrester.
    • All products will be well packed before shipping.
    • Standard packaging, and you can also tell us your own requirements on packaging.
    • Faster delivery.
    • Individually Tested Prior to Shipment.



Packing & Delivery:



3P Plastic UL94 –V0 Type 2 Surge Protection Device 1



Company Information:


Britec Electric Wenzhou Co., Ltd. founded in 2003, has been committed to the field of lightning protection, the company is located in Yueqing, Zhejiang. The company is committed to the development and application of lightning protection. The company has gathered a group of experienced industry elites and marketing management personnel. They have accumulated more than ten years of industry experience, mastered exquisite product development technology and practical application experience, and can provide targeted scientific industry solutions.



3P Plastic UL94 –V0 Type 2 Surge Protection Device 2



Certificate:



3P Plastic UL94 –V0 Type 2 Surge Protection Device 3



FAQ:


1 How long is your products warranty ?

A: The warranty period of our products is 2 years.



2 How about inspection?

A: We have the whole inspection system from raw material to end products.



3 What do you have for certificate?

A: Our products are passed through IEC61643-11 standarded.



4 What is payment terms?

A: T.T, Paypal and L/C is acceptable.



5 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement. We also have the sales team to offer good service from pre-sale to after-sale.



6 How to become the agents for Britec?

A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest, let us discuss more !
