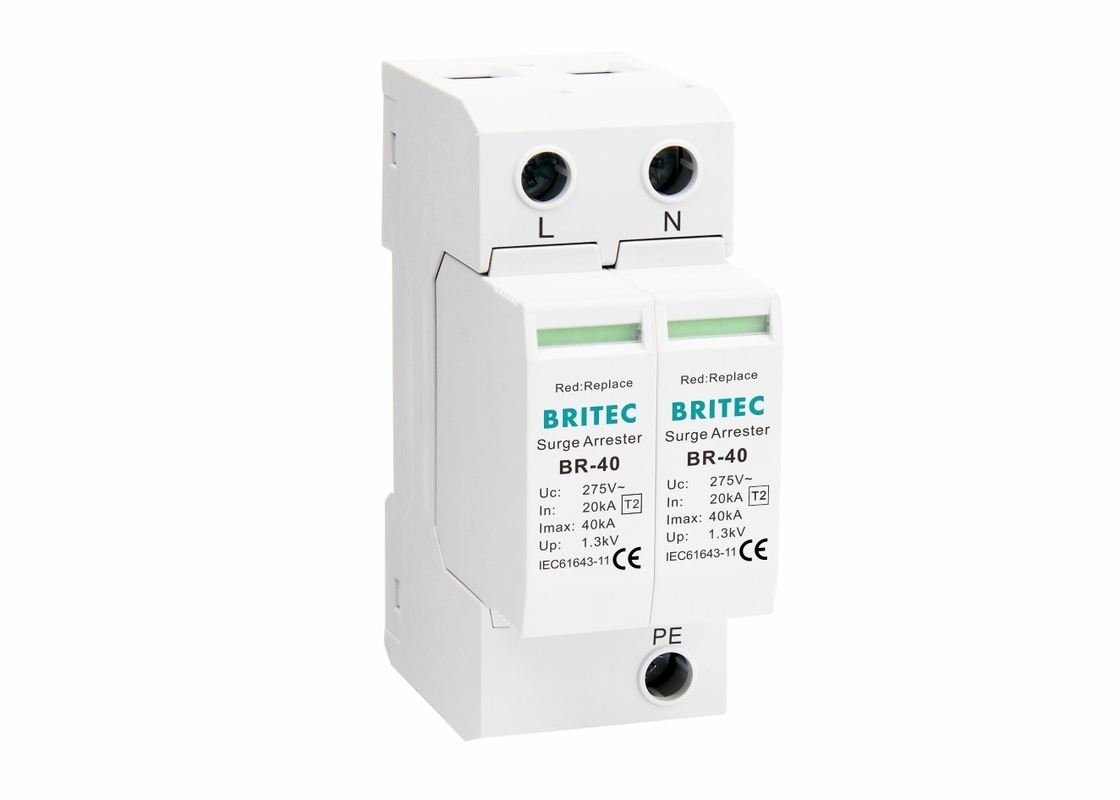

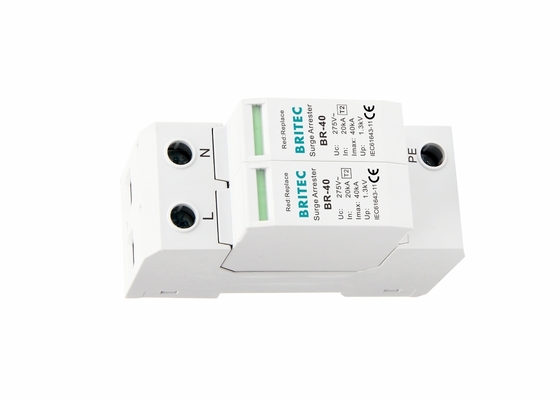

320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System

320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System

  • 320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System
  • 320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System
320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: TY-40 320 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Arrester Kinds: Type 2
Pole: 2P Uc: 320V
In: 20kA Imax: 40kA
Protection Level: 1.5kV Tu: -40℃-80℃
For Mounting On: 35mm Din Rail System: TN
High Light:

2P Type 2 Surge Protection Device

,

2P lightning Protection Device

,

320V lightning Protection Device

AC 2P 40kA Surge Protection Device Type 2 Class II Class C Voltage Lightning Arrester


AC 2P 40kA Surge Protection Device Feature:

This arrester is designed for use in AC power systems with an operating voltage of up to 320 V / 50 Hz.
Protect equipment against damage caused by sudden over voltage such as lightning and thunder is used.
With visual indication of the state.



AC 2P 40kA Surge Protection Device Technology characteristic:



Specification TY320-40 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to EN61643-11 Class II
Max continuous 0perating a.c. voltage        Uc 320V
Max. discharge current (8/20µs)              Imax 40kA
Norminal discharge current (8/20µs)            In 20kA
Voltage protection level                               Up ≤1.5kV
Max. backup fuse 125A gG
Response time                                              tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                       Tu -40℃—80℃
Operating state/fault indication green/red
Enclosure material Thermal plastic



Dimension:



320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System 0



AC 2P 40kA Surge Protection Device Product Description:

TY-40 is surge arrester type 2 and class II according to EN 61643-11 and IEC 616431.
High energy surge protection, ns response speed
Complete device consists of a base part and pluggable module.
Remote alarm interface
These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 1-2 (according to IEC 1312-1 and EN 62305) for equipotential bonding and elimination of transient over voltages that originate during atmospheric discharges or switching processes.
High flame retardant, anti-corrosion
The TY-40 2P is suitable for use in TN systems.

AC 2P 40kA Surge Protection Device Installation:

The line of surge arresters includes a full range of compact protectors for installation on DIN rail
Green tab, normal work status, Red tab, failure status, need to be replaced rapidly
Installation must be performed only by electrically skilled operator
If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)



Company profile:



Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.



320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System 1



Shipping:



320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System 2



Certifications:



320V 35mm Din Rail 2P Type 2 Surge Protection Device For AC Power System 3



FAQ:



Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.

Q. How Could I Get A Sample?
A: Generally, we offer samples in 7-10 days while customer pay the sample fee and shipping cost.

Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.

Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.

Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.

Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.

Q: What's The Time Of Warranty.
A: We offer 2 years warranty.

Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
