|Place of Origin:||China|
|Model Number:||TY-40 4P|
|Minimum Order Quantity:||200 piece / pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||15-30 days after payment|
|Supply Ability:||50000 pieces per month|
|Standard:||IEC / EN 61643-11||Pole No.:||4P|
|Rated Voltage:||150V / 275V / 320V / 385V / 440V||Discharge Current (8/20us) In~Imax:||20kA~40kA|
|TA:||≤25ns||Mounting On:||35mm Din Rail|
Pluggable ac line surge protector,
SPD ac line surge protector,
20ka ac surge arrester

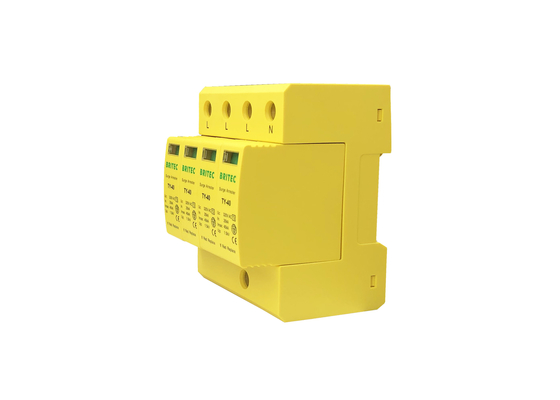

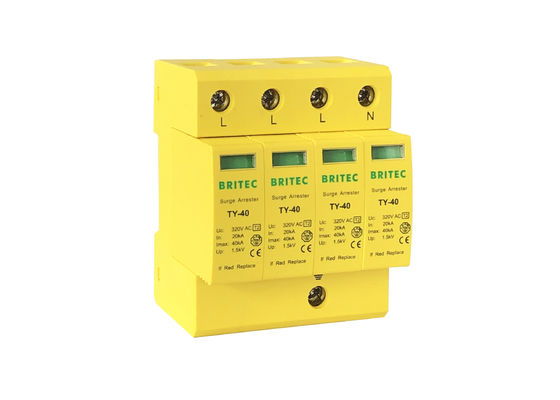

20ka-40ka Power Surge Protective Devices 320V Four Pole SPD Pluggable AC Surge Protection Plastic
20ka-40ka Power Surge Protective Devices 320V Four Pole SPD Product Details:
|TY150 40 4P||TY275 40 4P||TY320 40 4P||TY385 40 4P||TY440 40 4P|
|SPD classification according to EN61643-11||Type 2||Type 2||Type 2||Type 2||Type 2|
|SPD classification according to IEC61643-11||Class II||Class II||Class II||Class II||Class II|
|Max. continuous operating a.c. voltage Uc||150V||275V||320V||385V||440V|
|Nominal discharge current (8/20us) In||20kA||20kA||20kA||20kA||20kA|
|Max. discharge current(8/20μs) Imax||40kA||40kA||40kA||40kA||40kA|
|Voltage protection level Up||≤0.8kV||≤1.3kV||≤1.5kV||≤1.8kV||≤2.0kV|
|Voltage protection level 5kA Up||≤0.6kV||≤1kV||≤1.2kV||≤1.4kV||≤1.6kV|
|Max. backup fuse||125A gG||125A gG||125A gG||125A gG||125A gG|
|Response time tA||≤25ns||≤25ns||≤25ns||≤25ns||≤25ns|
|Operating temperature range Tu||-40℃-80℃||-40℃-80℃||-40℃-80℃||-40℃-80℃||-40℃-80℃|
|Operating state / fault indication||green / red||green / red||green / red||green / red||green / red|
|Cross-section area (Min.)||4mm2||4mm2||4mm2||4mm2||4mm2|
|Cross-section area (Max.)||35mm2||35mm2||35mm2||35mm2||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermal plastic UL94-V0|
|Degree of protection||IP20||IP20||IP20||IP20||IP20|
Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.
1. How can I get a quotation?
--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!
2. How to pay for order?
--T/T, Paypal, L/C, ect.
3. How can I trust you and your company?
--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 17 years ago, customers always make highly complimentary remarks
4. What’s the process of order?
--Send us Inquiry→get quotation→payment done→mass production.
5. When can I expect the customized product to be finished?
--Sample: 7-10 working days (Standard).
--Bulk order: 15-30 working days (Standard).
6. Delivery & Shipment
--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
Contact Person: Xu
