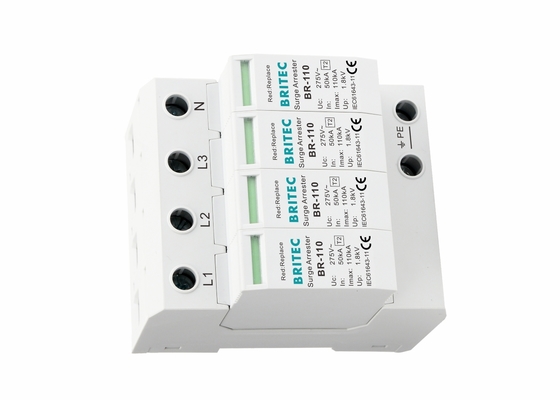

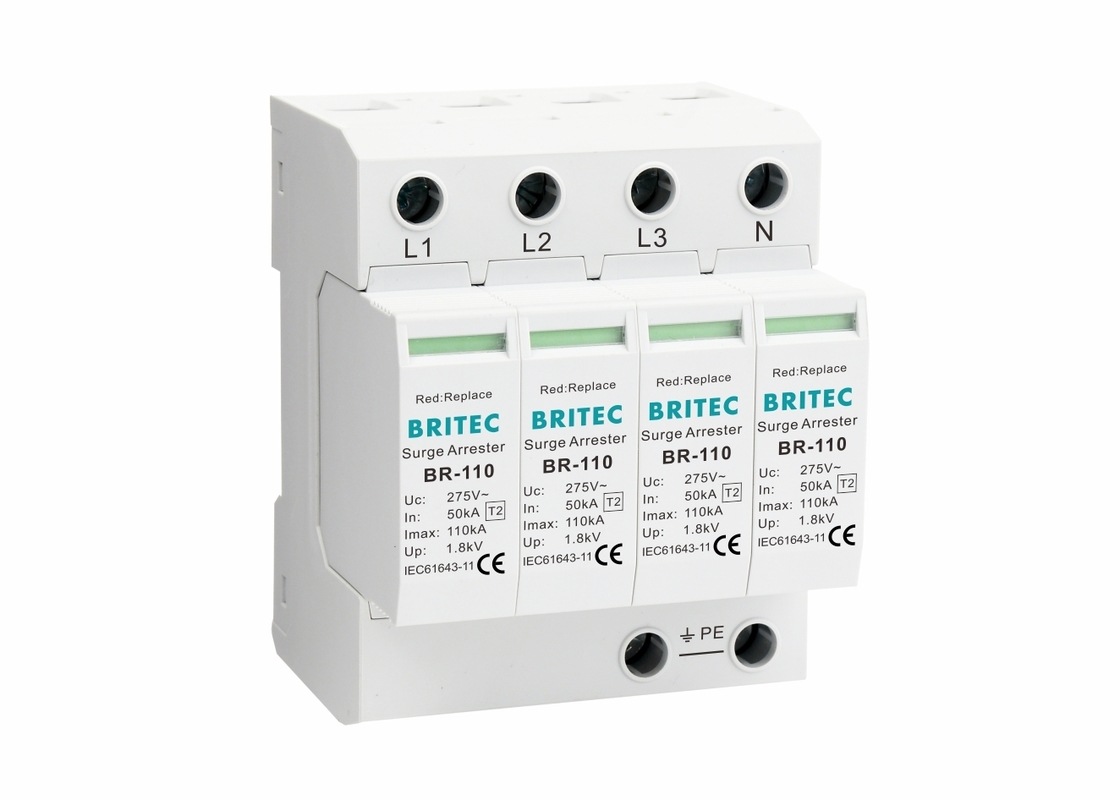

110kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage

110kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage

  • 110kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
  • 110kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
110kA SPD 4 Pole AC Power Surge Protector Low Residual Voltage
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-110 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 25 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 500000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protector Type: Type 2
Pole Number: 4P Uc: 275V/320V/385V
In: 50kA Imax: 110kA
Degree Of Protection: IP20 Material: Plastic
Tu: -40℃-80℃ Delivery Time: Shipped In 25 Days After Payment
Highlight:

100kA AC power surge protector

,

SPD AC power surge protector

,

4 pole ac voltage protector

Type 2 Power Lightning Protection 110kA SPD Features:



- Class II / Type 2 surge protection device.
- Available with nominal / maximum discharge current 50kA/110kA
- The core parts are metal oxide varistor components with high discharge capacity.
- Excellent performance and favorable price
- Low residual voltage and quick response.
- This surge protective device is used for lightning and overvoltage protection in AC50/60Hz, 230/400V.
- Reliable control
- BR-110 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
-Fault indication via red mark in the inspection window.



Type 2 Power Lightning Protection 110kA SPD Technology characteristic:



Specification BR-110 385 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage         Uc 385V
Max. discharge current (8/20µs)                Imax 110kA
Nominal discharge current (8/20µs)             In 50kA
Voltage protection level                               Up ≤2.5kV
Response time                                             tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Max. backup fuse 160A gG
Operating temperature range                      Tu -40℃—80℃
Cross-section area (Min.) 6mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermoplastic UL94-V0



Type 2 Power Lightning Protection 110kA SPD Application:



For using in the lightning protection zones concept at boundary 1-2.
The SPD surge protector can provide protection for three-phase power system from lightning strikes and voltage surge



Operational principle:

In common situation, SPD is under high resistance. When the power network is under surge over voltage caused by lightning or other reasons, the SPD will be immediately powered with in microsecond; it will release the surge over voltage into the earth and protect the electrical equipment connected on the power network. When the surge voltage gets through the SPD and disappeared, the SPD will return to high resistance status. Then it will not affect the normal operation of the power network.

Our quality is higher than thor surge protective device, same parameter as duval surge protective device catalog and eaton spd surge protective device.



Company information:



Britec Electric is specialized in manufacturing SPDs. We were established in 2003, located in Yueqing, Zhejiang, China. Our main products include AC surge arrester, DC surge protector, data surge protection device etc.
