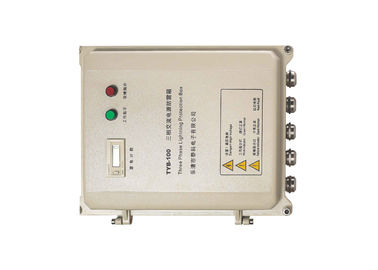

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase

  • 100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase
  • 100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase
100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TYB-50
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: Surge Protector Box
Model Number: TYB-50 Item Name: Lightning Protector Box
Tu: -40℃-85℃ Un: 380v
Uc: 385V Imax: 100kA
High Light:

lightning protection box

,

spd box

100kA 380V Industrial Three Phase Power Lightning Protector Box

 Technology characteristic:



• Response time: ≤25ns.
• Indicates operation status.
• Remote operated station.
• Lightning strikes counter function.
• Parallel ground connection installation.
• With stand up to 8/20us 140KA lightning surge current.


Product Details:


                                                                               TYB-50
Working Voltage                                               Un AC 380V
Max. Continuous Operating Voltage                 Uc AC 385V
Operating frequency                                         Hz 47~63Hz
Nominal Discharge Current (8/20μs)                 Ιn 50kA
Max. Discharge Current (8/20μs)                  Imax 100kA
Protection Mode L1 / L2 / L3 - N, N - PE
Voltage Protection Level at 60kA                     Up ≤3.0KV
Response Time                                                 tA ≤25ns
Connection Parallel
Connect wiring Kevin wiring
Standard Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001
Indication Green / Red
Operating temperature range                           Tu -40℃~+85℃
Relative humidity 5%~95%
Dimension(L×W×H) 295mmX220mmX86mm
Atmospheric pressure 74.8kPa~106kPa

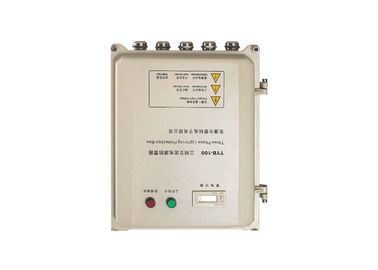

Product view:

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase 0

Application:

• Apply to communication, television broadcasting, computer room, automatic control and mechanical
  equipment and all distribution equipment lightning protection.
• To prevent critical electrical devices from high danger of loss when lightning occurs in 380V three
  phase systems.
• Used to sensitive electronic equipment, data centers, telecom centers, UPS rooms, intelligent
  mansions, and medical institutes.

Advantage:

• Low residual pressure.
• Fast response.
• Advanced lightning protection technique.
• High quality device for lightning protection.
• Assembled with sophisticated process.
• High rated discharge capacity.

Company information:

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase 1

Certificate:

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase 2

Shipping:

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase 3
Test:

100kA 380V Industrial Power Spd Box Lightning Protector With Three Phase 4


FAQ:


Q1: Do you provide warranty for the goods?

  A: Yes, we provide two years warranty for all the goods from us.



Q2: Could you provide technology support?

  A: We're in this field more than 17 years. If there's any problem, please contact with us, we'll provide

      suggestion from our engineer to help you solve problem.



Q3: What is your MOQ?

  A: We could provide you very small MOQ for each item.



Q4: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.



Q5: Can you provide discount?

  A: Yes, we are glad to offer your discount if you could order more pieces.
