Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply

Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply

    • Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply
    • Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply
  • Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: TYB-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Price: USD 40-80 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Item Name: Lightning Protection Box Type: SPD Box
    Frequency: 47~63Hz Voltage: 380~350V
    Imax: 100kA Tu: -40....+85°C
    TA: <25ns Up: ≤2.8KV
    High Light:

    lightning protection box

    ,

    spd box

    Lightning Protection Box For AC 230V Power Supply Surge Protection Box



    Product Details:

    • Failure warning.
    • Kevin wiring.
    • Color: Black.
    • Response Time: <25ns.
    • Counting function of lightning strike.



    Product characteristics:



                                                                                     TYB-100
    Working Voltage                                               Un 380V
    Max. Continuous Operating Voltage                 Uc 385V
    Operating frequency                                         Hz 47~63Hz
    Nominal Discharge Current (8/20μs)                 Ιn 50kA
    Max. Discharge Current (8/20μs)                  Imax 100kA
    Protection Mode L1 / L2 / L3 - N, N - PE
    Voltage Protection Level                                  Up ≤2.8KV
    Response Time                                                 tA ≤25ns
    Connection Parallel
    Standard Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001
    Indication Green / Red
    Operating temperature range                           Tu -40℃~+85℃
    Relative humidity 5%~95%
    Atmospheric pressure 74.8kPa~106kPa

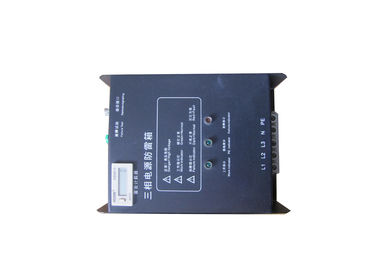

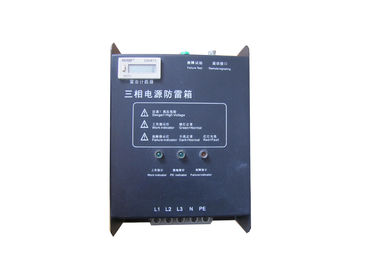

    Product view:

    Black Surge Protector Box , Lightning Protection Box For AC 380V Power Supply 0

    Application:

    • Used as a lightning protection device at the front of a 230V three-phase AC power supply system.
    • Used in the fields of meteorology, transportation, post and telecommunications, computer network,
      electronics, residence, railway and petrochemical industry, so as to effectively prevent the harm of
      over voltage to electrical equipment.

    Advantage:

    • Advanced design and maintenance.
    • Continuous anti lightning ability.
    • Failure indication description.
    • Lower residual voltage.

    Noted:

    • When the lightning protection SPD in the box is deteriorated, the remote signal alarm by the
      instruction lamp, indicating that the lightning protection box has no protection ability and needs to be
      replaced immediately.
