BR-25M 3+1 Type 1 Surge Protective Device with 25kA Iimp Pluggable Module and Thermoplastic UL94-V0 Enclosure

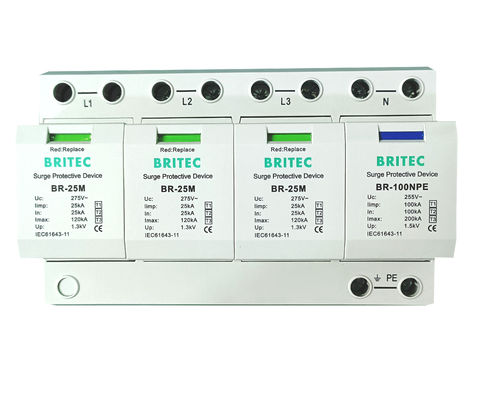

Large Image : BR-25M 3+1 Type 1 Surge Protective Device with 25kA Iimp Pluggable Module and Thermoplastic UL94-V0 Enclosure

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-25M 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	carton
Delivery Time:	15 days after receipt of deposit
Payment Terms:	TT
Supply Ability:	1000000 per month

Contact Now

BR-25M 3+1 Type 1 Surge Protective Device with 25kA Iimp Pluggable Module and Thermoplastic UL94-V0 Enclosure

Description

Iimp:	25kA	Weight:	1kgs
Technology:	Varistor	Origin:	Wenzhou
Enclosure Material:	Thermolplastic UL94-V0	Usage:	Low Voltage
Operating Temperature:	-40°C To 80°C	One Pole Product Width:	36mm
Highlight:	Type 1 surge protection device , Industrial surge protective device , Class 1 surge arrester

BR-25M 3+1 Surge Protective Device - Industrial Power Protection

Surge Protection Device (SPD) is a device that provides over voltage protection for various electronic equipment, instruments and communication lines. When there is a sudden power spike in an electrical circuit or communication line due to external interference, the Surge Protective Device (SPD) can conduct and discharge in a very short time to prevent the power surge damaging other parts of the circuit.

Surge protective devices (SPD) are widely used in power system and network to play a big role for over-voltage protection.

Key Features

Remote Signal Contact optional and Failure Indication
Pluggable Module for Easy Replacement
IEC 61643-11 Compliant
Internal Thermal Protection, Fail-safe Design

Product Name: Type 1 Surge Protection Device

Iimp: 25kA

Application: Commercial/Industrial

One pole Product Width: 36mm

Product Structure: Pluggable

Weight: 1kg

Technical Parameters

Usage	Low Voltage
Rated Voltage	150V/275V/320V/440V
Technology	Varistor
Origin	Wenzhou
One pole Product Width	36mm
Iimp	25kA
Enclosure Material	Thermoplastic UL94-V0
Product Structure	Pluggable
Protection Level	Type 1+2+3
Weight	1kg

Applications

BRITEC's BR-25M 3+1 surge protection device, a Type 1 SPD suitable for commercial and industrial applications, offers reliable protection against power surges. Manufactured in China, this product meets high standards with certifications such as TUV, CB, CE, ROHS, and ISO9001.

With a surge capacity of 25kA, the BR-25M 3+1 is designed to safeguard low voltage systems in various scenarios. Its pluggable structure makes installation and maintenance convenient, weighing only 1kg for easy handling.

Whether it's protecting sensitive equipment in office buildings, factories, or other industrial settings, this surge protector is a vital component in preventing damage from electrical transients. Its wide operating temperature range of -40°C to 80°C ensures durability even in extreme conditions.

Customization & Ordering

Brand Name: BRITEC

Model Number: BR-25M 3+1

Place of Origin: China

Certification: TUV/CB/CE/ROHS/ISO9001

Minimum Order Quantity: 10PCS

Packaging Details: Carton

Delivery Time: 15 days after receipt of deposit

Payment Terms: TT

Supply Ability: 1,000,000 per month

Operating Temperature: -40°C to 80°C

Technical Support & Services

Our Product Technical Support team for the Type 1 Surge Protection Device is dedicated to providing assistance with any technical issues or questions you may have regarding the product. Our team is knowledgeable and experienced in troubleshooting and resolving any issues that may arise.

In addition, we offer a range of services to support our Type 1 Surge Protection Device, including installation assistance, maintenance plans, and warranty services. Our goal is to ensure that your surge protection device operates effectively and efficiently to protect your valuable equipment and assets.
