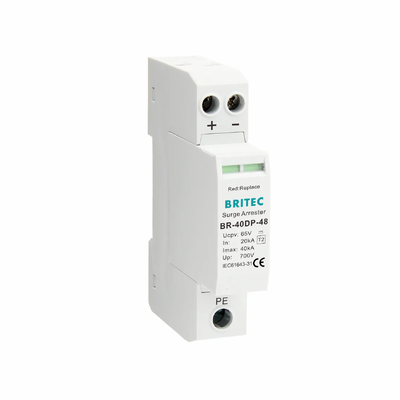

Name: 48v 40ka Type II Class C Pluggable DC Surge Protection Device
Brand: BRITEC
SKU: TY-40 48
Price: 1 USD
Availability: InStock
Rating: 5 (124 reviews)

Home Products DC Surge Protection Device

48v 40ka Type II Class C Pluggable DC Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	TY-40 48

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Type:	DC Power Surge Protector 48VDC	Class:	Class II
Connection Mode:	+/-/PE	Item Name:	DC Surge Protective Device
Material:	Thermal Plastic UL94-V0	Un:	DC 48V
Uc:	DC 65V	Max. Discharge Current:	40kA
Voltage Protection:	≤300V	Response Time:	≤25ns
High Light:	40ka Pluggable DC Surge Protection Devic , Class C DC Surge Protection Devic , 48v type 2 surge protector

48v 40ka DC Surge Arrester Type II Power Lightning Arrester Class C Pluggable Surge Protection

48v 40ka DC Surge Arrester Type II Power Lightning Arrester Features:

- DC surge protector specially used for DC system 48V.

- Below 25ns Response Time

- The core parts are metal oxide varistor components with high discharge capacity.

- 40kA Maximum Discharge Current

- Remote signaling contact for control device.

- No leakage, no operating currents

- Fault indication via red mark in the inspection window.

48v 40ka DC Surge Arrester Type II Power Lightning Arrester Product detail:

2 Mod	TY-40 48
SPD classification according to IEC61643-1	Class II
Operating Voltage Un	DC 48V
Max. Continuous Operating Voltage Uc	DC 65V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	＜300V
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Technology	MOV
Format	Plug-in modular
Protection Mode	+/PE,-/PE
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Standards compliance	IEC 61643-11 / EN 61643-11 / UL1449 ed.4/GB 18802.1

Dimension:

48v 40ka Type II Class C Pluggable DC Surge Protection Device 0

48v 40ka DC Surge Arrester Type II Power Lightning Arrester Installation Notes:

• Installation must be performed only by electrically skilled operator.

• Disconnect power before installing, no hot-line operation is allowed, and better to under the guidance of professional electrician.

• For best performance, mount protector in parallel with the equipment it is protecting as close as possible. (*Note: If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)

• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.

DC 24v Surge Protector 2P 40KA Lightning Arrester Advantage:

• Module designed.

• No follow currents.

• High MOV resistance.

• Color is customizable.

• Logo is customizable.

• 35mm din rail mounted.

• High discharge capacity.

• Package is customizable.

• Mechanical Status Indicator.

• Easy changing of the surge protection module.

Company information:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

48v 40ka Type II Class C Pluggable DC Surge Protection Device 1

Certificate:

FAQ:

Q1. Where is your factory?

A: Our factory is located in Yueqing city, Zhengjiang Province.

Q2. When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please tell us in your e-mail so that we will pay more attention to it.

Q3. How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality. If you need the sample, we will charge for the sample fee and express fee. Moreover, the sample fee can be refunded after you place the order to us.

Q4. What kind of files do you accept for drawing?

A: PDF, Core Draw, high resolution Jpg, etc.

Q5. Can you do the design for us?

A: Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
