50kA Class B Surge Arrester Type 1 SPD Surge Protector for Lightning Protection

Large Image : 50kA Class B Surge Arrester Type 1 SPD Surge Protector for Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/TUV/CB
Model Number:	BR-50GR 1P
Document:	BR-50GR 1P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

50kA Class B Surge Arrester Type 1 SPD Surge Protector for Lightning Protection

Description

Item Name:	Surge Protector	Usage:	Low Voltage
Safety Standards:	IEC61643-1	Uc:	275V
Iimp:	50kA	In:	50kA
Type:	Class B	Pole No.:	1P
Keyword:	Lightning Protection	Protection:	IP20
Rated Voltage:	230V/400V	Type Item:	Surge Arrester
Highlight:	lightning protection device , lightning surge protector

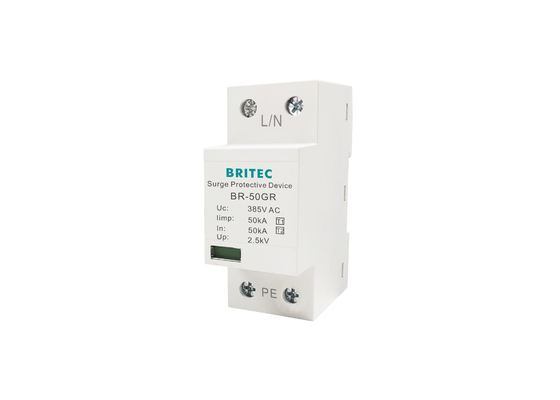

50kA Class B Surge Arrester 1P 385Vac Class I Surge Protector Type 1 SPD

Product Features

Meets Type 1 requirement class according to IEC 61643-11
Red indicator shows functionless status - immediate replacement required
Connection capacity: rigid conductor 35mm²
Equipped with thermal disconnection device and real-time fault indicators for complete operational safety
Easy to install in any standardized distribution panel or control cabinets

Product Specifications

Item name	Surge arrester
SPD classification according to EN61643-11	Type 1
SPD classification according to IEC61643-11	Class I
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) Iimp	50kA
Nominal discharge current (8/20us) In	50kA
Voltage protection level Up	≤2.0kV
Max. backup fuse	315A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃ to +80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²

Dimensions

Applications

Provides protection against surge current resulting from direct or indirect lightning strikes or similar surge voltages.

Shipping

Factory

Certifications

Frequently Asked Questions

Q1. What's the payment term?

A1. We accept T/T, PayPal, etc.

Q2. What's the delivery time?

A2. Usually it takes about 30 days for production.

Q3. What is the standard of package?

A3. Export standard package or special package according to customer requirements.

Q4. What kind of product quality does your factory offer?

A4. We offer the most competitive prices with the best quality.

Q5. Do you accept OEM and ODM business?

A5. We do. For OEM service, please send us your authorization, and your quantity should be large enough.

Q6. Could you offer a certificate of origin?

A6. Yes.

Q7. What kind of certificates do you have?

A7. Our company has achieved ISO certification, and for products, we have CE, CB, TUV, etc.
