| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-25M 3+1 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Brand Name: | BRITEC |
|---|---|---|---|
| Usage: | Low Voltage | Rated Voltage: | 230V / 400V |
| Uc: | 275V | Iimp: | 25kA / 100kA |
| In: | 25kA / 100kA | Imax: | 100kA |
| Uoc: | 20kV | Ifi: | 100A Rms |
| Highlight: | lightning protection device,lightning surge protector |
||

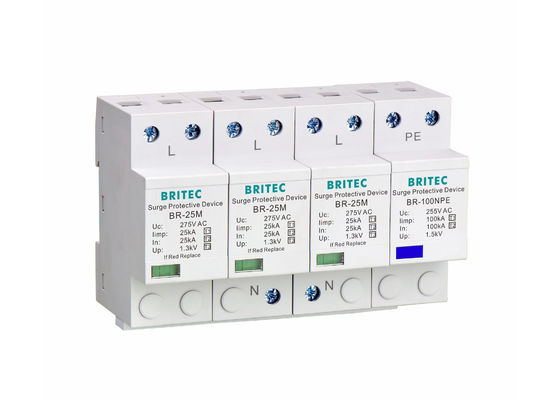

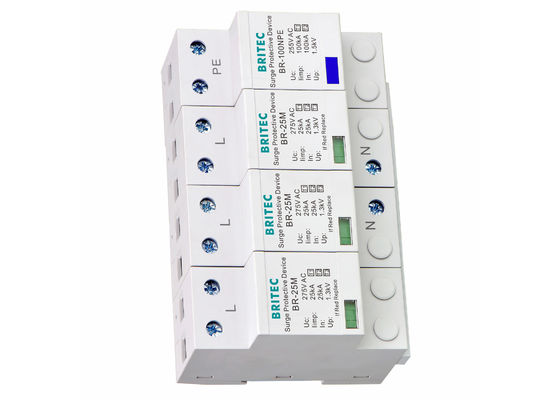

Class l Type 1 Lightning Protection Device B+C SPD 25KA Surge Protective Device
Class I Type 1 B+C SPD Power Surge Protection Device Feature:
Class I Type 1 B+C SPD Power Surge Protection Device Product detail:
| BR-25M 3+1 | |
| SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
| SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
| Nominal voltage Un | 230/400 V AC |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) (L-N / N-PE) Iimp | 25kA / 100kA |
| Nominal discharge current (8/20us) (L-N / N-PE) In | 25kA / 100kA |
| Maximum discharge current (8/20us) (L-N / N-PE) Imax | 100kA |
| Combined impluse Uoc | 20kV |
| Voltage protection level (L-N / N-PE) Up | ≤1.3kV / 1.5kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
Dimension:
Company information:
Wenzhou Britec Electric Co.,Ltd. established since 2003, is one professional SPD manufacturer in Zhejiang Province, China. We are located in Yueqing city. We specialize in design,manufacture and sell all variety of high quality surge protection products. Our specialty is to provide the customized products, and OEM/ODM products, etc. Here we are sincerely hope to establish one good long-term business relationship with customer through this opportunity, based on equal, mutual beneficial and win-win business from now till the future.
Certification:
Packaging & Shipping:
• Export carton.
• Both neutral and customized packaging are available.
• Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
FAQ:
Q1. MOQ?
A: Generally if you choose the different products, our minimum order quantity also will be different.
Q2. Payment?
A: Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q3. Delivery time?
A: The goods need 20 days to be made after receive deposit.
Q4. Why choose us?
A: We are manufacturer. We are confident that with our products Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction. 100% QC inspection before shipping. OEM is available.
Q5. Our 100% Promise:
A: 24 hours online service. The above product photos are coming from main production.
