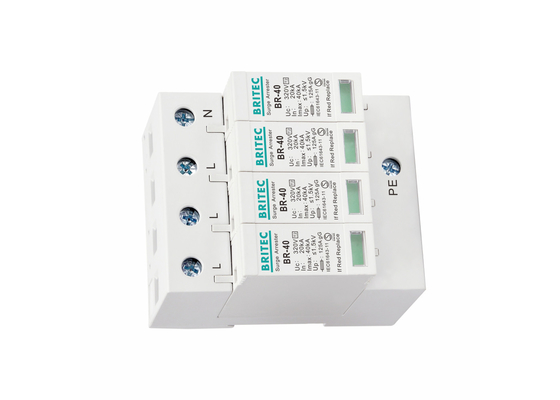

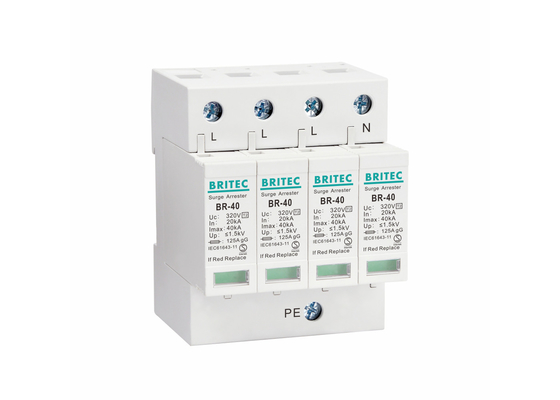

4 Poles Power Surge Protection Device AC Surge Protector 385V

4 Poles Power Surge Protection Device AC Surge Protector 385V

  • 4 Poles Power Surge Protection Device AC Surge Protector 385V
  • 4 Poles Power Surge Protection Device AC Surge Protector 385V
4 Poles Power Surge Protection Device AC Surge Protector 385V
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: AC Surge Protector Material: Plastic
Pole Number: 4P Protection: IP20
Certificate: CE Tu: -40℃-80℃
Uc: AC 385V In: 20kA
Imax: 40kA Usage: Low Voltage
High Light:

lightning surge protector

,

power surge arrester

4 Poles AC Surge Protector 385V Thermal Plastic Material Surge Protector



4 Poles Power Surge Protection Device Features:



• High energy surge protection.

Pluggable replacement module.
Standard modular installation.
Reaction rate: ≤25ns.
Remote alarm interface.
The maximum discharge current of single module is 40kA (8/20us).
Failure detection indicator.
Anti-shock, flame retardant plastic are adopted.



4 Poles Power Surge Protection Device Technology characteristic:



                         BR385-40 4P
Max. continuous operating a.c. voltage                               Uc 385V
Nominal discharge current (8/20us)                                      In 20kA
Voltage protection level                                                        Up ≤1.8kV
Response time                                                                      tA ≤25ns
Nominal freqency 50/60Hz
Max. discharge current(8/20μs)                                        Imax 40kA
Installation Indoor
Degree of protection IP20
Max. backup fuse 125A gG
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2



Dimension:



4 Poles Power Surge Protection Device AC Surge Protector 385V 0



4 Poles Power Surge Protection Device Advantage:


• After strict screening of high-quality lightning protection chips, the reliability is higher.
The flow capacity is fast, the response time is fast, and the residual voltage is low.
Modular design, simple maintenance and beautiful appearance.
Fast response time, action in nanosecond time. 35mm international standard rail design for easy installation.



4 Poles Power Surge Protection Device Application:

Widely applied in the fields of telecommunication, railways, urban lighting, power supply, and television.



Operating environment:



Operating temperature: -40℃~+80℃.

Relative humidity: 5%-95%.

Atmosphere pressure: 70kPa~106kPa.



Reference standards:



IEC 61643-1:2005 Low-voltage surge protective devices-Part 1: Surge protective devices connected to low-voltage power distribution systems-requirements and tests.



4 Poles Power Surge Protection Device AC Surge Protector 385V 1



Company Information:


Wenzhou Britec Electric Co., LTD, established in the year of 2003 is an enterprise engaged in technology design, manufacturing and trading. Britec hires a number of outstanding technical development, marketing, and management personnel. Since Britec founded, it mainly specialized in the research and development, production and sales of SPDs production. We have passed the ISO international quality certificate. Since the company established, it focusing on a large scale production. Depends on the advanced technology and good performance, our production is accepted by more and more users, which helps our company to establish its credibility in the industry. Year by year, our average sale is increasing. All the production has been distributed all over the country as well as the overseas markets including South America, South-east Asia, and Europe, etc.



4 Poles Power Surge Protection Device AC Surge Protector 385V 2



Shipping:



4 Poles Power Surge Protection Device AC Surge Protector 385V 3



FAQ:



Q1: How to get a sample?
A1: Sample order is acceptable. Please contact us and make sure what sample do you need.



Q2: What about the leading time?
A2: In general, the leading time is about 20 days. But please confirm the exact delivery time with us as different products and different quantities will have different leading times.



Q3: How about the packing and shipping?
A3: Normally, we have cartons for packaging. If you have any other special requirements, please feel free to contact us.



Q4: How about the OEM/ODM service?
A4: We can provide OEM/ODM service, please contact with us to make sure the detail things before placing order.



Q5: How about the payment clause?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery. Paypal are also available.
