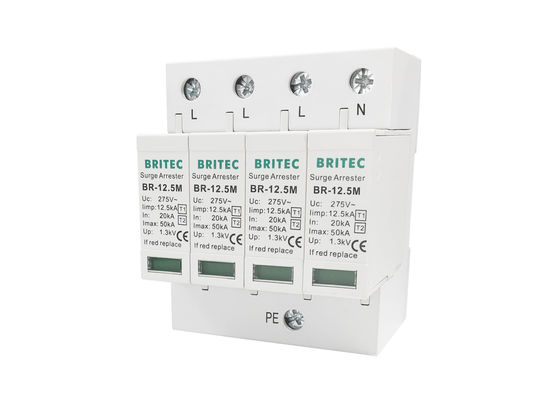

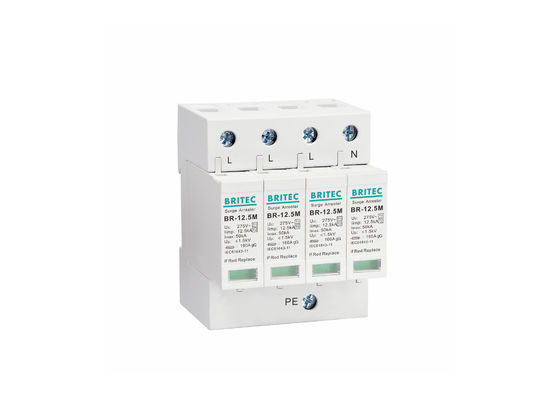

12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection

Certification
China Britec Electric Co., Ltd. certification
China Britec Electric Co., Ltd. certification
I'm Online Chat Now

12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection

12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection
12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection

Large Image :  12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-12.5M 275 4P
Document: BR-12.5M 4P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month

12.5kA Type 1+2 4P Power Surge Protection Device AC 275V SPD for Three Phase Lightning Protection

Description
Item Name: SPD Material: Thermoplastic
Pole Number: 4P Protection: IP20
Uc: 275V Iimp: 12.5kA
In: 25kA Imax: 60kA
Usage: Low Voltage Tu: -40℃-80℃
Keyword: Lightning Protection Class: Type 1+2
Type Item: Power Surge Protection Device For Mounting On: 35mm Din Rail
Protection Level: 1.3kv Response Time: Less Than 25 Nanosecond
Status Indicator: Mechanical Visual Indicator
Highlight:

lightning surge protector

,

power surge arrester

Product Features
  • Designed according to IEC and GB standards.
  • Strong surge discharge capacity, with discharge currents of 60kA (8/20μs) and 12.5kA (10/350μs) per pole, providing multi-level protection for low-voltage distribution systems.
  • Modular design with 35mm DIN-rail mounting.
  • Complies with the criteria of Low-voltage Surge Protective Devices — Part 1: Performance Requirements and Test Methods for Surge Protective Devices in Low-voltage Power Distribution Systems.
Technical Specifications
Model BR-12.5M 275 4P
Applicable Power Supply System TN-S system
Max. Continuous Operating AC Voltage (Uc) 275V
Lightning Impulse Current (10/350μs) (Iimp) 12.5kA
Nominal Discharge Current (8/20μs) (In) 25kA
Max. Discharge Current (8/20μs) (Imax) 60kA
Voltage Protection Level (Up) ≤1.3kV
Response Time (tA) ≤25ns
Operating State / Fault Indication Green / Red
Remote Alarm Function Optional
Cross-section Area (Min.) 4mm²
Cross-section Area (Max.) 35mm²
Mounting 35mm DIN rail
Enclosure Material Thermoplastic UL94-V0
Degree of Protection IP20
Operating Temperature Range (Tu) -40℃ to 80℃
Relative Humidity ≤95%RH
Dimensions
Dimensional drawing of the AC 275V 12.5KA 4P three-phase surge protection device showing module width and mounting dimensions
Application

Applicable to low-voltage distribution system protection.

Payment Terms
  • 100% in advance (contract value less than $5,000).
  • 30% in advance; the balance payment should be paid before shipment.
Payment method icons accepted for orders of the surge protection device
Company Information

Established in 2003, the company concentrates on new lightning protection technology, research and development of new products, production, and service. It covers four product series: AC lightning protection products, DC power line surge protection products, signal line surge protection products, and LED surge protection products, with more than 100 product varieties. Products are CE, TUV, and CB certified, and the company has passed the ISO9001 International Quality Management System.

Company facility and production workshop for lightning protection product manufacturing
Frequently Asked Questions
Q1. Are you a manufacturer or a trading company?

A: We are a factory with 23 years of experience, supported by a trade team for international service.

Q2. What terms of payment do you usually use?

A: T/T 30% deposit and 70% balance before shipment.

Q3. What is your lead time for your goods?

A: Normally 30 days after confirmed order.

Q4. How does your factory handle quality control?

A: Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping.
