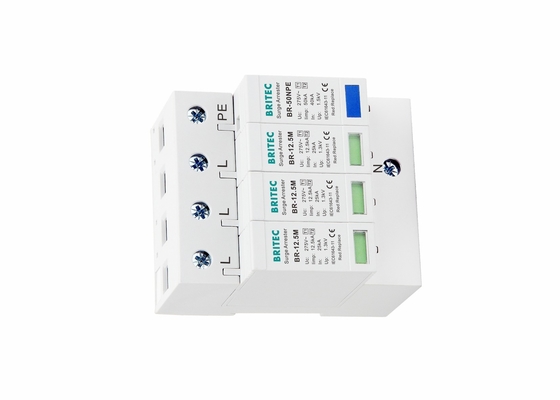

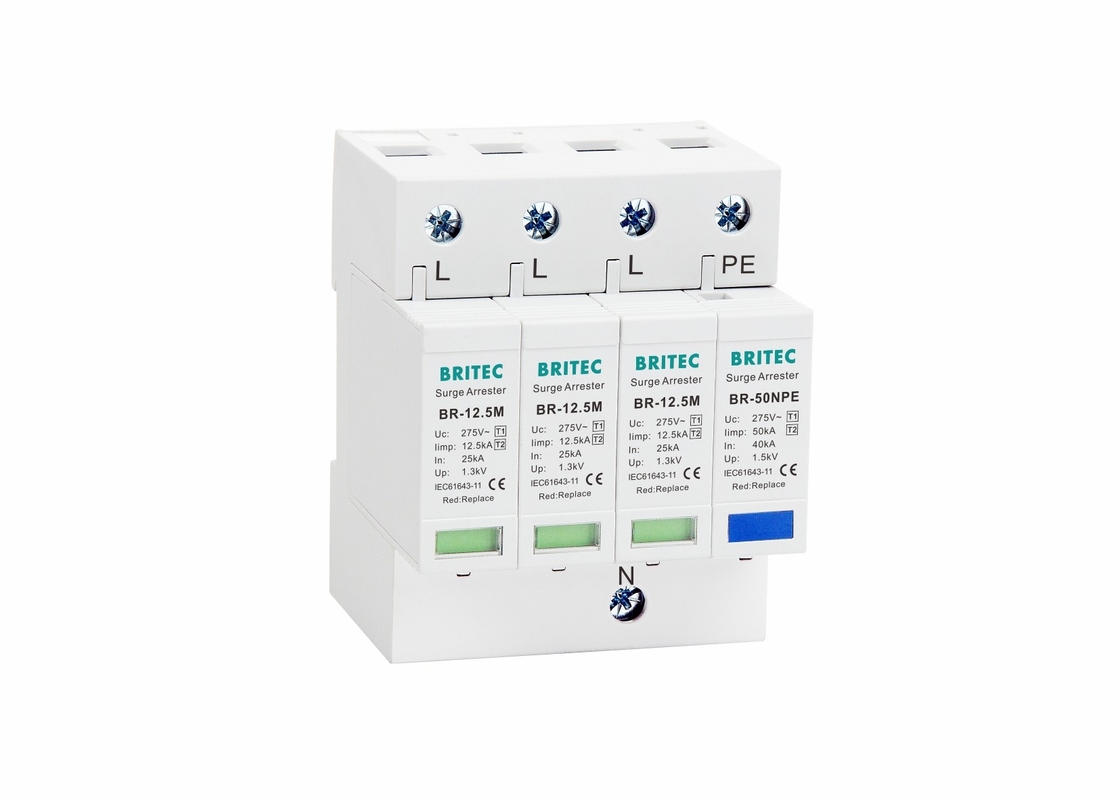

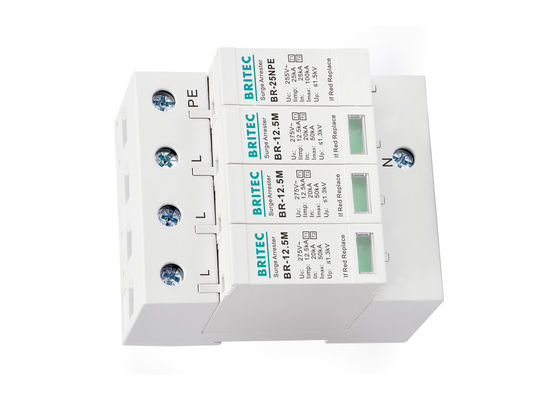

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current
CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current
CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-12.5M-275 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: SPDs Standard:: IEC61643-11 / EN 61643-11
Types Of Surge Suppressor: Type 1+2 Class: B+C
Pole Number:: 3P+NPE Rated Voltage: 230V
Uc: 275V Iimp(10/350μs): 12.5kA
Voltage Protection Level: ≤1.3kV/≤1.5kV Material: Thermalplastic
High Light:

12.5KA lightning arrester surge absorber

,

CE lightning arrester surge absorber

,

Class B+C lightning absorber


New Class B+C 12.5KA Surge Protection Whole House Lightning Absorber


New Class B+C 12.5KA Surge Protection Characteristic:

- New Iimp 12.5kA surge arrester.
- BR-12.5M 3+1 surge protective device (SPD) is suitable for AC 50/60Hz TT power supply system.
- Special design for saving installation space.
- It protect to indirect and direct lightning effect or other transient over voltage
- High discharge current.
- SPD design according with GB18802.1/IEC61643-1 standard.
- Indication window for clear display of SPD status, each pole with one indication window.


New Class B+C 12.5KA Surge Protection Parameter:


 BR-12.5M-275 3+1
SPD classification according to EN 61643-11Type 1 + Type 2
SPD classification according to IEC 61643-11Class I + Class II
Max. continuous operating a.c. voltage                         Uc275V/255V
Lightning impluse current (10/350us)                          Iimp12.5kA/25kA
Nominal discharge current (8/20us) (L-N / N-PE)           In20kA / 25kA
Max. discharge current (8/20us) (L-N / N-PE)            Imax50kA / 100kA
Voltage protection level (L-N / N-PE)                             Up≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE)                     Up≤1.0kV / ≤1.5kV
Max. backup fuse160A gG
Response time (L-N / N-PE)                                           tA≤25ns / ≤100ns
Operating temperature range                                         Tu-40℃—80℃
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Protection degreeIP20
Enclosure material                 Thermal plastic UL94-V0


Technology characteristic:


CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current 0


New Class B+C 12.5KA Surge Protection Application:

This kind of Type 1+2 surge suppressor is designed as per latest IEC 61643-11 for installation at LPZ 0A -2, protecting low voltage equipment against lightning and surge damages.

New Class B+C 12.5KA Surge Protection Main Features:

Three phases type 1+2 surge suppressor for TT system protection.
Adopted hermetical MOV and GDT technology, high follow current extinguish capability.
Double thermal disconnection device, providing higher protection.

Certification:

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current 1

Shipping:

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current 2


About us:

Britec Electric Wenzhou Co., Ltd. has been committed to low voltage surge arrester products’ designing, R&D, manufacturing and marketing for 17 years. Britec factory locates in Wenzhou, Zhejiang, China. We own well-trained workers, rich experience production and R&D engineers. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as CE, CB, TUV. Our team can develop and test new products to meet variable markets’ tailored demands. Britec branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 50+ countries and districts.

CE Class B+C 12.5KA Lightning Arrester Surge Absorber High Discharge Current 3

FAQ:

Q1: We have our own design, do you offer OEM & ODM servies?
  A: Yes, please share with us your detailed requirements and drawing.


Q2: How about the MOQ requirement for surge protection?
  A: 100pcs.

Q3: If sample fee can be free or refundable?
  A: Sample fee (wihin USD150) can be refunded after receiving firm order.
