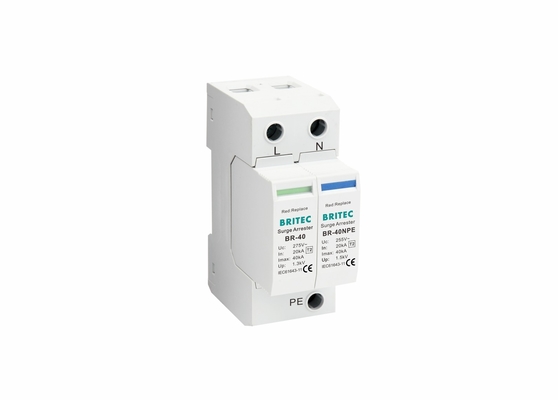

Name: TVSS 220V 40KA Din Rail Power Lightning Surge Arrester Single Phase
Brand: BRITEC
SKU: TY-40 320 1P+NPE
Price: 1 USD
Availability: InStock
Rating: 4.7 (150 reviews)

Home Products Surge Protection Device

TVSS 220V 40KA Din Rail Power Lightning Surge Arrester Single Phase

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	TY-40 320 1P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Number Of Poles:	1P+NPE
Rated Voltage:	230V	Uc(N-PE):	255V
Maximum Operating Voltage:	150V / 275V / 320V / 385V / 440V	In:	20kA
Imax:	40kA	Protection Voltage:	≤1.5kV
Phase:	Single Phase	Mounting:	Din Rail
High Light:	40KA lightning surge arrester , TVSS lightning surge arrester , 40KA power surge arrester

TVSS 220V Lightning Arrester 40KA Surge Protector Devices 1P+NPE SPDs Din-Rail Mount Britec TY-40

TVSS 220V Lightning Arrester 40KA Surge Protector Devices Product Description:

• The surge arrestors TY-40 meet the type 2 requirement class according to IEC 61643-11.

• Britec’s TY-40 series of SPDs are designed for equipment protection from transient overvoltage events.

• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.

TVSS 220V Lightning Arrester 40KA Surge Protector Devices Product Details:

	TY150 40 1P+NPE	TY275 40 1P+NPE	TY320 40 1P+NPE	TY385 40 1P+NPE	TY440 40 1P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Technology characteristic:

TVSS 220V 40KA Din Rail Power Lightning Surge Arrester Single Phase 0

TVSS 220V Lightning Arrester 40KA Surge Protector Devices KEY FEATURES:

+ Connectable surge arrestor

+ SPDs look to limit the overvoltage surges that can occur in sub-distribution boards where sensitive equipment is stored.

+ High arresting capacity

+ Thermal protection incorporated to eliminate catastrophic failures

+ Visual status display

+ IP 20 finger-safe protection rating

+ Available with optional remote signalling

+ Varistor technology

+ Vibration-proof

+ 35 mm DIN rail, EN60715 compliant

+ Simple standard hat rail mounting

+ Designed for easy installation in existing AC Panelboards and control panels

+ Labelled connections.

When to use lightning arresters?

• Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. The range is highly versatile and can be used in protecting the likes of: Energy supplies; Building installation equipment; Telecommunications; Wind power; Machine-building; Datacenters.

230 Vac MOV 40 kA Power Supply Class II AC Surge Protector Advantage:

1. CE,TUV,CB,ISO9001 Certificates

2. More than 17 years, manufacture experience

3. 90% of our products are exported to Europe, south America, Africa and Asian other countries.

4. Strong technological capacity, advanced production testing equipment.

About us:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.

TVSS 220V 40KA Din Rail Power Lightning Surge Arrester Single Phase 1

Shipping:

Certificate:

TVSS 220V 40KA Din Rail Power Lightning Surge Arrester Single Phase 3

FAQ:

1. When can I pick up my goods after purchase?

A: We usually arrange the delivery within 20 work days after purchase of SPDs. It takes about 7 work days to your place by express. If you want further info, you can contact us.

2: Can we get samples and how long can get them?
A: Yes, samples could be offered, delivery time 5-10 days. But the sample fee and freight for express is on buyer’s account. You can also call your local express to pick up samples from our office.

3: Can you produce customized product?
A: Yes. The color, logo could all be customized according to your personalized requirements.

4: What is your MOQ?
A: Our MOQ is 100pcs, depends on the product you need.

5: Which payment way is workable?
A: T/T, L/C, PayPal for your selection.
