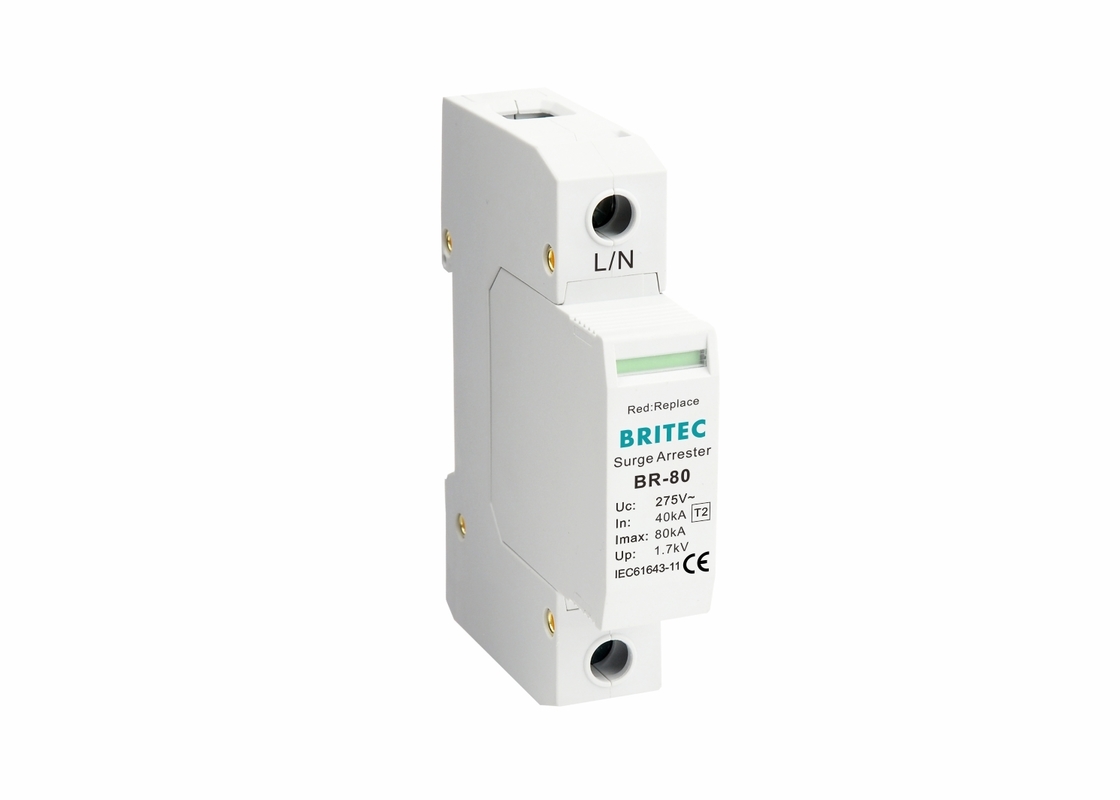

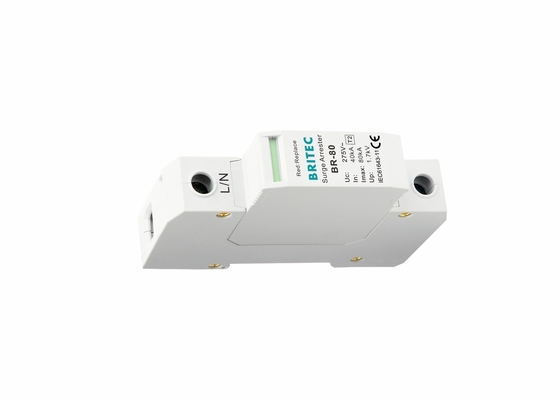

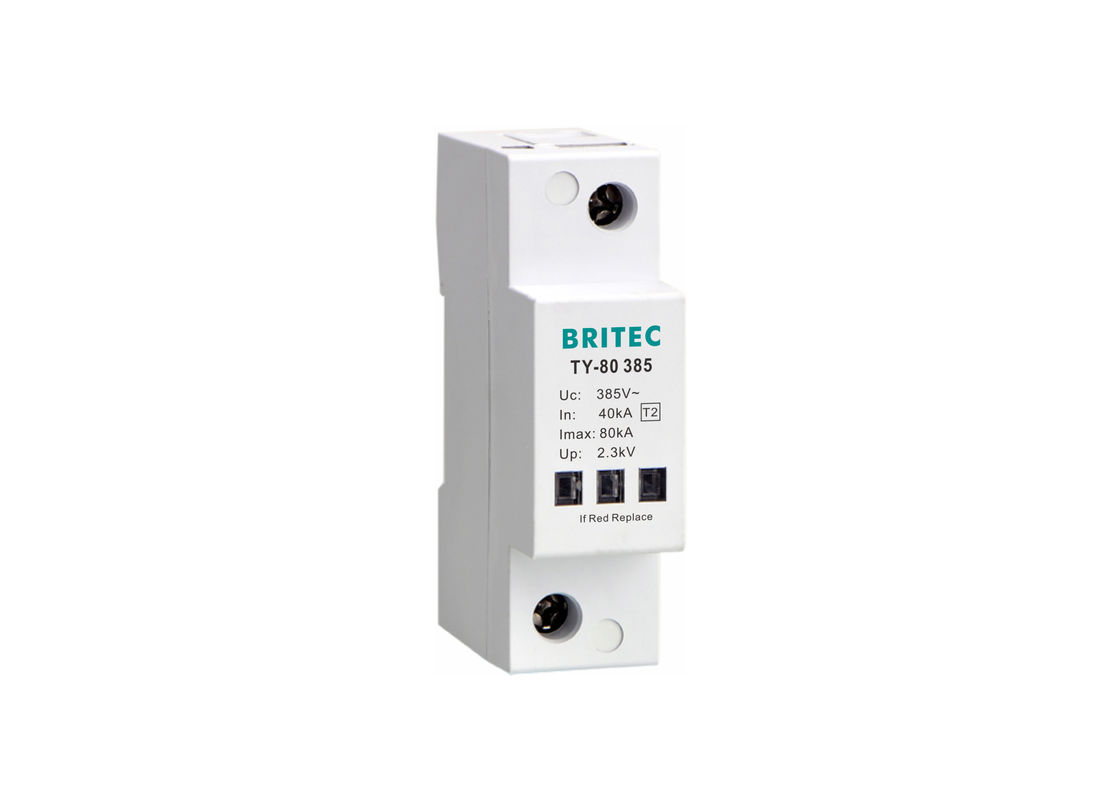

1P 80KA Lightning Induction Household Type 2 Surge Protector

1P 80KA Lightning Induction Household Type 2 Surge Protector

  • 1P 80KA Lightning Induction  Household Type 2 Surge Protector
  • 1P 80KA Lightning Induction  Household Type 2 Surge Protector
1P 80KA Lightning Induction  Household Type 2 Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TY-80 385 1P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Type: Type 2 T2
Phase: Single Phase Uc: 385V
In: 40kA Imax: 80kA
Pole Number: 1P Protection: IP20
Product Name: AC SPD Tu: -40℃-80℃
High Light:

80KA type 2 surge protector

,

1P type 2 surge protector

,

80KA type 2 surge arrester

SPD Factory 1P 80KA Lightning Induction Arrester AC 50/60Hz 230V/400V Household Protection



SPD Factory 1P 80KA Lightning Induction Arrester Key Information:

Pole: 1P, 2P, 3P, 4P, 1+1, 3+1.
The internal components have accurate chips, and better thunder protection
Voltage: AC 275V/320V/385V/420V
Simple maintenance and convenient use.
kA: 40kA—80kA.
With strict quality control and quality assurance, high safety factor, can be used with peace of mind
Width: 27mm per pole.
Installation Method: Rail installation
kV: Up≤2.0V--2.5KV.
Scope of Application: Electrical.


SPD Factory 1P 80KA Lightning Induction Arrester Parameters:



Model Name TY-80 385 1P
Brand BRITEC
Product Type Surge Protection Device
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max. Continuous Voltage                            Uc 385V
Max. discharge current (8/20µs)              Imax 80kA
Norminal discharge current (8/20µs)            In 40kA
Voltage protection level                               Up ≤2.3kV
Max. backup fuse 250A gG
Response time                                             tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Manufacturer Guarantee 2 Years Guarantee
No. of Phases Single-Phase
Number of Poles one pole
Operation temperature range -40 ~ +80 degree
Remote control contacts Optional



SPD Factory 1P 80KA Lightning Induction Arrester General:

TY-80 series surge arrester mainly applies at power line of AC 50Hz/60Hz, rated operational voltage 230V and 400V to limit instantaneous over-voltage (lightning induction and switching over-voltage).
Protection Type: Level 2
It makes the protected electrical device and parts lower one level at occasion of higher over-voltage category, and lower down the voltage further when applied at terminal to protect devices.
Response Time: 25ns.

SPD Factory 1P 80KA Lightning Induction Arrester Application:

Widely used in sub-distribution box.

Our Services:

1) Reply inquiry in 24 hours.
2) Answer your question detailed.
3) Freight forwarder: faster, safer, and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.



Company profile:



Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.



1P 80KA Lightning Induction  Household Type 2 Surge Protector 0



Our certificate:



1P 80KA Lightning Induction  Household Type 2 Surge Protector 1



Packing&Shipping:


Our products will be packed as follow: box inside, carton outside~
Shipping: By sea, by air or by express up to customer



1P 80KA Lightning Induction  Household Type 2 Surge Protector 2



FAQ:



1.Q: What is the MOQ of an order?
A: We accepts 1 unit as trial order.


2.Q: What are your payment methods?
A: T/T, 30% in advance, 70% balance before delivery.


3.Q: What is the delivery time?
A: It takes about 20 days usually after receipt of your deposit. Please check with us if available stock.


4.Q: How about customization?
A: ODM/OEM business partner will be warmly welcome. Please contact us for more details.


5.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing city, Zhejiang province.
