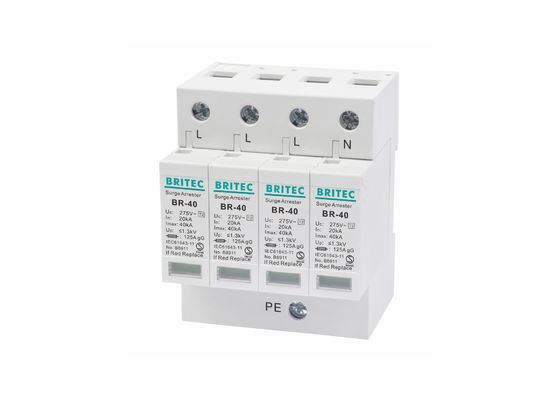

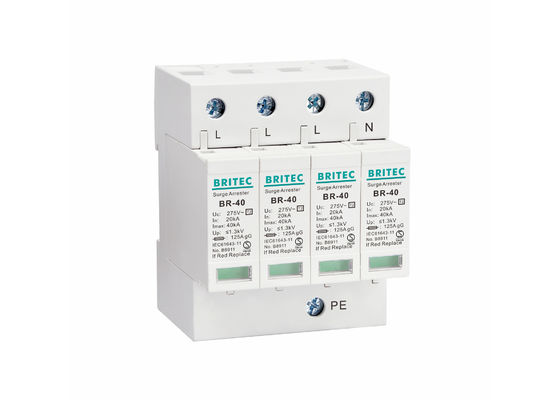

Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector

Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector

  • Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector
  • Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector
Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-40 275 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: AC SPD Type: AC Surge Protector
Structure: Pluggable Installation: Din Rail
Safety Standard: IEC 61643-11 Rated Voltage: AC 275V
Imax: 40kA Weight (g): 500G
Application: AC System Size: Small
High Light:

40ka three phase SPD

,

pluggable three phase SPD

,

40ka 3 phase spd

Three Phase 40ka Surge Protection SPD Electrical Compact Intelligent



Three Phase 40ka Surge Protection SPD Application:

BR-40 series surge protective devices are suitable for C grade surge protection, which protects the electrical network not shocked by the thunder. The BR-40 series surge protection devices are usually installed in low voltage main distribution box connected to the incoming end of the buildings.
BR-40 Series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, TT, TN-C, TN-S,TN-C-S and other power supply system, it protect to indirect and direct lightning effect or other transient over voltage.



Three Phase 40ka Surge Protection SPD Technology characteristic:



  BR275-40 4P
SPD classification according to IEC61643-11 Class II
Max. continuous operating a.c. voltage                  Uc 275V
Nominal discharge current (8/20us)                        In 20kA
Max. discharge current(8/20μs)                          Imax 40kA
Voltage protection level                                          Up ≤1.3kV
Max. backup fuse 125A gG
Degree of protection IP20
Enclosure material Thermal plastic UL94-V0
Response time                                                        tA ≤25ns
Operating temperature range                                 Tu -40℃-80℃
Relative Humidity ≤95%
For mounting on 35mm Din rail
Color   White, Gray, Black, Red, Yellow and Customized
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
OEM Yes



Dimension:



Electrical Network C Grade Low Voltage 40ka Three Phase SPD Surge Protector 0



Three Phase 40ka Surge Protection SPD Functions:

1. Protection of heavy-loaded electrical circuits from overload
2. SPD design according with GB18802.1/IEC61643-1 standard.
3. Uc: 275V
4. Accurate dimension
5. In: 20kA
6. Used to protect not only particular consumers/circuits, but also the whole panel.
7. Protection: IP20
8. High performance
9. On-Off indicating window: Green: normal function, Red: functionless, immediate replacement required
10. Heat proof

SPDs type 2:

Installed at distribution board (DB) within a building. The first gate to prevent lightning strike from entering your house via electricity supply line. The Type 2 SPD is the main protection system for all low voltage electrical installations. Installed in each electrical switchboard, it prevents the spread of overvoltage in the electrical installations and protects the loads. Type 2 SPD is characterized by an 8/20 µs current wave.
