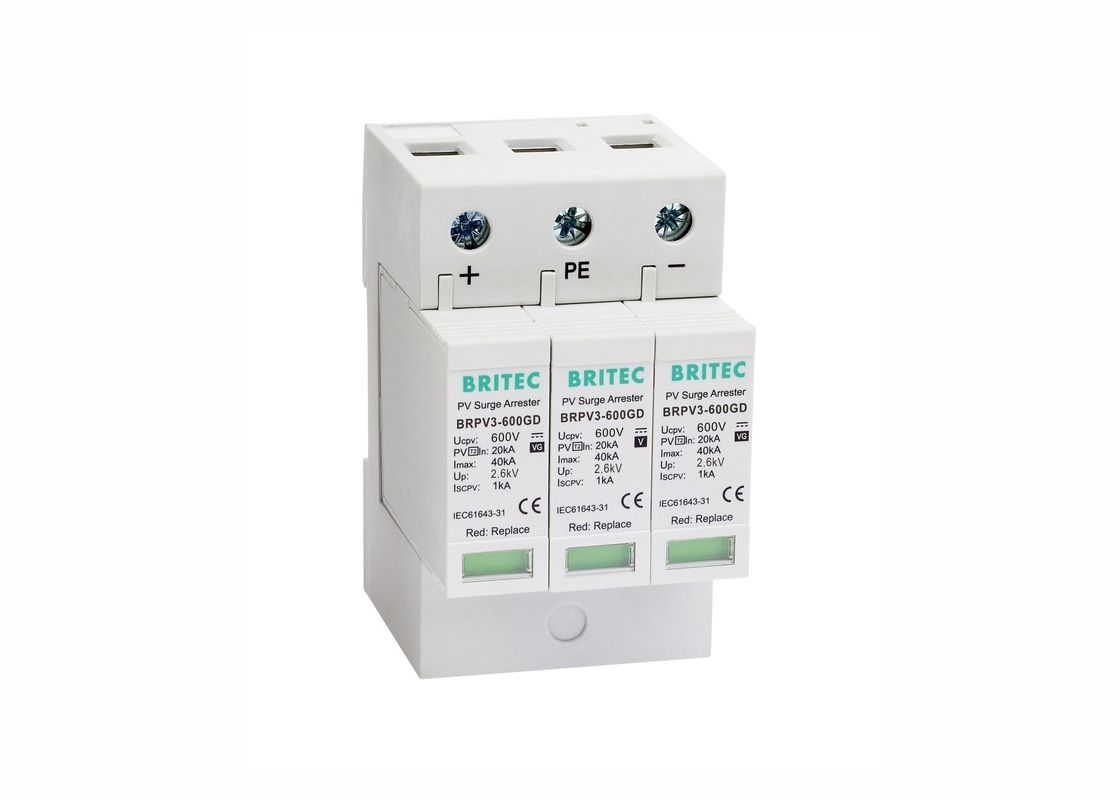

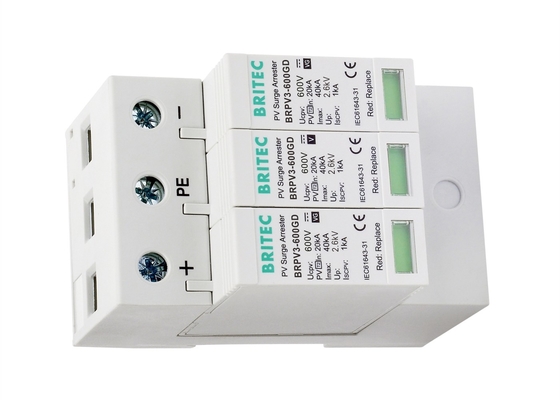

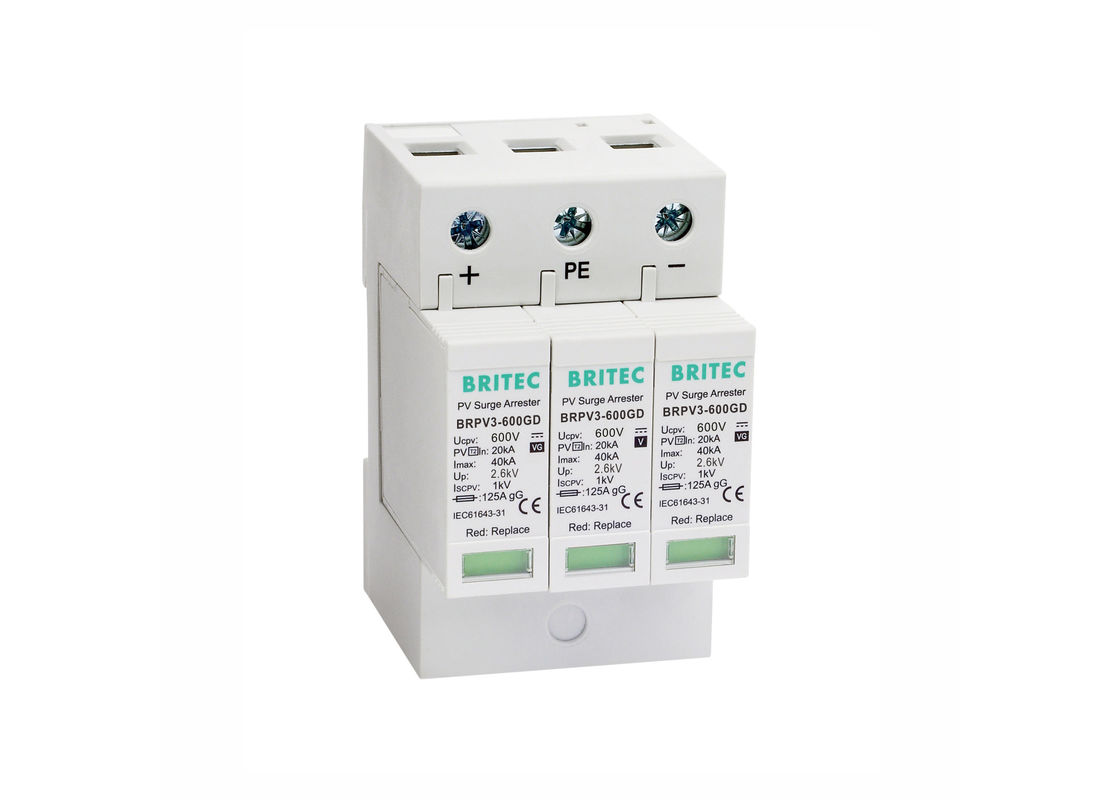

3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device

3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device

    • 3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device
    • 3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device
  • 3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BRPV3-600GD

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: EN61643-11 / EN50539-11 Ucpv: 600V
    Imax: 40kA Material: Thermal Plastic UL94-V0
    TA: ≤100ns Mounting On: 35mm Din Rail
    Up: ≤2.6kV Tu: -40℃...+80℃



    3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device

    Feature:



    • • Type 2 Class II surge protection device.
      • Discharge current: Imax up to 40 kA.
      • Configurations to support 600V DC operating voltages.
      • Compact equipment for photovoltaic installations.
      • DIN Rail mounting design with pluggable modules.
      • High discharge capacity via zinc oxide varistors and gas dischargers.
      • Visual indication of a fault in the equipment.
      • Safety disconnection and remote signalling.


    Product Details:


       BRPV3 600 GD
    SPD classification according to EN61643-11 Type 2
    SPD classification according to EN50539-11 Class II
    Max. continuous operating dc voltage                            Ucpv 600V
    Nominal discharge current (8/20us)                                    In 20kA
    Max. discharge current (8/20us)                                     Imax 40kA
    Voltage protection level [(DC+/DC-)→PE]                         Up ≤2.6kV
    Response time                                                                             tA ≤100ns
    Operating temperature range                                             Tu -40℃-80℃
    Operating state / fault indication green / red
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material                Thermal plastic UL94-V0
    Degree of protection IP20
    Order Code B8005
    Order code(With remote signal) B8007


    Technology characteristic:

    3 Poles DC 600V Photovoltaic Surge Protector 40kA Solar Surge Protection Device

    Application:


    • • Protect PV inverters, operate safely on the PV networks, and DC side of Inverter or combiner box.
      • For equipotential bonding of positive and negative busbars of photovoltaic systems and
        elimination of transient overvoltage that originates during the atmospheric discharges or switching
        processes.
      • For Photovoltaic protection against surges at the boundaries from lightning protection.


    Advantage:


    • • High temperature resistant plastic.
      • Plug-in protection modules which facilitate maintenance, easy to install wiring.
      • Operational status indication.
      • Remote monitoring.
      • With thermal separation device.


    Our Services:


    • • 15 years global leading profession manufacture of electrical products surge arrester.
      • All products will be well packed before shipping.
      • Standard packaging, and you can also tell us your own requirements on packaging.
      • Faster delivery.
      • Individually Tested Prior to Shipment.



    Installation instruction:



    • The SPD connected in parallel with the power lines, installed by the way of 35 mm leading rail.
    • When installed, in and out terminal of SPD will be corresponding connected with"+","-"pole of the DC
      power; " PE " is connected with grounding line.
    • All wires must be solid and connected by electrics cable.SPD cable:BVR≥4mm².
    • Grounding of lightning protection should comply with the lightning protection standard; grounding wire
      should be as thick and short as possible.
    • The grounding wire of SPD reliable connected with the grounding row of lightning protection system,
      after installation finished, check the wires if correct, switch on, then the SPD can be put into use.
