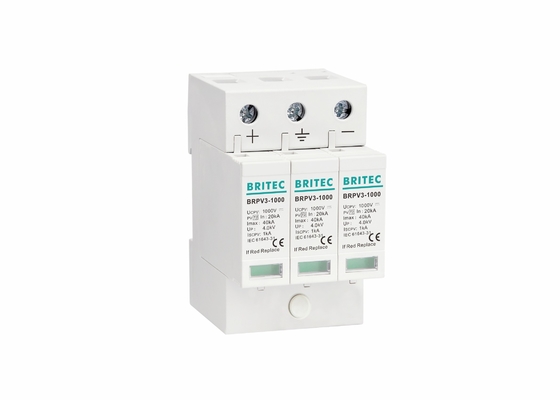

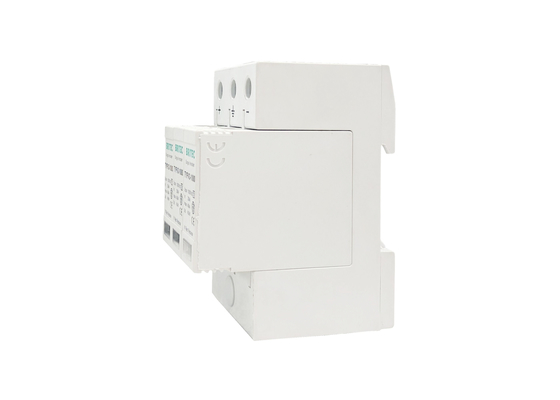

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail

  • PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail
  • PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail
PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-31 / IEC61643-31 Ucpv: 1000V
Imax: 40kA Up: ≤4.0kV
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Application: Solar Energy Item: Photovoltaic Surge Protection Device
High Light:

dc surge arrester

,

dc surge suppressor


PV Surge Protection 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Feature:


• BRPV3-1000 surge arrestor, type 2 surge arrester.
• Rated voltage 1000V DC.
• For DIN rail mounting.
• Arresting capacity to 40 kA (8/20us) per pole.
• Three plug-in temperature-monitored protective elements.
• With visual function display for use in distributor housings.
• Compliance with standard IEC61643-31 and EN 61643-31.
• With remote signaling contact for control device.
• DC 1000V Surge Protection Device used for Photovoltaic System.


PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Product Details:



   BRPV3 1000
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                            Ucpv 1000V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤4.0kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8010
Order code(With remote signal) B8012


Dimension:

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail 0

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Application:


• Designed especially for surge protection of the PV strings, apply to the Photovoltaic power grid-connection system.
• Used for PV systems with or without separate lightning protection system.
• Used to protect the sensitive line of the solar power generation protection device.
• It widely used in PV DC combiner box, inverter, controller and PV DC cabinet.


PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Advantage:


• Easy replacement, plug-in arresters.
• Optimum inverter protection, low protection level.
• Fault indication via red mark in the inspection window.
• High Energy Varistor, Response Time Less Than 25 Nanosecond.
• High effective for lightning protection.
• Optional Remote Signalling.
• Leakage current free option.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Working principle​:


There is a thermal cutoff member inside the photovoltaic DC surge arrestor, when the protector is over-current or over-voltage and the puncture is nonseviceable, the thermal cutoff member will automatically separate from the photovoltaic DC surge protector from the electrical network, and the indication window will turn red from green.


What is pv surge arrester?

Photovoltaic DC surge protector is a lightning protection product designed for the solar photovoltaic system based on the relevant standards. The photovoltaic lightning protection device is used to protect the sensitive line of the solar power generation protection device. It can maximize the voltage into the underground, protect the inductive thunder and direct lightning or other instantaneous overvoltage, so as to achieve the effect of lightning protection.

About us:


Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail 1

Certification:

PV 1000V DC Solar Energy Photovoltaic Surge Protection Device Din Rail 2


FAQ:

Q1. Where is your factory?
A1: Our company is located in Yueqing, Zhejiang, China. We can provide a wide range of personalized services according to the customers’ needs.

Q2. What are your company's main products?
A2: Our main products are AC surge protector, DC surge protective device, data lightning protection, LED lightning arrester, etc.

Q3. What are the advantages of your company?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other lightning protector companies.

Q4. How many coutries you already exported?
A4: Exported to more than 50 countries mainly from France, Spain, UK, Italy, Brazil, Malaysia, Turkey, Jordan, India, etc.

Q5. Can you provide sample?
A5: Yes, samples will take about 7days.
