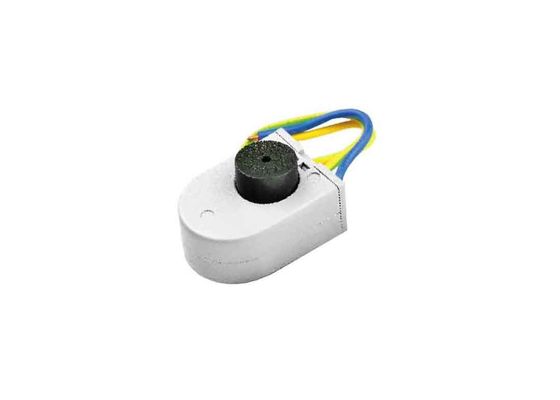

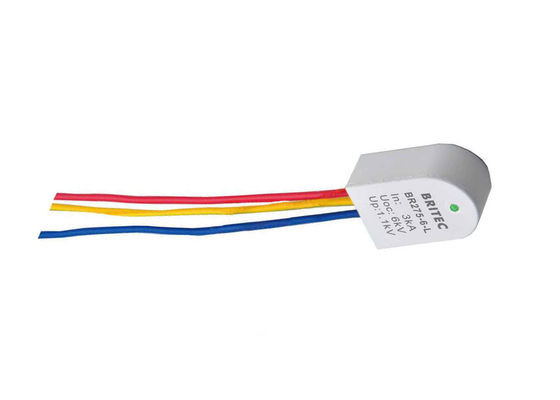

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design

Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design

    • Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
    • Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design
  • Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR275-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-11 / EN61643-11 Un: 230V
    In: 3kA Material: Thermal Plastic UL94-V0
    TA: ≤25ns Mounting On: 35mm Din Rail
    Uoc: 6kV Tu: -40℃...+80℃



    Compact Design Uoc/In (8/20μs) 6kV/3kA Type 3 Class III Surge Arrester

    Feature:



    • • Protection class: Type 3, Class III.
      • Nominal AC Voltage, 230V.
      • Nominal Discharge current: 3kA.
      • Rated to IP20.
      • Type 3 SPD according to IEC61643-11 and EN61643-11.
      • BR275-6 is specially designed to protect a single-phase input.
      • It is installed between LPZ2 and LPZ3, it can provide protection for equipments.


    Product Details:


       BR275-6-L BR275-6-B
    SPD classification according to EN61643-11 Type 3 Type 3
    SPD classification according to IEC61643-11   Class III Class III
    Nominal a.c. voltage                                        Un 230V 230V
    Max. continuous operating a.c. voltage            Uc 275V 275V
    Max. continuous operating d.c. voltage           Uc 300V 300V
    Nominal discharge current (8/20us)                  In 3kA 3kA
    Combined impulse                                         Uoc 6kV 6kV
    Voltage protection level                                    Up ≤1200V ≤1200V
    Response time                                                        tA ≤25ns ≤25ns
    Operating temperature range                           Tu -40℃-80℃ -40℃-80℃
    Operating state / fault indication LED BEEP
    For mounting on 35mm Din rail 35mm Din rail
    Enclosure material  Thermal plastic UL94-V0   Thermal plastic UL94-V0
    Degree of protection IP20 IP20
    Order Code B8455 B8457
    Order Code (With remote signaling) B8456 B8458


    Technology characteristic:

    Uoc / In (8/20μS) 6kV / 3kA Type 3 Spd Class III Surge Arrester Compact Design

    Application:


    • • Designed for installation into electrical installation systems, e.g.: cable ducts and flush-mounted
        sockets as an additional protection.
      • For use in all installation systems of terminal equipment.
      • For all installation systems of 230 V terminal equipment.
      • For transient current protection.
      • For protection of final equipment (TV, PC, etc.).
      • Used for electric power supply networks, telephone networks, and communication and automatic
        control buses.


    Advantage:


    • • A compact plastic enclosure, disconnection signals.
      • Its small size means that it can be mounted in confined spaces.
      • Acoustic fault indication and vision fault indication.
      • 35 mm Din rail mounting.
      • Have a low discharge capacity.


    Our Services:


    • • 15 years global leading profession manufacture of electrical products surge arrester.
      • All products will be well packed before shipping.
      • Standard packaging, and you can also tell us your own requirements on packaging.
      • Faster delivery.
      • Individually Tested Prior to Shipment.



    What is surge?



    • Surges or transients are short duration increases voltage measured between two or more conductors.
      These potentially harmful voltages can be induced into a building from a direct strike of from secondary
      effects of lightning which can reach up to 6000 Volts.


    What is SPD?



    • SPD is designed to limit transient overvoltages of atmospheric origin and divert current waves to earth,
      so as to limit the amplitude of this overvoltage to a value that is not hazardous for the electrical
      installation and electrical switchgear and control gear.
