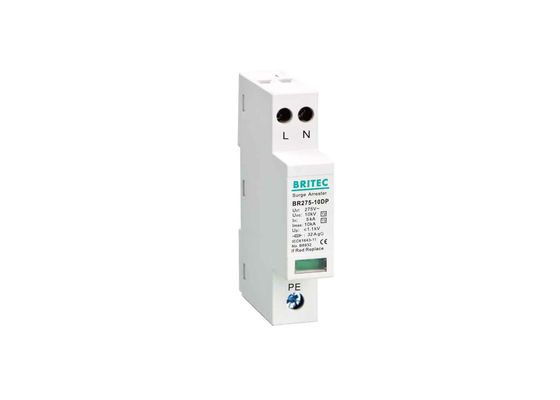

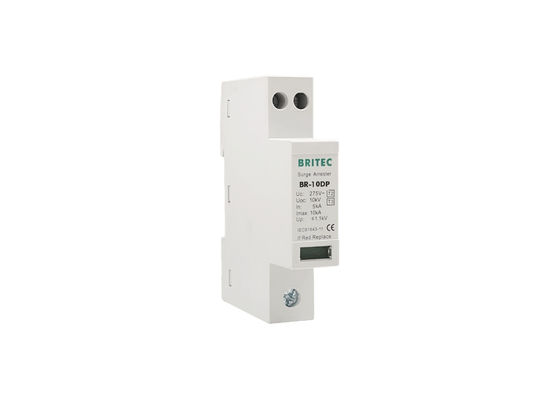

Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device

Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device

  • Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device
  • Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device
Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-10DP 2P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Un: 24V / 60V / 120V / 230V
In: 5kA Uoc: 10kV
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Item: Surge Protective Device Class: Type 3
High Light:

type 3 surge protector

,

ac surge protector


Britec New Type 3 Surge Protection Devices BR-10DP Series 35mm Din Rail

Britec Surge Protective Device Feature:



• This product has a one-piece design.
• Protection class: Type 3, Class III.
• Pole number: 2P.
• For DIN rail installation, with remote contact signaling intervention.
• The type 3 SPD has Uoc of 10kV.
• Conforms to IEC61643-11 and EN61643-11.
• Green-Red status indication.
• Different Uc are available 275V, 150V, 75V and 30V for the application in norminal voltage of 230V, 120V, 60V and 24V line to protect the terminal equipments.


Britec Surge Protective Device Product Details:



    BR30-10DP  2P   BR75-10DP 2P   BR150-10DP 2P   BR275-10DP 2P
SPD classification according to EN61643-11 Type 3 Type 3 Type 3 Type 3
SPD classification according to IEC61643-11 Class III Class III Class III Class III
Nominal a.c. voltage                                         Un 24V 60V 120V 230V
Max. continuous operating a.c. voltage            Uc 30V 75V 150V 275V
Max. continuous operating d.c. voltage            Uc 38V 100V 190V 300V
Nominal discharge current (8/20us)                   In 5kA 5kA 5kA 5kA
Combined impulse                                          Uoc 10kV 10kV 10kV 10kV
Voltage protection level                                    Up ≤200V ≤500V ≤700V ≤1100V
Response time                                                   tA ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                            Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red
Cross-section area (Min.) 2.5mm2 2.5mm2 2.5mm2 2.5mm2
Cross-section area (Max.) 16mm2 16mm2 16mm2 16mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8237 B8235 B8359 B8231
Order Code (With remote signaling) B8238 B8236 B8234 B8232


Dimension:

Britec Surge Protective Device Type 3 BR -10DP Series 35mm Lightning Protection Device 0

Britec Surge Protective Device Application:


• Used for electrical networks, electrical installations, and electronic equipment.
• Protect low-voltage consumer installations from voltage surges of all kinds.
• BR-20DP series surge arrester is installed between LPZ2 and LPZ3, it can provide protection for equipments.
• Installed in to each electrical switch boards and prevents the spread of surges in the electric systems, protecting the loads.
• It can discharge the surge current from the effect of lightning spreading from earth conductor to the network conductors.


Britec Surge Protective Device Advantage:


• Compact single phase surge protector.
• DIN rail compatible.
• Provide the Visual indication of Protection Status.
• High discharge capacity.
• Based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards.
• Low residual voltage and quick response.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Noted:



• Type 3 surge protective devices are generally installed right in front of the terminal device to be protected.

• Due to differing installation environments, type 3 SPDs are available in a very wide range of designs. For example: in addition to standard DIN rail mounting, there are devices for installation in sockets or for direct mounting on a PCB of the end device.

• The device must be installed by electrically skilled person, conforming to national standards and safety regulations.

• It is recommended that installation should be done under power off condition.
