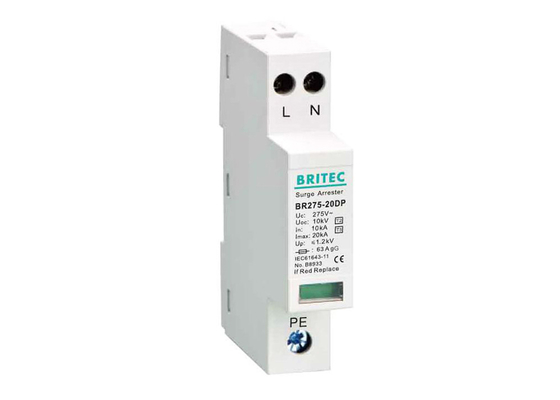

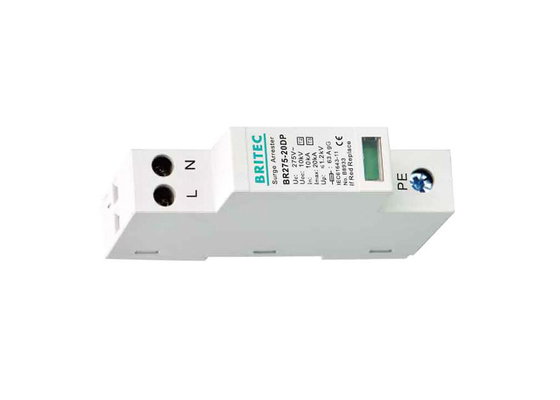

Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication

Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication

Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication
Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication
Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-20DP 2P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Un: 24V / 60V / 120V / 230V
In: 10kA Uoc: 10kV
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Module: Single Module Pole No.: 2 Poles
High Light:

type 3 surge protector

,

ac surge protector



Thermal Plastic Type 3 Single Module 2 Pole 20kA Surge Protective Device With Window Indication

Single Module 2 Pole 20kA Surge Protective Device Feature:



• 2 poles in one modular.
• Protection class: Type 3, Class III.
• Pole number: 2P.
• Remote singalling available.
• High performance varistor with thermal disconnection tripping device.
• Conforms to IEC61643-11 and EN61643-11.
• Visual indication.
• BR-20DP series surge arrester is suitable for single-phase TN system.


Single Module 2 Pole 20kA Surge Protective Device Product Details:



   BR30-20DP   BR75-20DP   BR150-20DP   BR275-20DP
SPD classification according to EN61643-11 Type 3 Type 3 Type 3 Type 3
SPD classification according to IEC61643-11   Class III Class III Class III Class III
Nominal a.c. voltage                                     Un 24V 60V 120V 230V
Max. continuous operating a.c. voltage         Uc 30V 75V 150V 275V
Max. continuous operating d.c. voltage        Uc 38V 100V 190V 300V
Nominal discharge current (8/20us)               In 10kA 10kA 10kA 10kA
Combined impulse                                      Uoc 10kV 10kV 10kV 10kV
Voltage protection level                                Up ≤300V ≤600V ≤800V ≤1200V
Response time                                                    tA ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                        Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red
Cross-section area (Min.) 2.5mm2 2.5mm2 2.5mm2 2.5mm2
Cross-section area (Max.) 16mm2 16mm2 16mm2 16mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8245 B8343 B8341 B8339
Order Code (With remote signaling) B8246 B8344 B8342 B8340


Dimension:

Single Module 2 Pole 20kA Surge Protective Device Type 3 With Window Indication 0

Single Module 2 Pole 20kA Surge Protective Device Application:


• Used to guard sensitive equipments from voltage spike.
• Protecting low-voltage consumers' installations against indirect lightning discharges.
• Ideally suited for use in the main distribution board of the low-voltage consumer’s installation of a building.
• It is suitable for the power supply system with the rated voltage of 220V/380V, which is used to protect the indirect lightning and direct lightning and other instantaneous overvoltage in the power supply system of 50/60HZ.


Single Module 2 Pole 20kA Surge Protective Device Advantage:


• Single module device saving you space.
• High nominal current.
• Advanced production process and beautiful appearance.
• With the power status indication, indicating the working state of surge protector.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Working principle of product:



When the surge protector has no voltage, the impedance is very high, which means that the circuit breaker is open. When the voltage occurs, the impedance drops to a few Europe, and the surge current will flow through the surge protector and will not enter the device. At the same time, because the surge protector has a small impedance at this time, the voltage on both sides of the surge is relatively small, and because he is in parallel with the protected equipment, it prevents the equipment from suffering from large surge power. Pressure, so as to play the effect of discharge and pressure limiting.



Our Company:


Wenzhou Britec Electric Co.,Ltd is located in Yueqing City, Zhejiang Province, China. Our factory is the specialized manufacturer of SPDs including AC surge arrester, DC surge protector, data surge protective device, LED lightning protection, etc. We export lightning arrester to South America, Middle East, Africa, Europe, and other areas.
