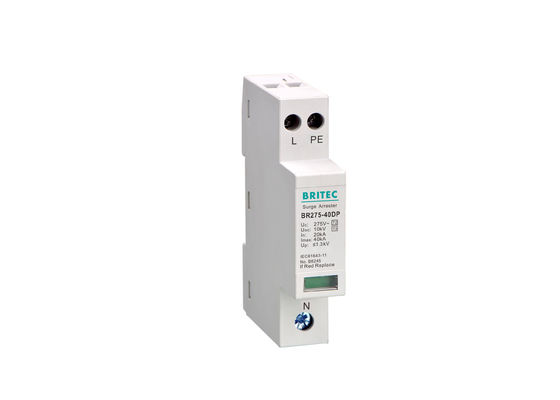

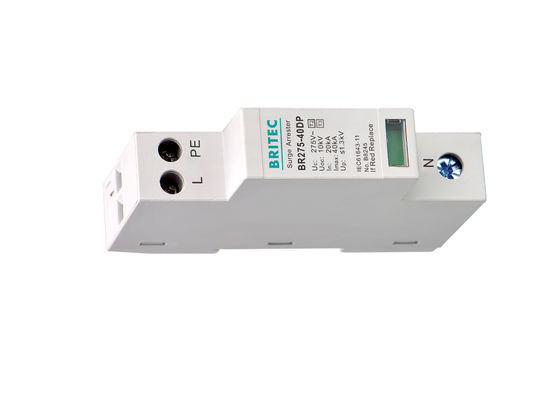

Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size

Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size

  • Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size
  • Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size
Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40DP 1+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 275V
In: 20kA Imax: 40kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Phase No.: Single Phase Class: Type 2 + Type 3
High Light:

type 3 surge protector

,

ac surge protector



Single Phase Type 2 And Type 3 AC Surge Arrester 275V 40kA With Fault Indication Narrow Size

Single Phase Type 2 And Type 3 AC Surge Arrester Feature:



• High discharge current, Imax 40kA.
• Rated Operating Voitage(UC):275V.
• Degree of protection: IP20.
• Remote signal version available.
• Number of poles: 1 Poles+NPE.
• Conforming fully to international IEC 61643-11 and EN 61643-11 standards.
• Indication window for clear display of SPD status.
• BR-40DP series surge arrester is installed between LPZ1 and LPZ2, it can provide type 3 protection for equipment which installed within 5 meters from these devices.


Single Phase Type 2 And Type 3 AC Surge Arrester Product Details:



  BR 275 40DP 1+NPE
SPD classification according to EN61643-11 Type 2 + Type 3
SPD classification according to IEC61643-11 Class II + Class III
Max. continuous operating a.c. voltage                    Uc 275V
Nominal discharge current (8/20us)                         In 20kA
Max. discharge current(8/20μs)                          Imax 40kA
Voltage protection level                                             Up ≤1.3kV / 1.5kV
Voltage protection level 5kA                                       Up ≤1.0kV / 1.5kV
Combined impulse                                                Uoc 10kV
Max. backup fuse 125A gG
Response time                                                            tA ≤25ns
Operating temperature range                                  Tu -40℃-80℃
Operating state / fault indication    green / red
Cross-section area (Min.) 2.5mm2
Cross-section area (Max.) 16mm2
For mounting on 35mm Din rail
Enclosure material            Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8245
Order Code (With remote signaling) B8246


Dimension:

Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size 0

Single Phase Type 2 And Type 3 AC Surge Arrester Application:


• Protect commercial and industrial installations.
• Protect commercial and industrial installations in their secondary distribution boards.
• Used for small commercial or residential installations.
• Protection of terminal devices, sensitive electronic equipment, telecom centers, automatic control centers, intelligent buildings, industrial enterprises, and medical institutes.


Single Phase Type 2 And Type 3 AC Surge Arrester Advantage:


• Large discharge current value.
• High operating voltage.
• With visual inspection window.
• Fast-acting mechanism responds quickly to surge current.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



What is voltage surge?



Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system.



Why need surge arrester?



Overvoltages caused by lightning are responsible for 25% to 40% of all damage to equipment. If the transient overvoltages caused by other phenomena are added to this, close to 60% of all electrical damage could be avoided by installing surge protective devices.



Company information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.



Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size 1



Certificate:



Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size 2



Shipping & payment:



Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size 3Single Phase Type 2 And Type 3 AC Surge Arrester With Fault Indication Narrow Size 4



FAQ:



Q1. Are you a manufacturer?

  A: Yes, we are.



Q2. How is your quality?

  A: Aboove average and top class quality are your options in our range, the quality is pretty good, and trusted by many customers in overseas. Our quality is abov the average according customer same budget, customer have 2 year warranty.



Q3. How is your price?

  A: Our price is very competitive by large scale production contribution.



Q4. What's your lead time?

  A: 20 days, depengs on quantity and different items.



Q5. How is your responding time?

  A: You will get reply within 24hours.
