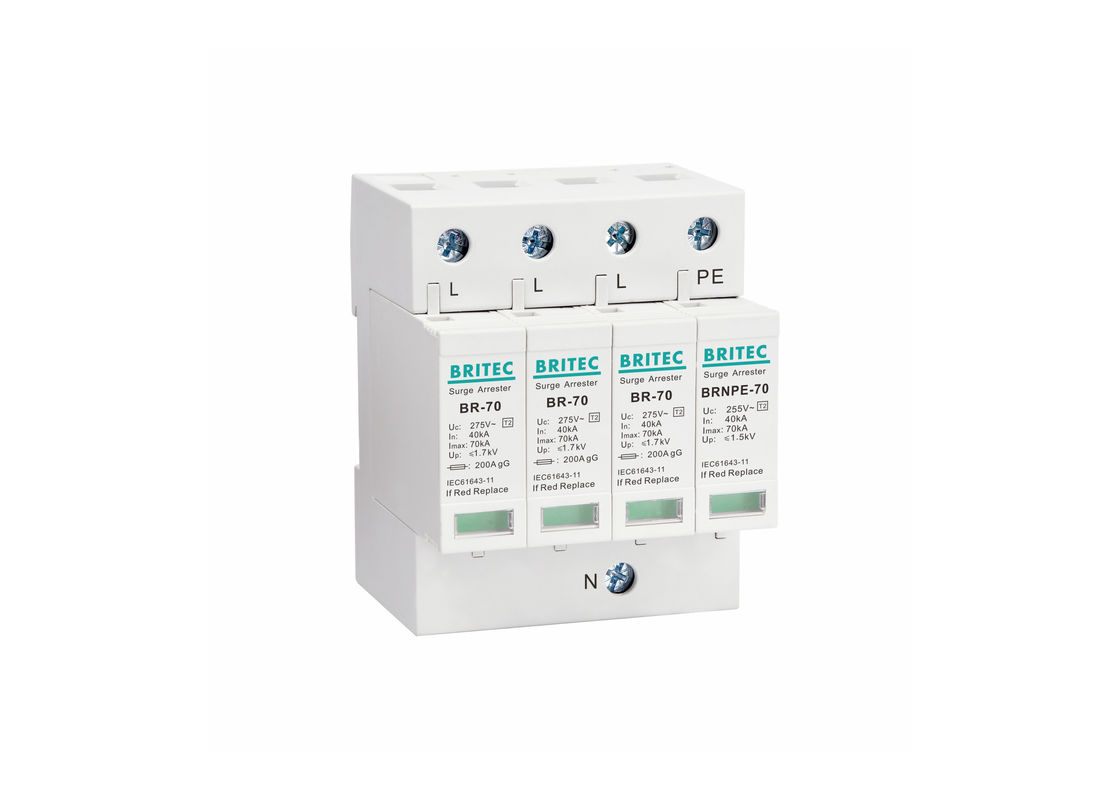

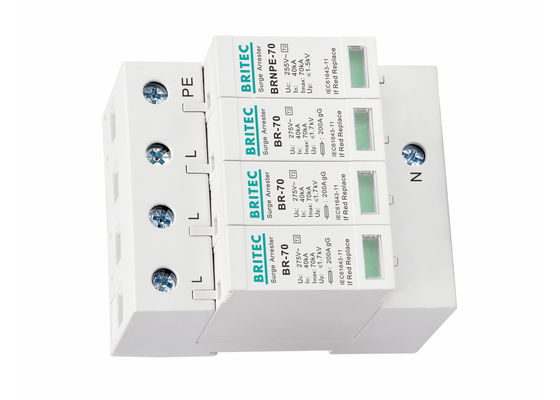

385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve

385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve

  • 385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve
  • 385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve
385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-70 3P+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V
In: 40kA Imax: 70kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns / ≤100ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Poles No.: 3+npe Item: Lightning Arrester
High Light:

lightning surge arrester

,

type 2 surge protector



385V Pluggable Lightning Arresters 3+Npe AC Surge Protective Device SPD 70kA Safety Reserve



385V Type 2 Surge Protection Device Pluggable Lightning Arresters Feature:



• Type 2, Imax 70kA

• Degree of protection:IP20
• For mounting on:35 mm Din rail.
• Plug-in modules for easy replacement.
• Option to remotely monitor the status of the surge protector.
• BR-70 3P+NPE with dedicated protection of the neutral pole discharge the common and differential mode overvoltages that may occur in installations with TT and TN-S systems, when there is a voltage surge.



385V Type 2 Surge Protection Device Pluggable Lightning Arresters Product Details:



  BR150 70 3P+NPE BR275 70 3P+NPE BR320 70 3P+NPE BR385 70 3P+NPE
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II
Max. continuous operating a.c. voltage          (L-N)Uc 150V 275V 320V 385V
Max. continuous operating a.c. voltage       (N-PE)Uc 255V 255V 255V 255V
Nominal discharge current (8/20us)                        In 40kA 40kA 40kA 40kA
Max. discharge current(8/20μs)                         Imax 70kA 70kA 70kA 70kA
Voltage protection level                                     (L-N)Up ≤1.0kV ≤1.7kV ≤2.0kV ≤2.3kV
Voltage protection level                                   (N-PE)Up ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV
Follow current extinguishing capability (N-PE) a.c. Ifi 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 200A gG 200A gG 200A gG 200A gG
Response time                                        (L-N/N-PE)tA ≤25ns/≤100ns
Operating temperature range                                Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication  green / red   green / red   green / red   green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8292 B8294 B8296 B8298
Order Code (With remote signaling) B8293 B8295 B8297 B8299



Dimension:



385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve 0



385V Type 2 Surge Protection Device Pluggable Lightning Arresters Application:



• Lightning strikes create surge currents which generate overvoltages in the power distribution and data transmission networks. The surge protective devices divert the surge current harmlessly to the ground and limit overvoltage to values compatible with the equipment connected to the network.
• The series protects as well private home as industrial equipments, and radio base stations.
• Used for AC power line of house, bank, telecom tower and so on.


385V Type 2 Surge Protection Device Pluggable Lightning Arresters Advantage:



• Easy changing of the surge protection module thanks to a two-part design with.
• Provide a clearly readable function control indication and status display
• Color is customizable
• Logo is customizable
• Package is customizable



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Certificate:



385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve 1



Shipping:



385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve 2



Company profile:



Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.



385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve 3



Why need surge arrester?



• Surge arrester are designed to interrupt and divert transient surge events to ground. Surge events are responsible for a big amount of damage annually and can be caused by electrical storms or bank switching on electrical distribution lines. These events can effect sensitive electrical equipment, telephone networks, and computer networks.

• SPDs designed to protect sensitive equipment, minimize preventative maintenance, and prevent unscheduled equipment downtime.
