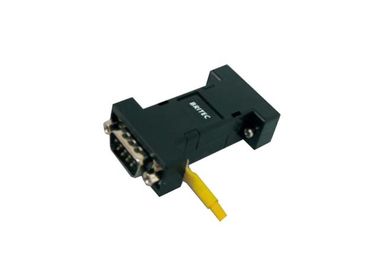

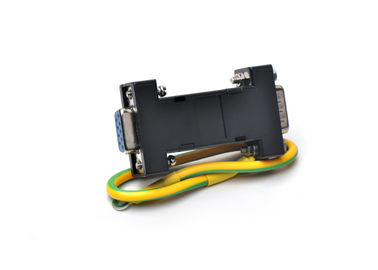

SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector

SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector

    • SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector
    • SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector
  • SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BR-DB9

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-21 Un: 12V
    In (line-SG): 5kA Material: Aluminium Alloy
    TA (line-SG): ≤1ns Connection: D-Sub 9 Plug / Socket
    Bandwidth: 10Mbps Insertion Loss: ≤0.3dB
    Uc (DC): 15V Tu: -40℃...+80℃





    SPD for D-sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector



    Feature:



    • • Operating voltage (Un) : 12V
      • For Use With : D-Sub 9 plug / socket
      • Connection form: 9 pin
      • Electronic Link
      • IEC 61643-21 product standard
      • Protector against transient overvoltages
      • For the comunication of SUB-DB9 connector
      • The SPD Surge Protection Device has several high quality specifications



    Product Details:



      BR-DB9
    Test standards IEC 61643-21

    Nominal voltage                                                                           Un

    12V
    Max.continuous operating d.c.voltage                                          Uc 15V
    C2 Nominal discharge current (8/20us) line-SG                            In 5kA
    C2 Nominal discharge current(8/20μs) SG-PG                             In 10kA
    Voltage protection level [line-SG]                                                Up   ≤40V
    Voltage protection level [SG-PG]                                                 Up ≤500V
    Response time [line-SG]                                                               tA ≤1ns
    Response time [SG-PG]                                                               tA ≤100ns
    Operating temperature range                                                      Tu -40℃…+80℃
    Connection input/output D-Sub 9 plug/socket
    Pinning line:3/8, SG:5, PG:1
    Bandwidth 10Mbps
    Insertion loss ≤0.3dB
    Enclosure material                  aluminium alloy
    Degree of protection IP20
    Order Code D9070



    Technology characteristic:



    SPD D - Sub 9 Pins Surge Protection Device DB9 Connector Type DB Connector



    Application:



    • • For computer system D-sub 9 pin
      • Protect the motherboard of computer
      • Communication signals specifically for the protection of networks
      • The d-sub connector can be used in a wide variety of electronic products
      • DB9 connector is used for token-ring and controller LAN (CAN)
      • Widely used in computer video output, game controller port, multi-frequency analog signal and AES digital audio recording studio



    Advantage:



    • • Brand-name Parts
      • Reputation
      • Guarantee/Warranty
      • Distributorships Offered
      • Best price
      • Green Product
      • International Approvals



    Our Services:



    • • Professional manufacturer, 10 years global leading profession manufacture of electrical products surge arrester
      • Prompt response: Any inquiries will be replied within 24 hours
      • OEM/ODM available
      • Standard packaging, and you can also tell us your own requirements on packaging
      • All products in accordance with the IEC IEEE the international standard.
      • Faster delivery
      • Individually Tested Prior to Shipment



    What is IEC 61643-21 standards?



    • • IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected
        to telecommunications and signalling networks; Performance requirements and testing methods.
      • The test categories for surge protective devices connected to telecommunications and signalling
        networks are defined in these standards.
