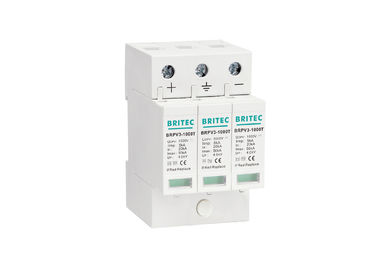

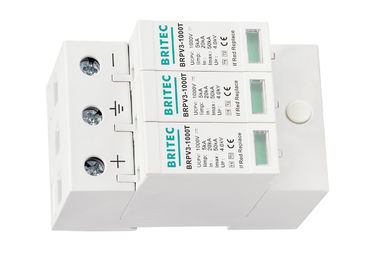

Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse

Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse

    • Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse
    • Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse
  • Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BRPV3-1000T1-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    TU: -40℃…+70℃ Material: Thermalplastic UL94-V0
    Ucpv: 1000V In: 20kA
    Imax: 40kA TA: ≤25ns
    Class: Type 1+2 Type: PV (solar)

    BRPV3-1000T1-6 Type 1+2 PV Surge Arresters Thermalplastic UL94-V0

    Product Details:


     BRPV3-1000 T1-6
    SPD classification according to EN61643-31Type 1+2
    SPD classification according to IEC61643-31Class I &II
    Max. continuous operating d.c. voltage                   UcPV1000V
    Impulse Current by pole                                            Iimp6.25kA
    Nominal discharge current(8/20μs)                               In20kA
    Max. discharge current(8/20μs)                                Imax40kA
    Voltage protection level                                               Up3.6kV
    Residual Current                                                        IpeNone
    Follow current                                                               IfiNone
    Max backup fuse125A gL
    Response time                                                             tA25ns
    Operating temperature range                                     Tu-40℃~70℃
    Operating state/fault indicationGreen/Red
    For mounting on35mm Din Rail
    Cross-section area (Min.)4mm2
    Cross-section area (Max.)35mm2
    Enclosure materialThermal plastic UL94-V0
    Degree of ProtectionIP20


    Product Description:
     Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse
    Technology characteristic:
    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse
     WORKSHOP:


    Britec owns advanced test equipments and product line, perfect management, professional technical
    personnel and well-trained workers. Britec team keep developing newest product for our customer, that
    is why technical level of our products can be reached to the leading level, we also can help customer
    OEM/ODM.

    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse


    Company Information:


    Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)
    manufacture with many years experiences.We are providing quality products, competitive price, prompt
    delivery and excellent service, and looking forward to even greater cooperation with overseas trade
    based on mutual benefits.


    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse


    Exhibition:


    Britec have strong sales team, our surge protection device are sold to many countries around the world.
    Europe and Asia are our main market. We would like to cooperate with global customers and help you
    success in your market.

    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse


    Certifications:


    Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The
    company implements ISO9001 quality mangement system.

    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse


    Product Uses:


    Britec have developed a wide range of products mainly covering requirements in the area of low voltage
    lightning protection, such as SPD for power system,PV system and data , etc. All these products have
    been widely applied in electronic system, computer network and security system, protection for power
    industry, petroleum chemical industry and national defense industry.

    Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 125A GL Max Backup Fuse


    FAQ:

    01

    How about your experience?

    We have our own factory and in-house test laboratory, our R&D department have more than
    17 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.
    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    2 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

    7-10 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of
    the production. IQC inspects the components, the patrol inspection is done during production and all the
    goods to be tested 100% before leaving the factory..
