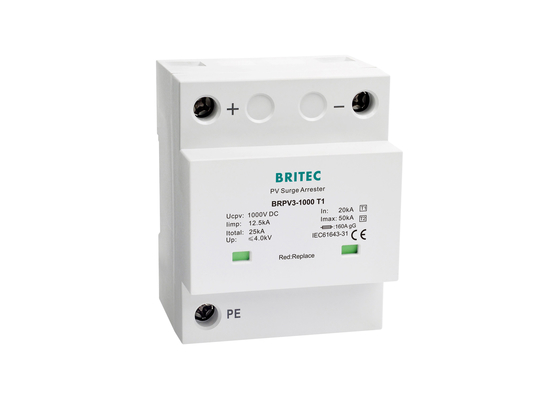

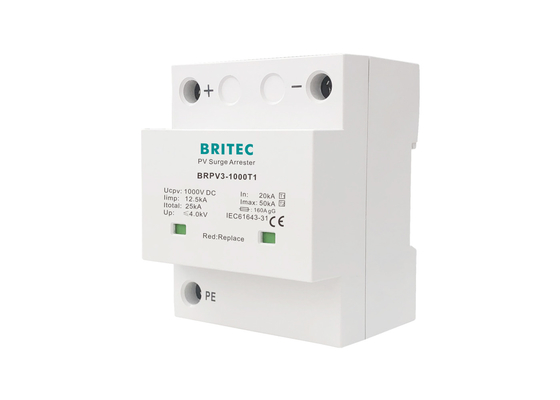

BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current

BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current

    • BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current
    • BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current
  • BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: BRPV3 600T / BRPV3 1000T

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    TU: -40℃…+80℃ Material: Thermalplastic UL94-V0
    Limp: 12.5kA In: 20kA
    Imax: 50kA TA: ≤25ns

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current

    Product Details:


     BRPV3 600TBRPV3 1000T
    SPD classification according to EN61643-11Type1+Type2Type1+Type2
    SPD classification according to EN50539-11Class I+Class IIClass I+Class II
    Max.continuous operating d.c.voltage         Ucpv600V1000V
    Lightning impulse current (10/350us)           limp12.5kA12.5kA
    Nominal discharge current(8/20us)                  In20kA20kA
    Max. discharge current(8/20us)                   Imax50kA50kA
    Voltage protection level [(DC+/DC-)→PE]       Up≤2.6kV≤4.0kV
    Response time                                                 tA≤25ns≤25ns
    Operating temperature range                         Tu-40℃-80℃
    Operating state/ fault indicationgreen / redgreen / red
    Cross-section area(Min.)4mm²4mm²
    Cross-section area(Max.)35mm²35mm²
    For mounting on35mm Din rail35mm Din rail
    Enclosure materialThermalplastic UL94-V0
    Degree of protectionIP20IP20
    Order CodeB8001B8002
    Order Code(With remote signal)B8003B8004


    Product Description:
    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current
    Technology characteristic:

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    Workshop:


    Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    Company Information:


    Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    Exhibition:


    Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    Certifications:


    Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    Product Uses:


    Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

    BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse Current


    FAQ:

    01

    How about your experience?

    We have our own factory and in-house test laboratory, our R&D department have more than
    15 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.
    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    5-8 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

    3-5 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..
