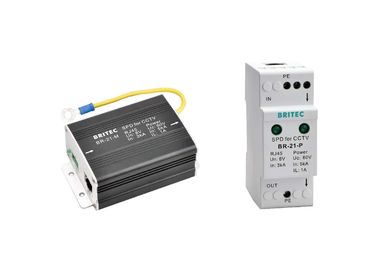

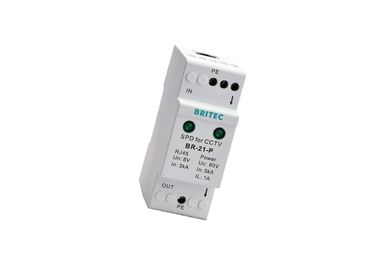

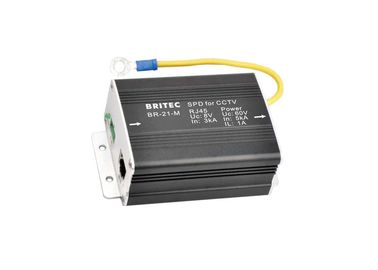

IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21

IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21

    • IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21
    • IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21
    • IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21
  • IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: CE
    Model Number: CCTV-21

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 piece / pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: 15-30 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 pieces per month
    Contact Now
    Detailed Product Description
    Test Standards: IEC 61643-21 TU: -40℃…+80℃
    Material: Aluminium Alloy / Thermal Plastic TA: ≤1ns
    Bandwidth: 30 Mbps Insertion Loss: ≤0.3dB
    IL: 0.5A In: 5kA
    Imax: 10kA RJ45/Power: RJ45/Terminal Block
    High Light:

    data surge protection devices

    ,

    commercial surge protection devices

    30Mbps,SPDs for CCTV,CCTV-21,aluminium alloy / Thermal plastic,RJ45 / Terminal block



    Product Details:



       CCTV-21M-48  CCTV-21M-230   CCTV-21P-48  CCTV-21P-230
    Test standards IEC 61643-21
    Max.continuous operating d.c.voltage    (RJ45)Uc 6V 6V 6V 6V
    Max.continuous operating a.c.voltage    (RJ45)Uc 4V 4V 4V 4V
    Max.continuous operating a.c.voltage   (power)Uc 60V 275V 60V 275V
    Nominal current                                                   IL 0.5A 0.5A 0.5A 0.5A
    C2 Nominal discharge current (8/20us)              In 5kA 5kA 5kA 5kA
    C2 Max. discharge current (8/20us)               Imax 10kA 10kA 10kA 10kA
    Voltage protection level [line-line/shield] (RJ45)Up ≤30V ≤30V ≤30V ≤30V
    Voltage protection level [line/shield-PG] (RJ45)Up ≤500V ≤500V ≤500V ≤500V
    Voltage protection level                         (power)Up ≤200V ≤1.2kV ≤200V ≤1.2kV
    Response time [line-line/shield]                          tA ≤1ns ≤1ns ≤1ns ≤1ns
    Response time [line/shield-PG]                          tA ≤100ns ≤100ns ≤100ns ≤100ns
    Operating temperature range                             Tu -40℃…+80℃
    Connection input/output                     RJ45/Power RJ45/Terminal block
    Bandwidth 30Mbps 30Mbps 30Mbps 30Mbps
    Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
    Enclosure material  aluminium alloy  aluminium alloy  Thermal plastic  Thermal plastic
    Degree of protection IP20 IP20
    Order Code D9050 D9051 D9052 D9053



    Product Description:

    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 0

    Dimension:


    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 1


    Workshop:


    Britec owns advanced test equipments and product line, perfect management, professional technical

    personnel and well-trained workers. Britec team keep developing newest product for our customer, that

    is why technical level of our products can be reached to the leading level, we also can help customer

    OEM/ODM.

    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 2


    Company Information:


    Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

    manufacture with many years experiences.We are providing quality products, competitive price, prompt

    delivery and excellent service, and looking forward to even greater cooperation with overseas trade

    based on mutual benefits.


    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 3


    Exhibition:


    Britec have strong sales team, our surge protection device are sold to many countries around the world.

    Europe and Asia are our main market. We would like to cooperate with global customers and help you

    success in your market.

    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 4


    Certifications:


    Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

    implements ISO9001 quality mangement system.

    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 5


    Product Uses:


    Britec have developed a wide range of products mainly covering requirements in the area of low voltage

    lightning protection, such as SPD for power system,PV system and data , etc. All these products have

    been widely applied in electronic system, computer network and security system, protection for power

    industry, petroleum chemical industry and national defense industry.

    IEC 61643 - 21 Plastic Electrical Terminal Block 0.5 A For CCTV / CCTV - 21 6


    FAQ:

    01

    How about your experience?

    We have our own factory and in-house test laboratory, our R&D department have more than
    17 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.
    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    2 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

    7-10 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of

    the production. IQC inspects the components, the patrol inspection is done during production and all the

    goods to be tested 100% before leaving the factory..
