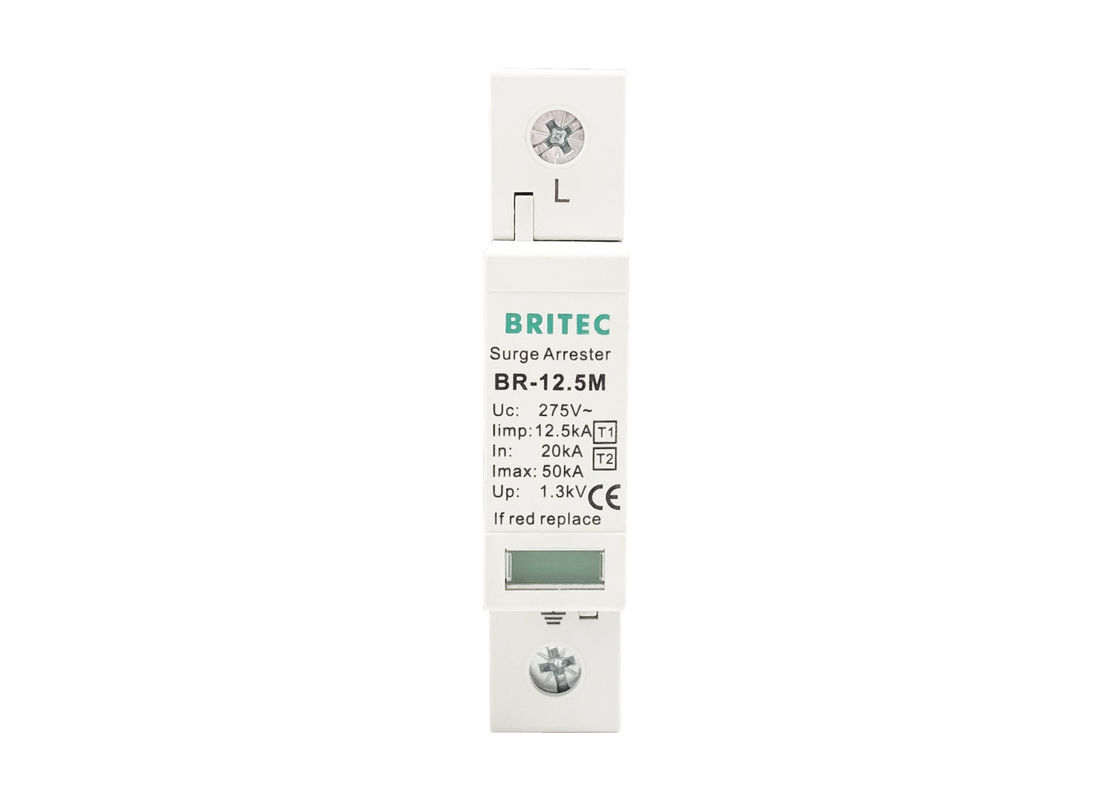

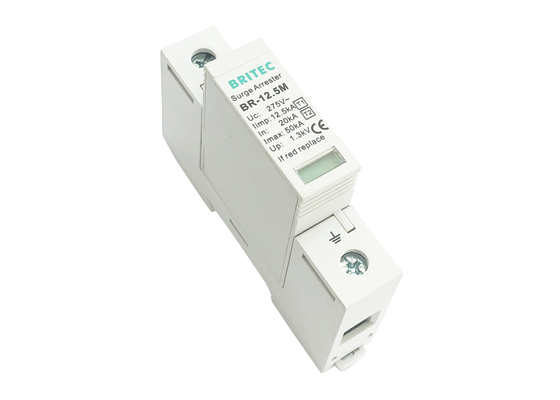

AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor

AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor

AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor
AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor
AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M 275 1P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Power Surge Protection Place Of Origin: Zhejiang, China (Mainland)
Brand Name: BRITEC Material: Thermal Plastic
Type Item: BR-12.5M 275 1P Color: White
Uc: 275v Iimp: 12.5ka
Usage: Low Voltage Delivery Time: 20 Days
High Light:

lightning protection device

,

lightning surge protector

AC Power Surge Protection 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor



AC Power Surge Protection Device 220v SPD Feature:



Surge arrestor.
Meet the type 1+2 requirement class according to IEC 61643-11.
High arresting capacity up to 12.5 kA (10/350μs).
Visual status display.
The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
Available with optional remote signaling.
Simple standard Din rail mounting.
Labeled connections.



AC Power Surge Protection Device 220v SPD Technology characteristic:



  BR-12.5M 275 1P
Product name Surge protection Device
SPD classification according to EN61643-11 Type 1 + Type 2
SPD classification according to IEC61643-11 Class I + Class II
Max. continuous operating a.c. voltage                       Uc 275V
Lightning impulse current (10/350us)                        Iimp 12.5kA
Nominal discharge current (8/20us)                              In 20kA
Max. discharge current (8/20us)                               Imax 50kA
OEM Yes
Voltage protection level                                               Up ≤1.3kV
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃—80℃
Enclosure material                   Thermal plastic UL94-V0
For mounting on 35mm Din rail
Degree of protection IP20
Test standard IEC61643-1



Dimension:



AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor 0



AC Power Surge Protection Device 220v SPD Application:

Usable in systems with lightning protection class 1+2.

Company Information:

Britec is a specialized manufacturer of SPDs, founded in 2003. As a professional SPD manufacturer in China, we can supply all kinds of low voltage SPDs and our products has been widely used in electric power, construction, and other fields. Our company has the most advanced testing equipment, which can ensure all of our products are excellent. Our products have gained CE and TUV certificates.

AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor 1


Packaging & Shipping:


Package details: Export standards cartons. But if you have special requirements we can make adjustment according to customers' order requirements.

Delivery details: 15-30 workings days after order confirmed.



AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor 2



Certificate:



AC Power Surge Protection Device 220v SPD Type 1+2 Lightning Arrester 12.5kA Indoor 3



FAQ:



Q1: Are you a manufacturer or distributor?

  A: We are a manufacturer in this field for more than 17 years.



Q2: Is that OK to print my LOGO?

  A: Yes. We have our own brand "Britec", while we could also accept OEM, ODM or customized LOGO print and package.



Q3: How to deal with the faulty?

  A: The defective rate of our product will be less than 0.2%. For defectiveproducts, we will repair them and resend them to you or we can discussthe solution.



Q4: What is your sample policy?

  A: Samples is available, but it is not free.



Q5: How does your factory do regarding quality control?

  A: We have professional QC department, we inspect all steps from raw ma-terials to the finished products according to our standard test. We always attach great importance to the whole production process.
