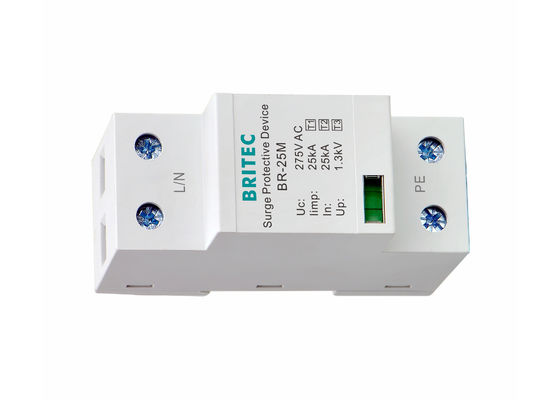

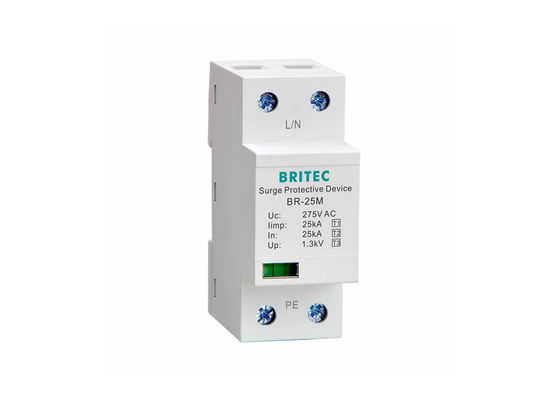

High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply

High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply

  • High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply
  • High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply
High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Model Number: BR-25M 1P Item Name: Lightning Protector
Material: Plastic Pole Number: 1P
Brand Name: Britec Uc: 275V
Iimp: 25kA In: 25kA
Imax: 100kA Usage: Low Voltage
High Light:

lightning surge protector

,

power surge arrester

High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply



High Current Lightning Protector 25kA SPD Features:



• Indoor fixed installation, voltage limited type.

Designed according to IEC 61643-1.
Single-phase protection for TN system.
Easy for installation and maintenance.
High discharge capacity, quick response.
Green window will change when fault.
Remote alarm control for optional.


High Current Lightning Protector 25kA SPD Technology Characteristic:



                          BR-25M 1P
Max. continuous operating a.c. voltage                                Uc 275V
Voltage protection level                                                         Up ≤1.3kV
Response time                                                                       tA ≤25ns
Maximum discharge current (8/20us)                                Imax 100kA
Nominal discharge current (8/20us)                                       In 25kA
Lightning impulse current (10/350us)                                 Iimp 25kA



Dimension:



High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply 0



High Current Lightning Protector 25kA SPD Application:



• Protecting low voltage equipment from surge damages.

Applied in modular SPD Class I (Class B) for TN power supply system.
Suitable for power supply systems such as equipment end protection, terminal distribution box and internal information front section.



Company Information:



Britec is located in Yueqing city, which is on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of surge protection devices. Equipped with domestic advanced production lines and sophisticated testing equipment.



High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply 1



Factory:



High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply 2



Shipping:



High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply 3



Certificate:



High Current Lightning Protector 25kA SPD AC 275V Single Phase Power Supply 4



FAQ:



Q1: What's about MOQ?
A1: First order MOQ=100pcs.



Q2: How could I get a sample?

A2: We will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.



Q3: How about your experience?
A3: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.
