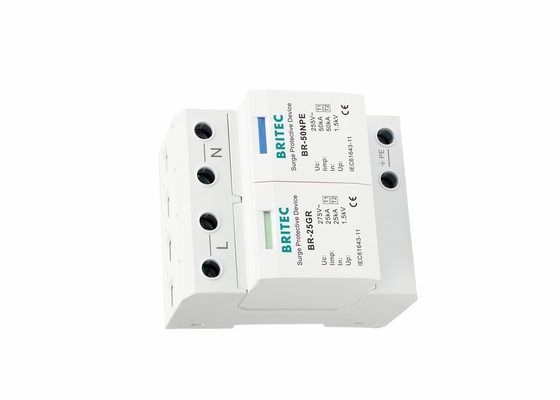

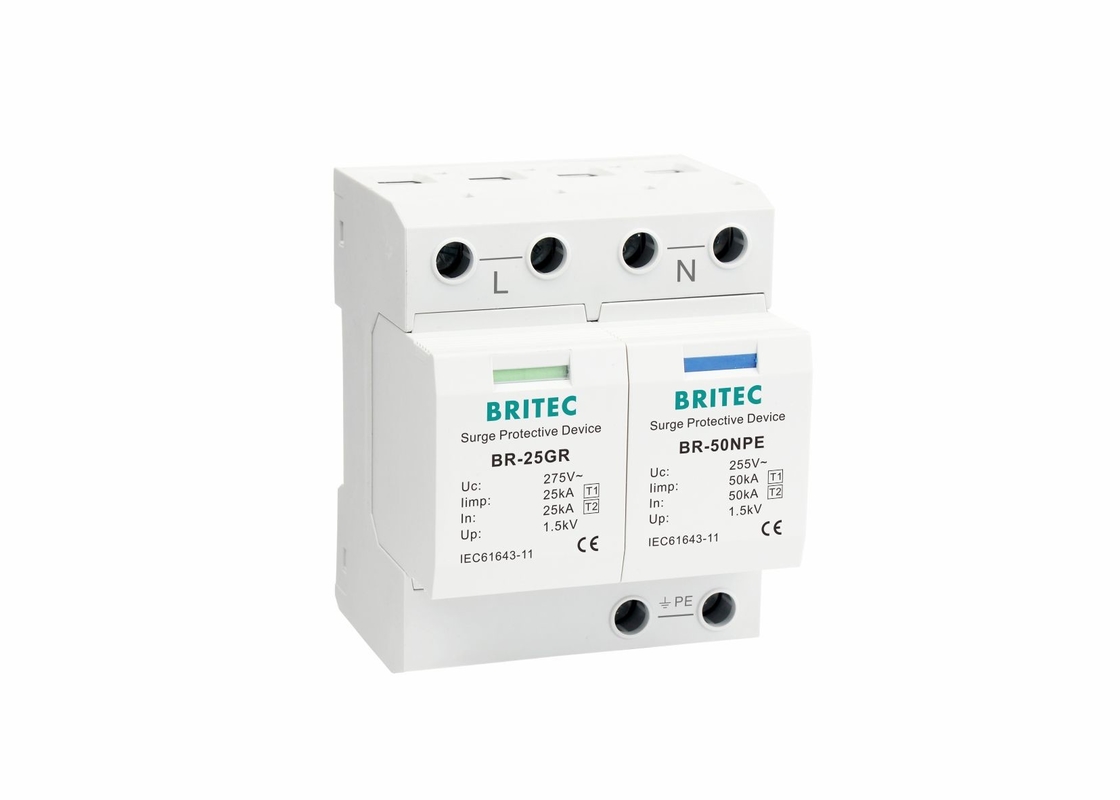

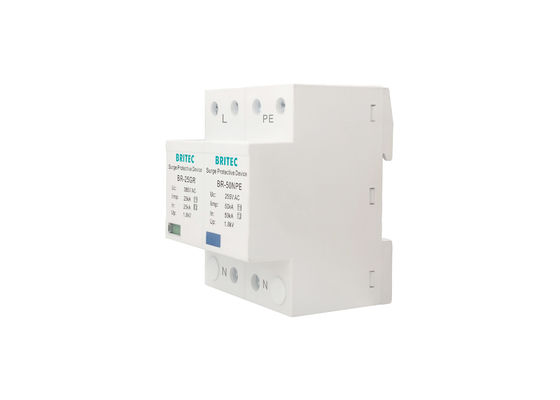

Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar

Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar

    • Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar
    • Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar
    • Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar
  • Safety TUV Type 1 Surge Protection Device Connect Conductors And Busbar

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: TUV
    Model Number: BR-25GR 1+1

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Surge Protective Device Type: Ac Surge Protector
    Material: Plastic Pole Number: 1+1
    Brand Name: BRITEC Degree Of Protection: IP20
    Certificate: TUV/CE/ROHS/ISO9001 Operating Temperature Range: -40℃-80℃
    UC: 275V Protection Class: Type 1
    Delivery Time: Shipped In 15 Days After Payment In: 25kA

    50ka 1 single Phase Type 1 Surge protective device TUV BR-50GR 1+1



    Features:
    • Protecting low-voltage consumers' installations against indirect lightning discharges
    • High performance varistor with thermal disconnection tripping device
    • Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
    • Protection class: Type 1,Class I
    • Pole number:1+1
    • surge areeare used to guard sensitive equipments from voltage spike



    Application:



         Being total current arresters between the neutral and protective conductor in TT systems, the single-pole N-PE lightning current arresters of type BR-25GR NPE help to ensure fulfilling the requirements for protection of personnel and equipment in "1+1"  circuits. The Epcos discharge spark gaps were specifically used to meet this challenge. With a discharge capacity up to 50 kA (10/350 μs), they fulfill the most stringent requirements of national and international lightning protection standards. Their leakage-current-free spark gap design allows the devices to be used upstream of the meter panel .

         The BR-25GR NPE coordinated NPE lightning current arresters hold a special position among total current arresters. Due to their low voltage protection level, they can be directly coordinated with N-PE surge arresters of the BR-25GR surge arresters without additional decoupling coil. If lightning current arresters are to be installed along with surge arresters at the same location, no additional coil is required thanks to the low voltage protection level of BR-25GR NPE.
         The design and installation of BR-25GR NPE arresters are adapted to the unique nature of low-voltage switchgear installations and entirely complement the use of BR-25GR arresters.
    The multifunctional terminals of the DIN rail mounted BR-25GR NPE devices are suitable for connecting conductors and busbars, allowing comfortable wiring with other DIN rail mounted terminals.



    Technology characteristic





    Specification BR-25GR 1+1
    Item name Surge Arrester

    SPD dassification according to EN61643-11 Type 1

    SPD dassification according to EN61643-11

    Class 1
    Max continuous 0perating a.c. voltage µc 275V
    Lightning impulse current (10/350µs) limp 25kA
    Norminal discharge current (8/20µs) In 25kA
    Voltage protection level UP ≤2.0kV
    Follow current extinguishing capability a.c. lifi 2.5kA rms
    Max. backup fuse 315A gL
    Response time tA ≤100ns
    For mounting on 35mm Din rail
    Degree of protection IP20
    Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
    Certificate CB/CE/ROHS/ISO9001
    Logo Customized logo available
    Design ability We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)
