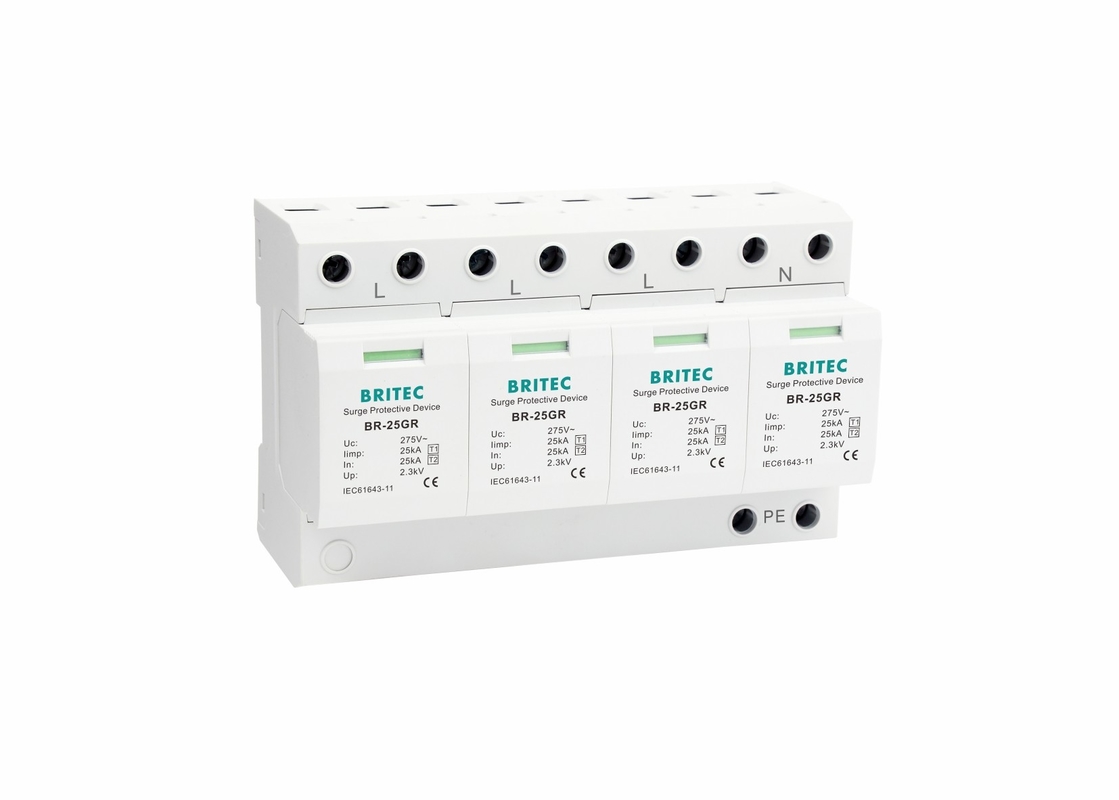

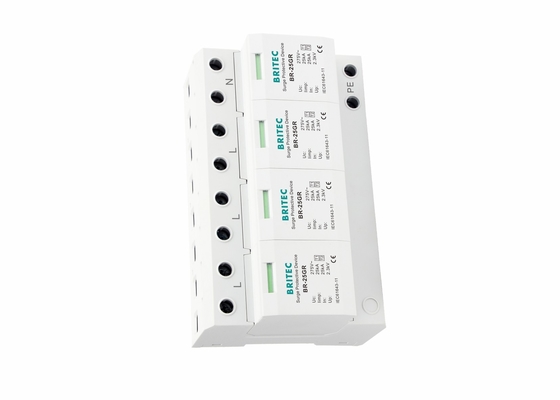

Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector

Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector

    • Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector
    • Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector
    • Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector
    • Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector
  • Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Certification: TUV
    Model Number: BR-25GR 4P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: Lightning Surge Arrester Type: Ac Surge Protector
    Material: Thermalplastic UL94-VO Class: SPD Classification According To EN61643-11 Type One
    Pole Number: 4P Protection: IP20
    Certificate: TUV/CE/ROHS/ISO9001 Tu: -40℃-80℃
    Application: Surge Protective Device Is Suitable For Single-phaseTN System

    25KA 3 Phase Type 1 Surge Protection Device TUV BR-25GR 4P



    Features:

    • High impulse current multi-layer three phase Iimp 25kA type 1 spark gap surge arrester.
    • Remote and visual indication of protection device life status.
    • 35mm Din rail in accordance with EN 61643-11 and IEC 61643-11.
    • Exclusive devices for TN-S earthing systems.
    • Operating state / fault indication by green / red indicator flag in the inspection window.
    • BR-25GR 4P is designed to discharge high current surges without any destruction of the installation.
    • This surge protective device is chararcterized by its capacity to withstand impulse current with
      10/350µs wave form which simulate direct impact coming from a natural lightning current.



    Technology characteristic:



    Specification BR-25GR 4P
    Item name Surge Arrester
    SPD dassification according to EN61643-11 Type 1 + Type 2
    SPD dassification according to EN61643-11 Class I + Class II

    Max continuous 0perating a.c. voltage           Uc

    385V
    Lightning impulse current (10/350µs)           limp 25kA
    Norminal discharge current (8/20µs)                In 25kA
    Maximum discharge current (8/20µs)          Imax 100kA
    Voltage protection level                                   Up ≤2.0kV
    Follow current extinguishing capability a.c.      lifi 5kA rms
    Max. backup fuse 315A gG
    Response time                                                 tA ≤100ns
    Operating temperature range                          Tu -40℃—80℃
    Cross-section area (Min.) 4mm2
    Cross-section area (Max.) 35mm2
    For mounting on 35mm Din rail
    Enclosure material Thermal plastic UL94-V0
    Degree of protection IP20



    Dimension:



    Spd Surge Protection Device For Home , BR-25GR Series Low Voltage Surge Protector



    Application:



    • Used to AC power line of house, bank, telecom tower and so on.
    • Application-optimised and prewired combined lightning current and surge arrester for TN-S systems.
    • Spark gap and varistor technology.
    • Used to Industry and automation, commercial and residential installations, telecom & IT & data centers,
      water treatment, smart grid & LV metering, photovoltaic and wind etc.

    Advantage:

    • Compact design.
    • With high discharge capacity.
    • Low residual voltage and quick response.

    Our Services:

    • 15 years global leading profession manufacture of electrical products surge arrester.
    • All products will be well packed before shipping.
    • Standard packaging, and you can also tell us your own requirements on packaging.
    • Faster delivery.
    • Individually Tested Prior to Shipment.

    Installation:

    • Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
    • Suitable as the first step of protection in incoming power supply panels and areas with greater
      exposure to the atmosphere, where installations are usually provided with an external lightning
      protection system.
    • Type 1 is placed at the entrance point of the installation, in the main distribution board for a global
      protection of this installation.
