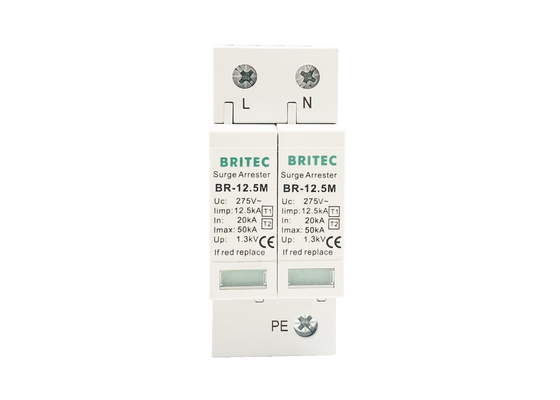

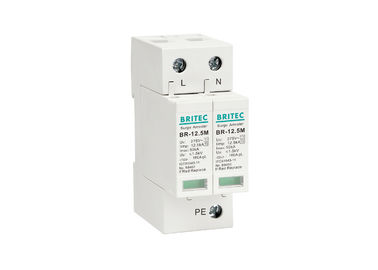

Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings

Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings

  • Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings
  • Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings
Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M-275 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 30-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Type: Ac Surge Protector
Material: Plastic Pole Number: 1P,2P,3P,4P
Uc: 275V Iimp: 12.5kA
Enclosure: Thermalplastic UL94-VO Certificate: CE/ROHS/ISO9001 Approved Standard
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Single-phase TN-S System
High Light:

industrial surge protection devices

,

type 1 surge protector



20kA 275V Single Phase 2P Type 1+2 B+C Surge Supresser BR-12.5M-275 2P



Commercial Type 1 Surge Protection Device Features:



Endurable,sustains thousands of strikes.

Status indication.

Uc 275V can be achieved.

Protection class: Type 1 + 2, Class I + II.

Pole number: 1P,2P,3P,4P.

Widely suitable for TN-S system, for protecting the buildings to avoid national defense.



Dimension:



Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings 0



Commercial Type 1 Surge Protection Device Product characteristics:



Specification BR-12.5M 275 2P
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1+2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage          Uc 275V
Lightning impulse current (10/350µs)         limp 12.5kA
Norminal discharge current (8/20µs)              In 20kA(Max:50kA)
Voltage protection level                                 Up ≤1.3kV

Voltage protection level 5kA                          Up

≤1.1kV

Max. backup fuse

160A gG

Response time                                               tA

≤25ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                        Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.)    35mm²

Enclosure material

Thermal plastic UL94-V0



Workshop:



Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings 2


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings 3


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


Commercial Type 1 Surge Protection Device 35 Mm Din For Protecting Buildings 4


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.



FAQ:

1. About samples?
A: Yes, samples are viable.



2. Are you factory ? Can you export the goods directly ?
A: Yes. We are trading and manufacturing company, we can export the goods by ourselves.



3. How to control the quality?
A: Full inspect by professional machine. Finished product and packaging inspection.



4. What is the trade terms and payment terms?
A: Trade terms: EXW, FOB, CIF. Payment term : T/T, 30% as deposit, 70% before shipping.



5. How about the time of delivery ?
A: Honestly, it depends on the order quantity and the season you place the order. Normally, the delivery will be around 20 days.



6. About the ability of develop new product?
A: We have a development team with excellent designers who will design new products according to client demand.
