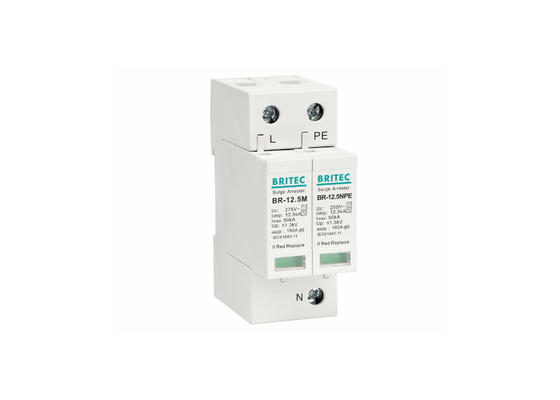

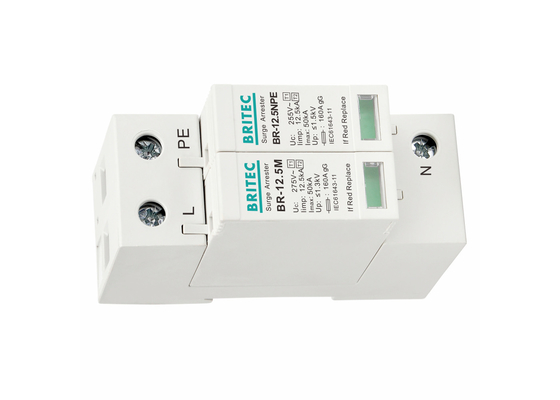

Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2

Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2

  • Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2
  • Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2
Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-12.5M-275 1+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 30-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Class I+II Surge Protective Device Type: Ac Surge Protector
Material: Plastic Pole Number: 1+1
Uc: 150V / 275V / 320V / 385V Iimp: 12.5kA
Enclosure: Thermalplastic UL94-VO Certificate: CE/ROHS/ISO9001 Approved Standard
Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Single-phase TN System
High Light:

industrial surge protection devices

,

ac surge protection device



12.5kA 275V Single Phase 1+1 Type 1+2 B+C Power Surge Suppressors TT TNC BR-12.5M-275 1+1



275V Power Surge Suppressor Features:



Endurable,sustains thousands of strikes.

Status indication.

Uc 275V can be achieved.

Protection class: Type 1 + 2, Class I + II.

Pole number: 1+1.

Widely suitable for TT system, for protecting the buildings to avoid national defense.



Dimension:



Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2 0



275V Power Surge Suppressor Product characteristics:



Specification BR-12.5M 275 1+1
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1+2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage          Uc 275V
Lightning impulse current (10/350µs)         limp 12.5kA
Norminal discharge current (8/20µs)              In 20kA(Max:50kA)
Voltage protection level                                 Up ≤1.3kV

Voltage protection level 5kA                          Up

≤1.1kV

Max. backup fuse

160A gG

Response time                                               tA

≤25ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                        Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermal plastic UL94-V0



Workshop:



Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2 2


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2 3


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


Power Surge Suppressor EN61643-11 Ac Lightning Protection Surge Protector Type 1+2 4


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.


FAQ:

How about your experience?
We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.

What's your advantage?
Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.

Is custom design package acceptable?
Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Could you do OEM for us?
Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

How about warranty?
2 years.

Could I buy 1pc sample first and small order?
Of course,support sample order, especially for new customers under certain condition.

How long make a sample?
7 days.

How does your company do regarding the quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
