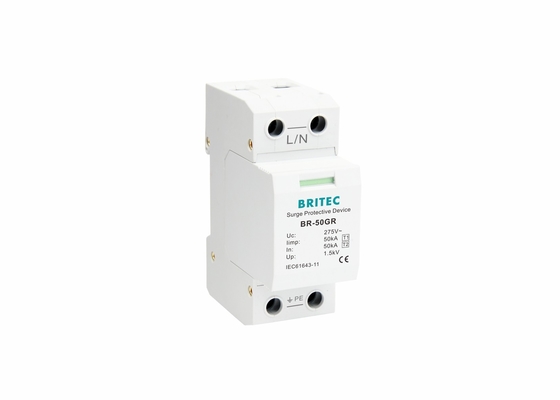

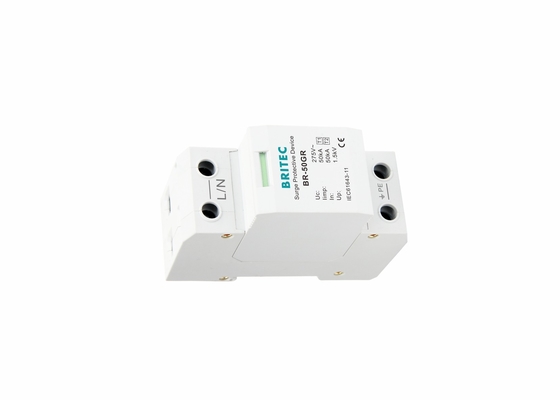

50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance

50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance

    • 50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance
    • 50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance
  • 50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: BR-50GR 1P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Price: USD 15-80 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Item Name: Type 1 Surge Protection Device Type: Ac Surge Protector
    Material: Plastic Class: SPD Classification According To EN61643-11 Type 1
    Pole Number: 1P,2P,3P,4P,1+1,3+1 Enclosure: Thermalplastic UL94-VO
    Protection: IP20 Certificate: TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
    Tu: -40℃-80℃ Application: Surge Arrester Is Suitable For Single-phaseTN System



    50kA single phase 1P Type 1 Class I surge protective device BR-50GR 1P TUV certified



    Features:



    • Endurable,sustains thousands of strikes
    • Status indication
    • Uc 385V can be achieved
    • Protection class: Type 1,Class I
    • Pole number:1P,2P,3P,4P,1+1,3+1
    • Widely suitable for single-phaseTN system,for protecting the buildings to avoid national defense



    Technology characteristic:






    Product Details:

    50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance

    Product characteristics:



    Specification BR-50GR 2P BR-50GR 1P
    Item name  Surge Arrester Surge Arrester
    SPD dassification according to EN61643-11 Type 1 Type 1
    SPD dassification according to EN61643-11 Class I Class I
    Max continuous 0perating a.c. voltage      Uc 385V 385V
    Lightning impulse current (10/350µs)      limp 50kA 50kA
    Norminal discharge current (8/20µs)           In 50kA 50kA
    Voltage protection level                              Up ≤2.5kV ≤2.5kV
    Follow current extinguishing capability a.c. lifi 3kA rms 3kA rms

    Max. backup fuse

    500A gG

    500A gG

    Response time tA

    ≤100ns

    ≤100ns

    For mounting on 35mm Din rail

    35mm Din rail

    Degree of protection IP20 IP20
    Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
    Certificate TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
    Logo       Customized logo with Decal/ Frosted/ Print are available as request

    Design ability

    We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)



    Workshop:


    Britec owns advanced test equipments and product line, perfect management, professional technical

    personnel and well-trained workers. Britec team keep developing newest product for our customer, that

    is why technical level of our products can be reached to the leading level, we also can help customer

    OEM/ODM.


    50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance


    Company Information:


    Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

    manufacture with many years experiences.We are providing quality products, competitive price, prompt

    delivery and excellent service, and looking forward to even greater cooperation with overseas trade

    based on mutual benefits.


    50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance


    Exhibition:


    Britec have strong sales team, our surge protection device are sold to many countries around the world.

    Europe and Asia are our main market. We would like to cooperate with global customers and help you

    success in your market.


    50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance


    Certifications:


    Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

    implements ISO9001 quality mangement system.


    50 Ka Industrial Type 1 Surge Protection Device BR-50GR 1P High Performance


    Product Uses:


    Britec have developed a wide range of products mainly covering requirements in the area of low voltage

    lightning protection, such as SPD for power system,PV system and data , etc. All these products have

    been widely applied in electronic system, computer network and security system, protection for power

    industry, petroleum chemical industry and national defense industry.

    FAQ

    01

    How about your experience?

    We have our own  factory and in-house test laboratory, our R&D department have more than

    15 years experiences.



    02

    What's your advantage?

    Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.

    Qulaity recognized :cooperate with transnational company.



    03

    Is custom design package acceptable?

    Inner box and out carton are made as per international standard.

    We can make packaging according to customer's need.



    04

    Could you do OEM for us?

    Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.



    05

    How about warranty?

    5-8 years.

    06

    Could I buy 1pc sample first and small order?

    Of course,support sample order, especially for new customers under certain condition.



    07

    How long make a sample?

     3-5 days.



    08

    How does your company do regarding the quality control?

    Quality is priority. We always attach great importance to quality control from the beginning to the end of

    the production. IQC inspects the components, the patrol inspection is done during production and all the

    goods to be tested 100% before leaving the factory..
