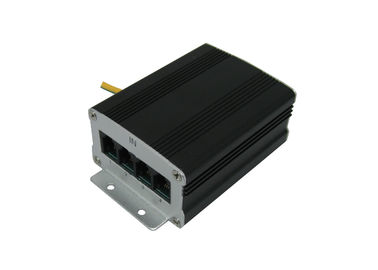

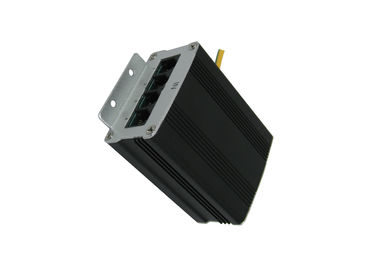

4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector

4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector

    • 4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector
    • 4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector
  • 4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector

    Product Details:

    Place of Origin: China
    Brand Name: BRITEC
    Model Number: BRRJ11L-2L 4ports

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Piece/Pieces
    Price: USD 40-80 Piece/Pieces
    Packaging Details: EXPORT PACKING
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: T/T
    Supply Ability: 50000 Piece/Pieces Month
    Contact Now
    Detailed Product Description
    Item Name: RJ11 Surge Protector Port No.: 4 Ports
    Material: Aluminium Alloy Standards: IEC 61643-21
    Line Number: 2 Line Tu: -40℃-80℃
    High Light:

    data line surge protector

    ,

    ac data surge protection



    4-port Data Surge Protection 110V 5kA 2-line RJ11 Surge Protector



    Characteristic:



    • • Operating voltage: 110V.
      • Nominal current: 0.5A.
      • Nominal discharge current: 5KA.
      • Aluminum alloy enclosure.
      • Number of ports RJ11: 4 ports.
      • It has RJ11 socket 2 line connectors for input / output.



    Product characteristics:



                         BRRJ11L-2L 4ports
    Test standards IEC 61643-21
    Nominal voltage                                                                   Un 110V
    Max. continuous operating d.c. voltage                                Uc 170V
    Max. continuous operating a.c. voltage                                Uc 120V
    Nominal current                                                                     IL 0.5A
    C2 Nominal discharge current (8/20us) per line                    In 5kA
    Voltage protection level [line-line]                                        Up ≤250V
    Voltage protection level [line-PG]                                         Up ≤600V
    Response time [line-line]                                                       tA ≤1ns
    Response time [line-PG]                                                       tA ≤100ns
    Operating temperature range                                               Tu -40℃…+80℃
    Connection input / output RJ11 socket 2 line
    Bandwidth 10 Mbps
    Insertion Loss ≤0.3dB
    Enclosure material aluminium alloy
    Degree of protection IP20



    Product detail:

    4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector 0

    Application:

    • Protects from voltage spikes and electrical surges, induced by lightning, power line parasites, and
      other factors.
    • Protects network or phone lines, modems, fax machines and answering machines against damage
      from lightning, electrostatic discharge and ground surges.
    • Protects against the effects of electrostatic discharge, faulty wiring and lightning.
    • Protect data and communications equipment against AC transients caused by lightning, electrostatic
      discharge and ground surges that can enter equipment from the signal lines or chassis ground.
    • Used for modems, telephone lines and answering or fax machines.

    Certifications:

    4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector 1

    Factory:

    4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector 2

    Company Profile:

    Britec Electric Wenzhou Co.,Ltd. was founded in 2003, with about 17 years experience on the SPD
    field, we have the professional team and experienced staff. Our products mainly include: AC surge
    arrester, DC power surge protector, data surge protection, LED lightning protective device, etc. With
    advanced technology, powerful production capacity and excellent service, our productions have been
    well known by domestic and overseas market. Our productions have a good repuation both at home
    and abroad with good quality and competitive price.

    4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector 3


    Packaging & Shipping:


    Packaging Details: export standard carton or as your requirement.

    Shipping Details: shipped within 15-30 days after payment.



    4- Port Ac Data Surge Protection 110V 5kA 2- Line RJ11 Surge Protector 4

    FAQ:


    Q1: Are you manufacturer or trader?

      A: We are manufacturer and trader.



    Q2: Do you provide samples?

      A: Yes, we could offer sample.



    Q3: What's your payment tearms?

      A: 30% deposit by T/T, balance before shipment.



    Q4: How long is your delivery time?

      A: Generally 15-30 working days after receiving deposit, if the pruducts out of stock delivery

          time should depend on the production schedule.



    Q5: Can we visit your factory?

      A: Warmly welcome.
